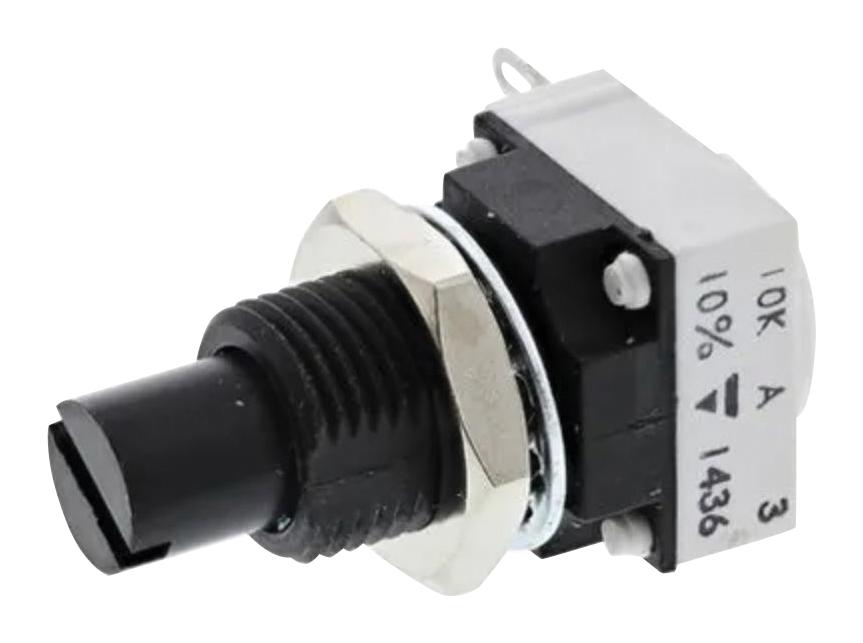

Vishay P11P1F0GGSY00103KA Modular Panel Potentiometer
The P11P1F0GGSY00103KA is a high dielectric strength, modular 12.5 mm panel potentiometer featuring a conductive plastic resistive element. It offers a robust, versatile design with multiple modules, shaft options, and terminal styles, suitable for demanding industrial applications. The potentiometer provides a 270° electrical travel, high insulation resistance (>10 MΩ), and a dielectric strength of 5000 V. It is RoHS compliant, sealed for panel and shaft, and supports custom configurations including rotary switch modules, detents, and center taps, making it ideal for precise control in complex electronic systems.
Vishay P11P1F0GGSY00103KA Modular Panel Potentiometer Specifications:
- Resistive Element: Conductive plastic (P11D) or Cermet (P11P)
- Electrical Travel: 270° + 10°
- Resistance Range: 470 Ω to 1 MΩ
- Power Rating: 0.25 W at +70°C per module
- Dielectric Strength: 5000 V across leads and bushing
- Insulation Resistance: >10 MΩ
- Mechanical Travel: 300° ± 5°
- Operating Temperature: -40°C to +100°C
- Sealing: IP64
- Rotational Life: 50,000 cycles
- Tolerance: ±20%, ±10%, or ±5%
- Mounting: Panel and shaft sealed, multiple shaft lengths and styles
- Support for rotary switches, detents, neutral modules, and center taps
- Compliance: RoHS
- Dimensions: 12.5 mm square, panel cutout 210 mm x 82 mm
- Connectors: Solder lugs, PCB pins, with optional support plates and support modules
Buy the Buy Vishay Sfernice P11P1F0GGSY00103KA Online
Purchase the Vishay Sfernice modular panel potentiometer P11P1F0GGSY00103KA online today. Designed for high dielectric strength and robustness, this 12.5 mm device offers versatile configurations with multiple modules, shaft options, and customizable features. It ensures high insulation resistance, sealed operation, and supports rotary switches, detents, and neutral modules. Ideal for demanding industrial and electronic applications, this RoHS-compliant potentiometer guarantees precise control, long service life, and reliable performance in complex systems—order now for fast delivery and professional quality.
Get Vishay Sfernice P11P1F0GGSY00103KA today—built for precision and long-lasting durability in electronic control systems.
Frequently Asked Questions
Where can I buy Vishay P11P1F0GGSY00103KA?
You can click on the BUY or RFQ button to purchase P11P1F0GGSY00103KA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part P11P1F0GGSY00103KA?
You can download the P11P1F0GGSY00103KA datasheet or visit the Vishay website for support.
Who is the manufacturer of P11P1F0GGSY00103KA?
Vishay
