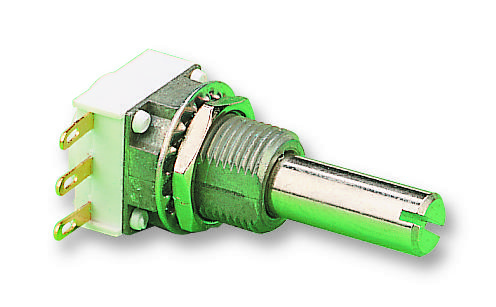

Vishay P11S1A0BGSY00504KA Modular Rotary Control System
The P11S and P11A are versatile, modular rotary potentiometers and switches designed for industrial, military, and audio applications. Featuring a 12.5 mm square single-turn control, these units offer multiple configurations including cermet or conductive plastic resistive elements, dual modules, push/push or momentary push switches, and concentric shafts. They are RoHS compliant, sealed IP64/IP60, with a broad resistance range, linear or non-linear tapers, and robust mechanical and environmental specifications suitable for demanding operational environments across various industries.
Vishay P11S1A0BGSY00504KA Modular Rotary Control System Specifications:
- Physical Dimensions: 12.5 mm square, shaft lengths from 16 mm to 50 mm, panel cutout diameter 8 mm to 22 mm, weights from 7 g to 9 g per module.
- Electrical Travel: 270° ± 10°, Mechanical Travel: 300°, End stop torque: 35 N·cm to 80 N·cm, Operating torque: 0.2 N·cm to 1.8 N·cm.
- Resistance Range: 1 kΩ to 1 MΩ for linear tapers, 20 Ω to 10 MΩ for non-linear tapers, Power Rating at 70°C: 0.25 W to 1 W depending on configuration.
- Environmental: Operating temperature -55°C to +125°C, Sealing IP64/IP60, Insulation Resistance > 1000 MΩ, Dielectric Strength: 1500 V.
- Switch Options: Rotary switches up to 2A, IP60 sealed, with actuation travel of 25°, switch life approx. 10,000 cycles, suitable for diverse control functions.
- Shaft Options: Standard, concentric, flatted, splined, custom designs; Bushings available in various sizes and locking options; RoHS, Halogen-Free compliant.
- Linear and non-linear tapers with specific linearity and interconformity options, resistance tolerance codes: +20%, +10%, +5%.
- Configuration flexibility includes multiple modules, detent positions up to 21, neutral or screen modules, special tapers, and custom design options.
Buy the Vishay P11S1A0BGSY00504KA – Reliable Rotary Control and Switch System for Industrial Applications
Discover the high-performance Vishay P11S1A0BGSY00504KA modular rotary control system for industrial, military, and audio applications. Featuring sealed IP64/IP60 design, customizable modules, dual shafts, multiple detent options, and switch functionalities, this system ensures durability and precision in demanding conditions. Its broad resistance range, adjustable tapers, and robust construction make it the ideal choice for complex control and switching needs. Order online today for reliable operation, flexible configurations, and long-term performance in manufacturing, automation, and professional audio systems.
Buy Vishay P11S1A0BGSY00504KA now and experience reliable modular rotary control and switching solutions for harsh environments.
Frequently Asked Questions
Where can I buy Vishay P11S1A0BGSY00504KA?
You can click on the BUY or RFQ button to purchase P11S1A0BGSY00504KA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part P11S1A0BGSY00504KA?
You can download the P11S1A0BGSY00504KA datasheet or visit the Vishay website for support.
Who is the manufacturer of P11S1A0BGSY00504KA?
Vishay
