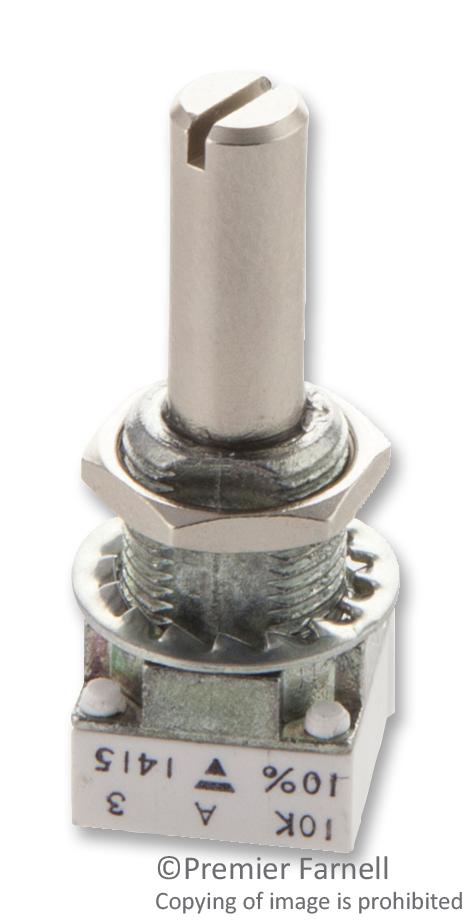

Vishay P11S1V0FLSY00103KA Rotary Potentiometer
The P11 series features modular, robust rotary potentiometers and switch modules suitable for industrial, military, and audio applications. Available in cermet or conductive plastic elements, these products offer precise single-turn adjustment in compact designs with optional switch configurations, concentric shafts, and custom options. They provide sealing IP64/IP60, high durability, and a wide variety of mounting and shaft configurations, enabling versatile integration into complex electronic control systems. Suitable for precise adjustment, switching, and control in demanding environments, these potentiometers incorporate a variety of electrical and mechanical specifications for reliable performance.
Vishay P11S1V0FLSY00103KA Rotary Potentiometer Specifications:
- Mechanical travel: 300° ± 5°
- Electrical travel: 270° ± 10°
- Power rating at 70°C: 0.5 W for linear taper, 0.5 W for non-linear taper, 1 W for some models
- Resistance range: 1 kΩ to 1 MΩ (linear and non-linear taper)
- Resistance tolerance: +20% standard, on request +10%, +5% (cermet only)
- Taper: linear and non-linear options available
- End resistance (typical): 20Ω
- Contact resistance variation: 1% for linear tapers, 2-3Ω for non-linear
- Insulation resistance: >108 MΩ
- Dielectric strength: 1500 Vams min.
- Vibration resistance: 0.75 mm or 10 G for 6 hours
- Environmental temperature range: -55°C to +125°C
- Sealing: IP64/IP60
- Mechanical endurance: up to 50,000 cycles
- Operating torque: 0.4 to 1.8 Nm depending on configuration
- Mounting options include panel seal, concentric shafts, and custom modules
Buy the Vishay Series P11S Rotary Potentiometer: P11S1V0FLSY00103KA
Enhance your electronic control projects with Vishay P11S series rotary potentiometers, offering precise adjustment, durable IP64/IP60 sealing, and various shaft configurations. Suitable for industrial, military, and professional audio applications, these modules provide easy integration, seamless switching options, and high endurance over 50,000 cycles. Whether you need linear or non-linear taper options, concentric shafts, or custom designs, these versatile potentiometers guarantee reliable performance under demanding conditions. Order online now for fast delivery and expert support.
Buy Vishay P11S1V0FLSY00103KA potentiometer now and experience unmatched reliability and performance for industrial and audio control systems.
Frequently Asked Questions
Where can I buy Vishay P11S1V0FLSY00103KA?
You can click on the BUY or RFQ button to purchase P11S1V0FLSY00103KA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part P11S1V0FLSY00103KA?
You can download the P11S1V0FLSY00103KA datasheet or visit the Vishay website for support.
Who is the manufacturer of P11S1V0FLSY00103KA?
Vishay
