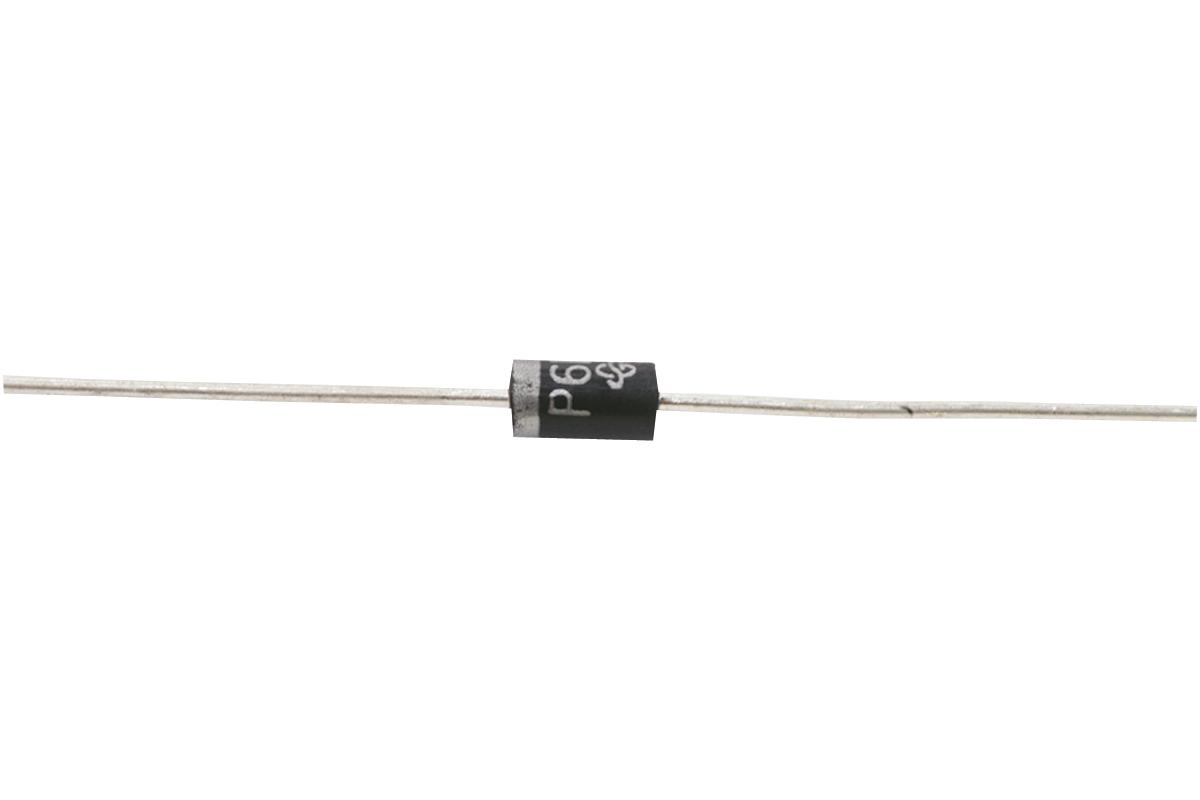

Vishay P6KE62CAE354 Transient Voltage Suppressor Diode
The P6KE series Transient Voltage Suppressor TVS diode delivers 600W peak pulse power with a 10/1000 µs waveform and 0.01% duty cycle, ideal for sensitive electronics protection. It features a glass passivated chip junction, available in uni- and bi-directional types, with excellent clamping capability, very fast response time, and low surge resistance. Suitable for automotive, industrial, telecommunications, and consumer applications, it operates from -55°C to 175°C, with a compact DO-204AC package, solderable leads, and RoHS compliance, ensuring reliable transient suppression and circuit safeguarding.
Vishay P6KE62CAE354 Transient Voltage Suppressor Diode Specifications:
- Peak pulse power: 600W with 10/1000 µs waveform
- Operating temperature range: -55°C to 175°C
- Case: DO-204AC, molded epoxy over passivated chip
- Polarity: Unidirectional, bi-directional
- Maximum clamping voltage: 70V to 459V depending on model
- Leakage current: typically low at maximum working voltage
- Terminal: Matte tin plated solderable leads
- RoHS compliant and AEC-Q101 qualified
- Dimensions: 1.0 inch (25.4 mm) length, 0.230 inch (6.8 mm) diameter
- Response time: Very fast, capable of reacting within nanoseconds
- Maximum surge current: 100A at 8.3 ms single half sine-wave
- Application: Electronics protection against transients, lightning, inductive load switching
Buy the Vishay P6KE62A – Reliable Transient Voltage Suppressor for Industrial Applications
Protect your sensitive electronic components with confidence by ordering the Vishay P6KE series TVS diode online. Designed for high surge capability, fast response, and reliable transient suppression, these devices are ideal for automotive, industrial, communication, and consumer electronics. Offering a compact package with RoHS compliance and AEC-Q101 qualification, they ensure durability and performance in demanding environments. Secure your supply chain today by purchasing online and experience dependable protection for your electronic systems against voltage transients and lightning strikes.
Order your Vishay P6KE62A series TVS diode today and enhance your circuit protection with fast acting, high surge capability components designed for industrial robustness.
Frequently Asked Questions
Where can I buy Vishay P6KE62CAE354?
You can click on the BUY or RFQ button to purchase P6KE62CAE354 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part P6KE62CAE354?
You can download the P6KE62CAE354 datasheet or visit the Vishay website for support.
Who is the manufacturer of P6KE62CAE354?
Vishay
