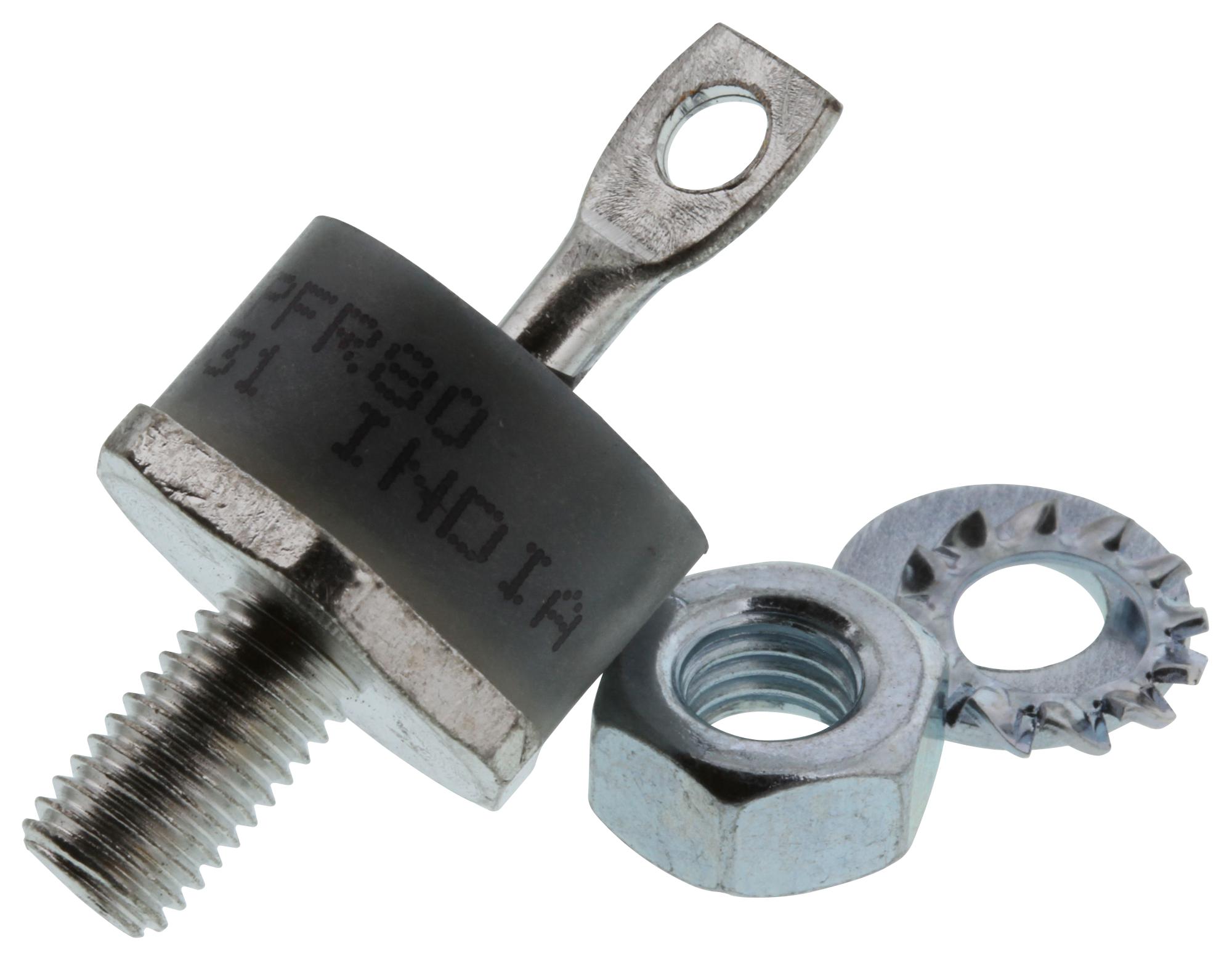

Vishay VS80PFR80 Power Recovery Diode
The VS-80PFR80 is a robust high surge current recovery diode designed for demanding industrial applications including battery chargers, power supplies, motor drives, and welding equipment. It features a low thermal resistance, stud reverse polarity configuration with the anode connected to the stud, and operates efficiently within a temperature range of -55°C to 180°C. Its strong construction ensures high surge current capability, making it suitable for power management, machine tool controls, and power conversion systems. The diode is RoHS compliant and engineered for reliable performance in high-stress electrical environments.
Vishay VS80PFR80 Power Recovery Diode Specifications:
- Maximum operating and storage temperature: -55°C to 180°C
- Peak repetitive reverse voltage: 80 V
- Maximum surge current (non-repetitive): 1260 A at 10 ms
- Forward current: 80 A average, 126 A RMS
- Maximum forward voltage drop: 1.40 V at 220 A
- Thermal resistance junction to case: 0.30 K/W
- Case style: DO-203AB (DO-5)
- Mounting torque: 42 in-lb
- Weight: 0.56 oz.
- Reverse polarity (stud version), RoHS compliant, UL pending approval.
- Dimensions: 17.25 mm max length, 6.45 mm min. width, 12.2 mm max. height. Suitable for pass-through holes and mounting on heatsinks.
Buy the Vishay Series 80PF(R) Power Diode: VS80PFR80
Order the Vishay VS80PFR80 power recovery diode online today to ensure high surge current handling, broad temperature range, and reliable operation for power supplies, motor drives, and welding equipment. This diode’s low thermal resistance and robust construction make it ideal for industrial applications demanding durability and high performance. Enhance your system's efficiency with an easy online purchase of this high-quality, RoHS-compliant diode designed to meet the toughest electrical challenges. Secure your stock now for reliable power management.
Buy Vishay VS80PFR80 power recovery diode now and experience unmatched surge current capability and thermal efficiency for your industrial applications.
