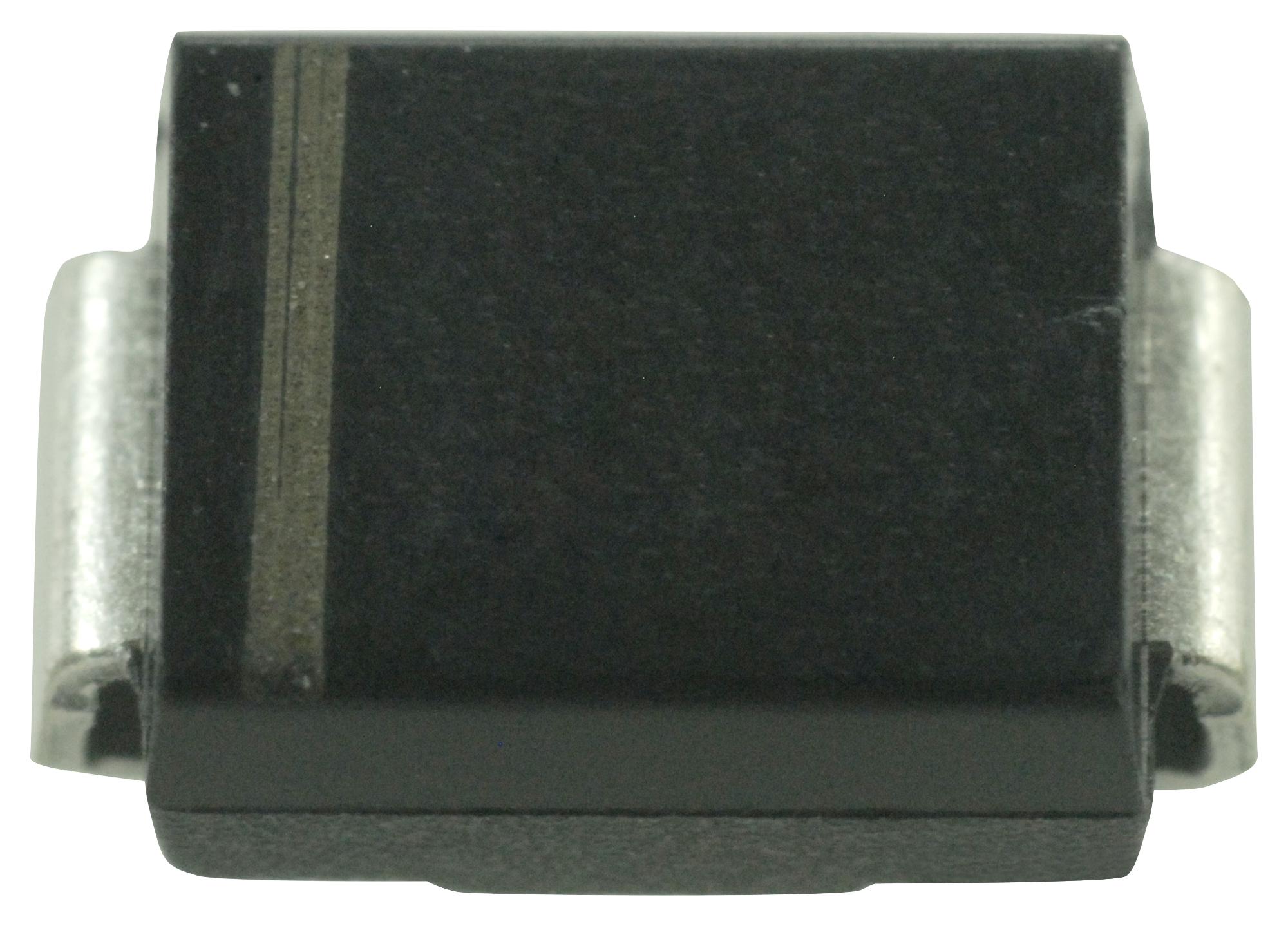

Vishay P6SMB180AHM3AH Transient Voltage Suppressor
The P6SMB180AHM3AH is a surface-mount transient voltage suppressor (TVS) diode designed for sensitive electronic circuit protection against voltage transients induced by lightning, inductive load switching, and other voltage surges. Featuring a low profile SMB package, it provides excellent clamping capability, fast response time, and a peak pulse power of 600 W with a peak pulse current of 171 A. Suitable for automotive, industrial, and telecommunication applications, this device ensures reliable transient suppression and circuit protection under various environmental conditions.
Vishay P6SMB180AHM3AH Transient Voltage Suppressor Specifications:
- Package: SMB (D0-214AA)
- Peak Power Dissipation: 600 W (10/1000 us waveform)
- Peak Pulse Current: 171 A (8.3 ms surge)
- Clamping Voltage: 8.55 V (P6SMB180AHM3AH)
- Maximum Operating Junction Temperature: +150°C
- Storage Temperature Range: -55°C to +150°C
- Dimensions: 0.180 inches (4.57 mm) height, 0.220 inches (5.59 mm) width, 0.077 inches (1.95 mm) length
- Terminals: Solderable, matte tin plated leads
- Material: Glass passivated chip junction, RoHS-compliant
- Polarity: Unidirectional, cathode band indicates cathode end
- Thermal Resistance Junction to Ambient: 100°C/W
- Operating Temperature Range: -65°C to +150°C
- Reliability: Meets RoHS, AEC-Q101 qualified, UL94V-0 flammability rating
Buy the Buy Vishay Transient Voltage Suppressor Part Number P6SMB180AHM3AH Online
Secure your electronic circuits with the Vishay P6SMB180AHM3AH transient voltage suppressor. This reliable, high-performance TVS diode offers 600 W peak pulse power, fast response time, and excellent clamping capability. Ideal for automotive, industrial, and communication systems, it safeguards sensitive components against lightning-induced surges and inductive load transients. Its compact SMB package, RoHS compliance, and robust construction make it easy to implement in densely packed circuits. Ensure dependable transient suppression—order online today to enhance your project's safety and reliability.
Order your Vishay P6SMB180AHM3AH SeriesTVS diode today and ensure robust circuit protection against voltage transients in your electronic applications.
Frequently Asked Questions
Where can I buy Vishay P6SMB180AHM3AH?
You can click on the BUY or RFQ button to purchase P6SMB180AHM3AH from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part P6SMB180AHM3AH?
You can download the P6SMB180AHM3AH datasheet or visit the Vishay website for support.
Who is the manufacturer of P6SMB180AHM3AH?
Vishay
