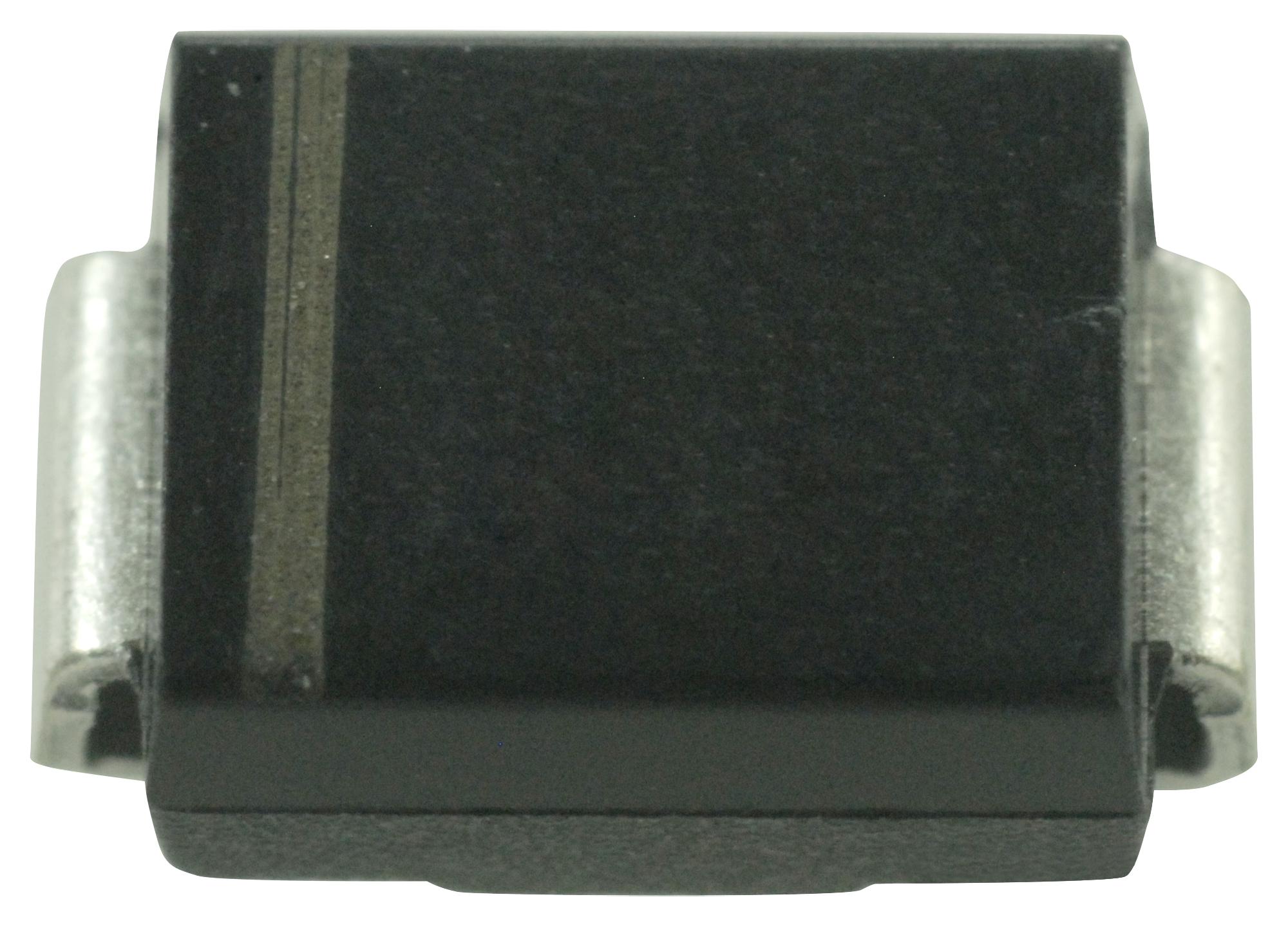

Vishay P6SMB200AHM3AH Transient Voltage Suppressor Diode
The P6SMB200AHM3AH is a surface-mount transient voltage suppressor (TVS) diode designed for sensitive electronics protection in industrial, automotive, and telecommunication applications. It offers a peak pulse power of 600 W with a fast response time, ideal for handling voltage transients such as inductive load switching and lightning surges. The device features a glass passivated chip junction, low profile SMB package, and complies with RoHS and AEC-Q101 standards, ensuring durability and reliability in demanding environments.
Vishay P6SMB200AHM3AH Transient Voltage Suppressor Diode Specifications:
- Peak Pulse Power: 600 W with a 10/1000 us waveform
- Maximum Surge Current: 100 A (8.3 ms single half sine-wave)
- Peak Power Dissipation: 5.0 W on infinite heatsink at 50°C
- Operating Junction Temperature: -65°C to +150°C
- Case: SMB (D0-214AA) package with Mounting Pad 0.085 (2.159) MAX.
- Polarity: Unidirectional, bidirectional (CA suffix), cathode band for unidirectional
- Thermal Resistance Junction to Ambient: 100°C/W, Junction to Lead: 20°C/W
- Material: Glass passivated chip junction, RoHS and halogen-free options available
- Solderable leads complying with J-STD-002, JESD 22-B102
- Compliance: RoHS, AEC-Q101 qualified for automotive applications
Buy the VISHAY P6SMB200AHM3AH – Reliable Transient Voltage Suppressor for Industrial Applications
Secure your sensitive electronics by purchasing the Vishay P6SMB200AHM3AH transient voltage suppressor online today. Designed for robust performance, it handles peak pulse power of 600 W and offers fast response to voltage transients. Ideal for industrial, automotive, and telecommunication equipment, this low profile SMB package ensures easy automation placement and durability. With RoHS compliance and AEC-Q101 qualification, it guarantees reliable surge protection, safeguarding your circuits against lightning, inductive loads, and switching transients. Buy now to enhance your project’s reliability and safety.
Order your Vishay Series P6SMB200AHM3AH TVS diode today and ensure your electronics are protected with dependable surge suppression in harsh environments.
Frequently Asked Questions
Where can I buy Vishay P6SMB200AHM3AH?
You can click on the BUY or RFQ button to purchase P6SMB200AHM3AH from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part P6SMB200AHM3AH?
You can download the P6SMB200AHM3AH datasheet or visit the Vishay website for support.
Who is the manufacturer of P6SMB200AHM3AH?
Vishay
