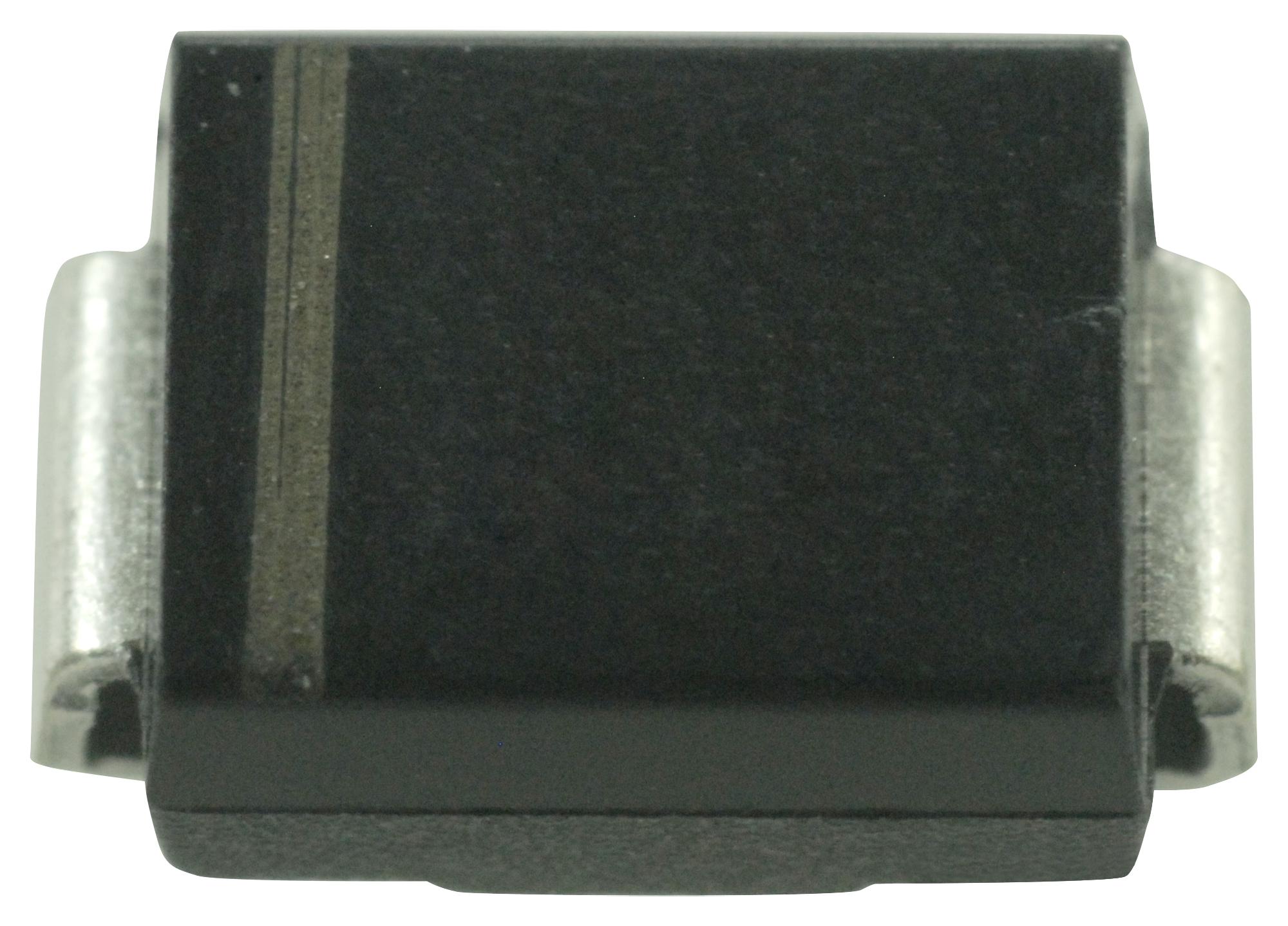

Vishay P6SMB27AHM3AH Transient Voltage Suppressor
The P6SMB series offers surface-mount transient voltage suppressors (TVS) in SMB packages, capable of handling peak pulse power of up to 600 W. These devices provide fast response, excellent clamping, and low incremental surge resistance, making them ideal for protecting sensitive electronics against voltage transients caused by inductive load switching and lighting. Suitable for applications in consumer, industrial, telecom, and automotive electronics, they feature glass passivated junctions and RoHS compliance, ensuring reliability and environmental safety in compact packaging.
Vishay P6SMB27AHM3AH Transient Voltage Suppressor Specifications:
- Package: SMB (D0-214AA)
- Peak Power Dissipation: 600 W with 10/1000 μs waveform
- Peak Pulse Current: 100 A (unidirectional), 200 A (bidirectional models)
- Voltage Range: Vw 5.8 V to 459 V, Vina 5.8 V to 185 V
- Temperature Range: -55°C to +150°C
- Soldering Terminals: Matte tin plated leads, compliant with J-STD-002 and JESD 22-B102
- Mounting: Surface-mount, in RoHS-compliant small footprint package, suitable for automated placement
- Thermal Resistance Junction to Ambient: 100 °C/W, Junction to Lead: 20 °C/W
- Mechanical Dimensions: Length approximately 0.77 inches (19.57 mm), width 0.60 inches (15.24 mm), height approx. 0.22 inches (5.59 mm)
- Certifications: RoHS, AEC-Q101 qualified (optional for automotive grade devices)
Buy the Vishay Series P6SMB Transient Voltage Suppressor: P6SMB27AHM3AH
Secure your electronic devices with the Vishay P6SMB27AHM3AH transient voltage suppressor, delivering 600 W peak pulse power in a compact SMB package. Its fast response time and excellent clamping capability protect sensitive circuits from voltage transients caused by inductive loads and switching surges. Suitable for industrial, telecom, and automotive electronics, this device ensures reliable performance under harsh conditions. Equipped with RoHS compliance and robust mechanical design, it’s your ideal choice for efficient transient suppression and enhanced device longevity.
Buy Vishay P6SMB27AHM3AH now and experience unmatched reliability and performance in sensitive electronics protection.
Frequently Asked Questions
Where can I buy Vishay P6SMB27AHM3AH?
You can click on the BUY or RFQ button to purchase P6SMB27AHM3AH from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part P6SMB27AHM3AH?
You can download the P6SMB27AHM3AH datasheet or visit the Vishay website for support.
Who is the manufacturer of P6SMB27AHM3AH?
Vishay
