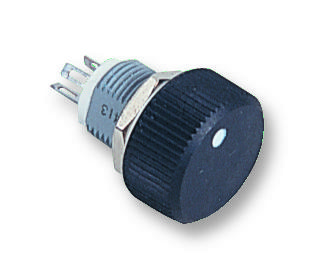

Vishay P16NP102MAB15 Panel Potentiometer
The P16 series includes panel-mounted potentiometers designed for professional and industrial applications, featuring low profile, sealed design, and knob options for precise control. The models incorporate a cermet or conductive plastic resistive element, with a 270° travel and IP67 sealing for durability in harsh environments. The P16 and PA16 versions offer high dielectric strength of 2500 V, compact form factors, and are suitable for various control systems. They are tested for durability with a lifespan of 50,000 cycles and meet RoHS compliance standards, ensuring long-lasting performance.
Vishay P16NP102MAB15 Panel Potentiometer Specifications:
- Resistive element: Cermet for P16, Conductive plastic for PA16
- Electrical travel: 270° + 10°
- Power rating: 1 W at 40°C for P16, 0.5 W for PA16
- Dielectric strength: 2500 Vams
- Resistance range: 22kΩ to 22MΩ depending on model and taper
- Tolerance: ±20%, custom options ±10%
- Mechanical travel: 300° + 5°
- End stop torque: 25 N·cm maximum
- Operating temperature: -40°C to +125°C for metal knob, -40°C to +85°C for plastic knob
- Sealing: IP67, panel sealed
- Weight: approximately 45 grams
- Mounting thread: M10 x 0.75
- Max. mounting nut torque: 180 N·cm
- Environmental: Suitable for harsh industrial and control environments
Buy the Buy Vishay Sfernice P16 Part Number P16NP102MAB15 Online
Purchase the Vishay Sfernice P16NP102MAB15 panel potentiometer online for reliable performance in industrial and professional control systems. Featuring a sealed IP67 design, this potentiometer offers excellent durability against dust and moisture, making it ideal for harsh environments. Its 270° travel allows precise adjustments, and with options for metal or plastic knobs, it caters to various aesthetic preferences. Engineered for long lifespan with 50,000 cycles, it's compliant with RoHS standards. Buy online now for fast delivery and secure shopping.
Get Vishay Sfernice P16NP102MAB15 today—built for precision with sealed IP67 design and long-lasting durability in industrial controls.
Frequently Asked Questions
Where can I buy Vishay P16NP102MAB15?
You can click on the BUY or RFQ button to purchase P16NP102MAB15 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part P16NP102MAB15?
You can download the P16NP102MAB15 datasheet or visit the Vishay website for support.
Who is the manufacturer of P16NP102MAB15?
Vishay
