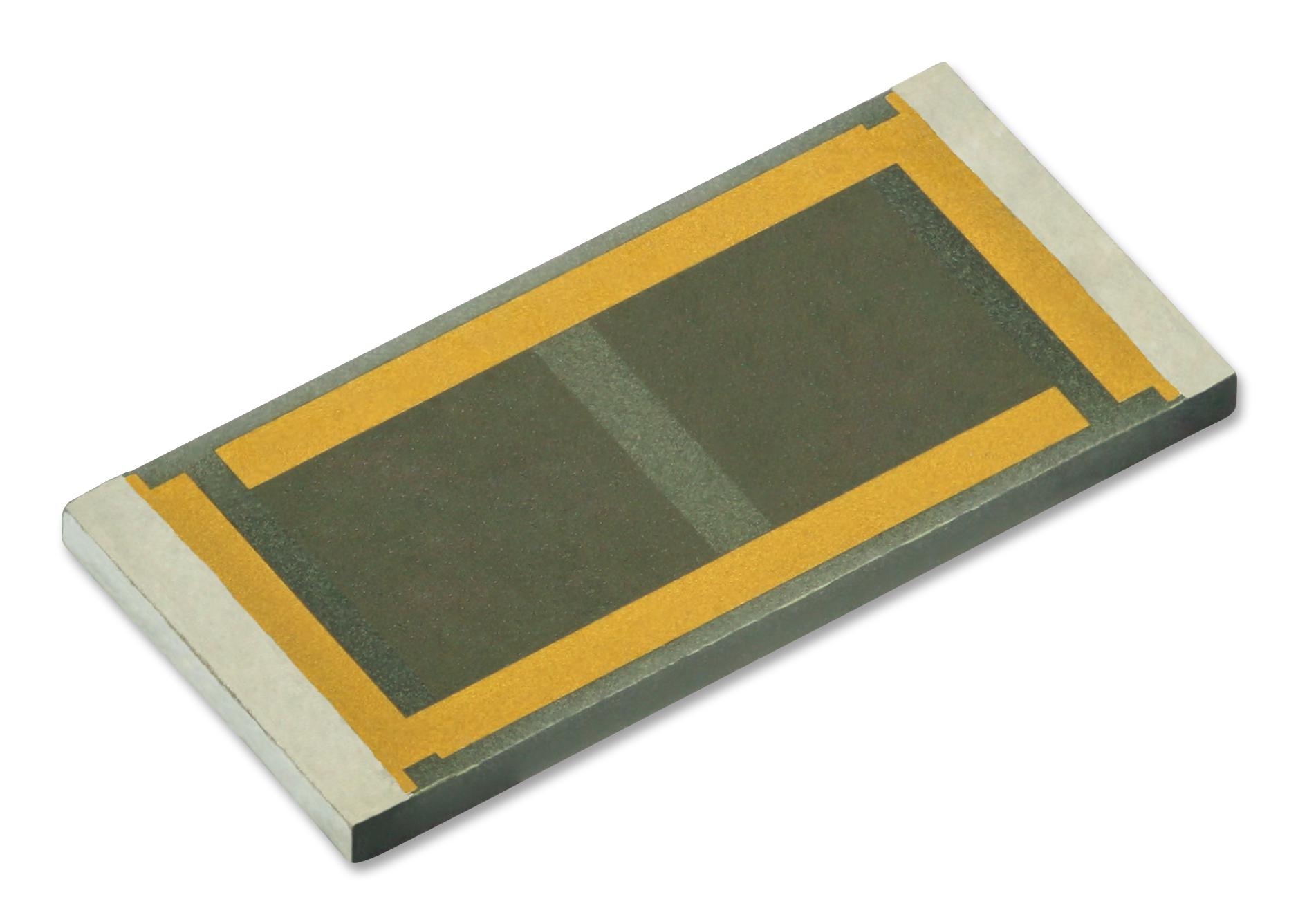

Vishay PCAN0805E1000BST3 High Power Aluminum Nitride Chip Resistor
The PCAN series chip resistors from Vishay Dale are high power aluminum nitride surface mount components designed for efficient heat dissipation with power ratings up to 6 W. They feature passivated nichrome resistive elements, precision tolerance to ±0.1%, and a TCR of +25 ppm/°C. Suitable for power supplies, switching, and braking systems, these resistors use aluminum nitride substrates with enlarged backside terminations to minimize thermal resistance, ensuring reliable performance in high-temperature environments from -55°C to +150°C. Compliant with RoHS standards, they offer excellent stability and flame resistance UL 94 V-0.
Vishay PCAN0805E1000BST3 High Power Aluminum Nitride Chip Resistor Specifications:
- Power rating: up to 6.0 W at +70°C
- Resistance range: 2 Ω to 30.1 kΩ
- Tolerance: ±0.1% (others: 0.25%, 0.5%, 1.0%, 5.0%)
- Temperature coefficient: +25 ppm/°C
- Operating temperature range: -55°C to +150°C
- Material: Passivated nichrome on aluminum nitride substrate
- Flame resistant UL 94 V-0
- Dimensions (approximate): 0805 size, length 0.080 inches, width 0.050 inches, thickness 0.016 inches
- Max working voltage: 75V (0805), 100V (1000), 200V (1206, 2512)
- RoHS compliant
Buy the Vishay Series PCAN Aluminum Nitride High Power Resistor: PCAN0805E1000BST3
Invest in the Vishay PCAN series high power aluminum nitride chip resistor today. With power ratings up to 6 W, ±0.1% tolerance, and a TCR of +25 ppm/°C, this surface-mount component offers excellent thermal management and stability for demanding power supply, switching, and braking system applications. Its aluminum nitride substrate and enlarged backside terminations help dissipate heat efficiently, ensuring consistent operation in environments from -55°C to +150°C. RoHS compliant and flame resistant, this resistor is ideal for high-temperature electronic designs.
Buy Vishay high power aluminum nitride surface mount resistor PCAN0805E1000BST3 now and ensure reliable performance in power supply and switching applications.
Frequently Asked Questions
Where can I buy Vishay PCAN0805E1000BST3?
You can click on the BUY or RFQ button to purchase PCAN0805E1000BST3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PCAN0805E1000BST3?
You can download the PCAN0805E1000BST3 datasheet or visit the Vishay website for support.
Who is the manufacturer of PCAN0805E1000BST3?
Vishay
