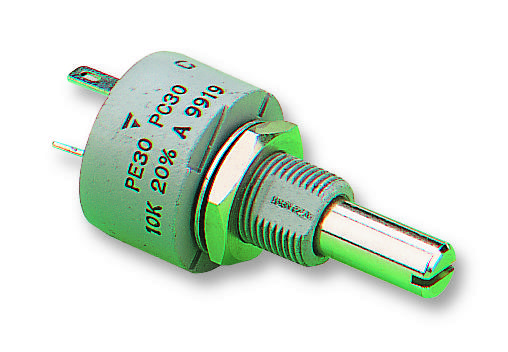

Vishay PE30L0FG223KAB Sealed Potentiometer
The high-quality sealed potentiometer features a cermet resistive element, 270° travel, and a robust IP67 sealing standard, making it ideal for harsh environments. It offers a power rating of 3 W at 70°C, low temperature coefficient of 150 ppm/°C, and options including center detent, panel sealing, and custom shafts. With resistances from 22 Ω to 10 MΩ and a maximum voltage of 300 V, this durable component ensures precise adjustment with a mechanical travel of 300°, suitable for professional and military-grade applications.
Vishay PE30L0FG223KAB Sealed Potentiometer Specifications:
- Mechanical Travel: 300° + 5°
- Power Rating: 3 W at 70°C
- Resistance Range: 22 Ω to 10 MΩ
- Resistance Tolerance: ±20% (standard), ±10% (on request)
- Electrical Travel: 270° + 10°
- Linear Taper: 22 kΩ to 10 MΩ
- Logarithmic Taper: 1 kΩ to 2.2 MΩ
- Temperature Coefficient: Typical 150 ppm/°C
- Dielectric Strength: 2500 V RMS
- Insulation Resistance: > 10⁴ MΩ
- Climatic Category: 55/125/56
- Sealing: Fully sealed, IP67
- Environmental Range: -55°C to +125°C
- Operating Torque: Max 4.25 oz.-inch
- End Stop Torque: Max 10.51 oz.-inch
- Material: Cermet resistive element, Sn terminals
- Weight: 23-32 grams
- Mounting: M10 x 0.75 thread, panel mount options
- Shock & Vibration: 50 g’s at 11 ms, 0.75 mm amplitude
- Life Cycle: 10,000 actuations
Buy the Vishay PE30L0FG223KAB – Reliable Precision Potentiometer for Industrial Applications
Order the Vishay PE30L0FG223KAB sealed potentiometer online now and ensure reliable, precise resistance adjustments in harsh environments. This robust component features a full IP67 sealing standard, 270° travel, resistances from 22Ω to 10 MΩ, and a power rating of 3 W at 70°C. Ideal for military-grade and professional use, it offers options including panel sealing, custom shafts, and center detent. With a long cycle life and durable construction, buying online guarantees quick delivery for your critical electronic applications.
Get Vishay PE30L0FG223KAB today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy Vishay PE30L0FG223KAB?
You can click on the BUY or RFQ button to purchase PE30L0FG223KAB from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PE30L0FG223KAB?
You can download the PE30L0FG223KAB datasheet or visit the Vishay website for support.
Who is the manufacturer of PE30L0FG223KAB?
Vishay
