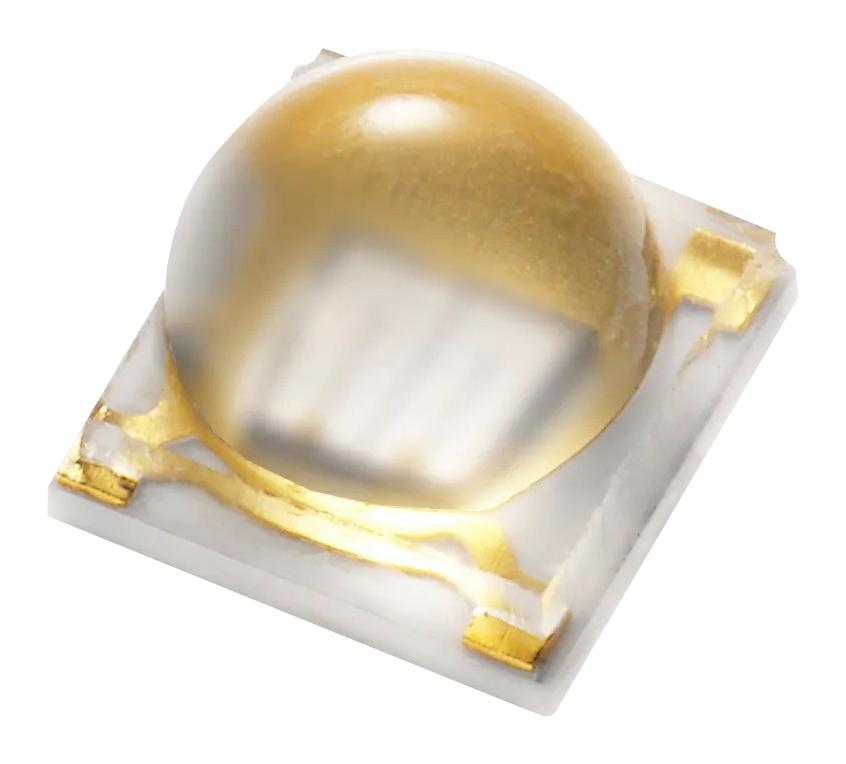

Vishay VLMU3511365130 High Power UV LED
Vishay VLMU3511-365-130 is a high power UV LED with a ceramic SMT package and silicone lens, emitting light in the 360-370 nm range. Designed for long life and high radiant power up to 1325 mW at 600 mA, it features InGaN die, gold-plated leads, and a wavelength of approximately 367 nm. Suitable for industrial curing, photocatalytic purification, and counterfeit detection, this LED offers a radiant half-angle of +65°. It is compliant with safety standards, with a maximum junction temperature of +95°C, and supports reflow soldering with a robust package for demanding applications.
Vishay VLMU3511365130 High Power UV LED Specifications:
- Package: SMD ceramic high power with silicone lens
- Dimensions: 3.45 x 3.45 x 2.1 mm
- Peak wavelength: 367 nm (typical)
- Radiant power: up to 1325 mW at 600 mA
- Forward voltage: 3.6 V (typical)
- Forward current: up to 700 mA
- Maximum junction temperature: +95°C
- Operating temperature range: -40°C to +85°C
- Storage temperature range: -55°C to +95°C
- Solder temperature: 260°C for reflow
- Electrostatic discharge (ESD): 2000 V
- Angle of half intensity: +65°
- Maximum forward current: 700 mA
- Power dissipation: 28 W
- InGaN die, gold-plated leads
Buy the Vishay Series High Power UV LED: VLMU3511-365-130
Purchase the Vishay High Power UV LED VLMU3511-365-130 online today and benefit from its high radiant power up to 1325 mW at 600 mA. This UV LED with precise wavelength 360-370 nm and a durable ceramic package is ideal for curing, photocatalytic purification, counterfeit detection, and other industrial applications. Designed for long life, with robust safety features including a maximum junction temperature of +95°C, it supports reflow soldering and meets strict safety standards. Order now to ensure reliable performance in your critical projects.
Order your Vishay Series High Power UV LED VLMU3511-365-130 today and enhance your industrial curing, purification, and detection projects with reliable quality.
