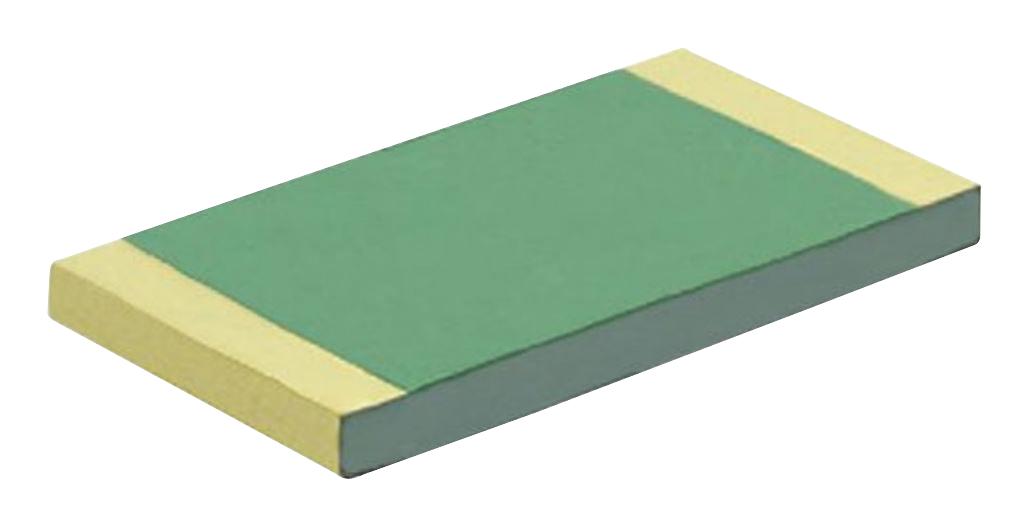

Vishay PEP0603Y1001BNTA Thin Film Power Resistor
The PEP series high-precision wraparound, power-enhanced thin film chip resistors are designed for high power applications, offering low noise, superior stability, low temperature coefficient of resistance, and low voltage coefficient. The resistive thin film layer can withstand temperatures as high as 250°C, with robustness primarily dependent on the terminations and solder joints. The PEP series is ideal for customers seeking smaller device sizes with the same power ratings. Features include a load life stability of 0.1% typical (up to 0.35% maximum) at 2000 hours at rated power and 70°C, very low noise, sulfur resistance per ASTM B809-95 humid vapor test, and tin-silver over gold barrier terminations.
Vishay PEP0603Y1001BNTA Thin Film Power Resistor Specifications:
- Size options: 0402, 0603, 0805, 1206
- Resistance range: 39Ω to 900kΩ
- Load power: 0.125W (0402), 0.320W (0603), 0.500W (0805), 0.660W (1206)
- Temperature coefficient: ±5 ppm/°C to ±50 ppm/°C depending on model
- Operating temperature: -55°C to +155°C
- Film: Nickel chromium based alloy
- Termination: Tin silver over nickel barrier or gold over nickel barrier
- Resistance stability: <0.1% typical (0.35% max) after 2000 hours at 70°C
- Humidity resistance: ASTM B809-95 humid vapor test
- Dimensions: 0402 - 1.00mm x 0.60mm, 0603 - 1.52mm x 0.85mm, 0805 - 1.91mm x 1.27mm, 1206 - 3.06mm x 1.60mm
Buy the Vishay Series PEP Thin Film Chip Resistors: PEP0603Y1001BNTA
Order Vishay PEP0603Y1001BNTA thin film power resistor online today to experience high stability, low noise, and excellent resistance to sulfur and humidity. Designed for high power applications, this precision resistor offers a load life stability of 0.1% at 2000 hours and withstands temperatures up to 250°C. Its compact size makes it ideal for space-constrained designs, ensuring reliable performance and durability in demanding environments. Purchase now for efficient solutions in high power electronic systems.
Get Vishay PEP0603Y1001BNTA today—built for high power, stability, and long-lasting durability.
Frequently Asked Questions
Where can I buy Vishay PEP0603Y1001BNTA?
You can click on the BUY or RFQ button to purchase PEP0603Y1001BNTA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PEP0603Y1001BNTA?
You can download the PEP0603Y1001BNTA datasheet or visit the Vishay website for support.
Who is the manufacturer of PEP0603Y1001BNTA?
Vishay
