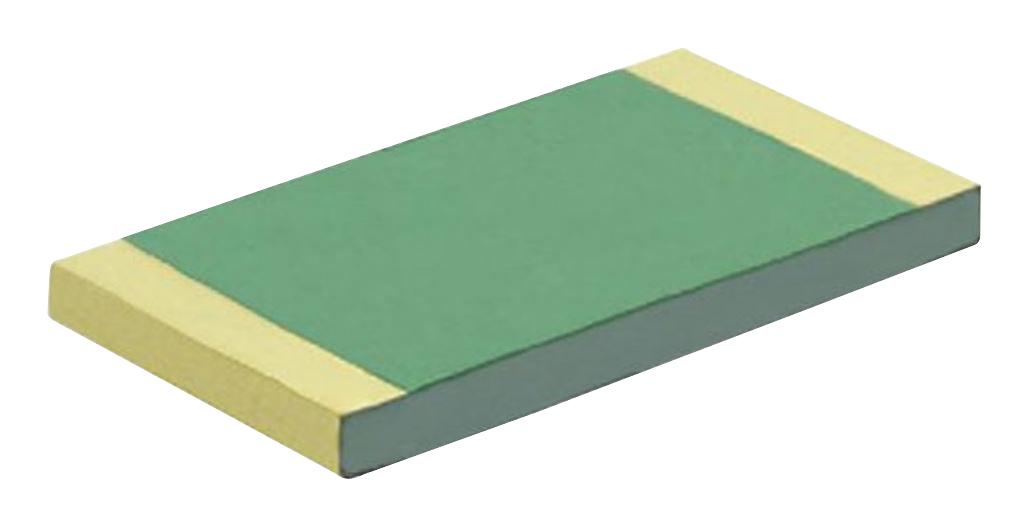

Vishay PEP0805Y1001BNTA Power Resistor
The PEP series high-precision wraparound, power-enhanced thin film chip resistors are crafted for high-power applications requiring low noise and superior stability. These resistors withstand temperatures up to 250°C, ensuring robustness mainly limited by solder joints. Designed for compact sizes without sacrificing power, they feature load life stability of 0.1% (up to 0.35%) over 2000 hours at 70°C, with sulfur resistance per ASTM B809-95. With low voltage and temperature coefficients, they are ideal for demanding electronic and industrial applications, featuring tin-silver over nickel or gold over nickel terminations.
Vishay PEP0805Y1001BNTA Power Resistor Specifications:
- Size options: 0402, 0603, 0805, 1206
- Resistance range: 39Ω to 900kΩ depending on size
- Rated Power: Up to 1 W (1206 size without cooling)
- Temperature Range: -55°C to +155°C
- Load life stability: 0.1% typical at 2000 hours / Pn / 70°C
- Resistance Coefficient: < 25 ppm/°C
- Voltage: 50V to 200V depending on size
- Film Material: Nickel chromium-based alloy
- Termination: Tin silver over nickel barrier or gold over nickel barrier
- Humidity Resistance: ASTM B809-95 humid vapor test
- Mechanical: Alumina substrate, standard size dimensions in mm
- Operating Conditions: Up to 250°C resistive layer withstands heat, robustness limited by termination and solder joints
Buy the Vishay PEP0805 U–Reliable High Power Resistors for Industrial Applications
Purchase Vishay PEP0805 high power thin film resistors online now. Designed for demanding industrial and electronic applications, these resistors offer exceptional stability, low noise, and high-temperature resistance. Ideal for compact designs, they ensure reliability over long operational cycles with load stability of 0.1%. Equipped with robust terminations and proven sulfur resistance, these resistors are perfect for high-power, low-noise circuits requiring precise resistance values and durable performance. Order today for fast delivery and professional-grade quality.
Get Vishay PEP0805 resistors today—built for precision and long-lasting durability in high-power electronics.
Frequently Asked Questions
Where can I buy Vishay PEP0805Y1001BNTA?
You can click on the BUY or RFQ button to purchase PEP0805Y1001BNTA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PEP0805Y1001BNTA?
You can download the PEP0805Y1001BNTA datasheet or visit the Vishay website for support.
Who is the manufacturer of PEP0805Y1001BNTA?
Vishay
