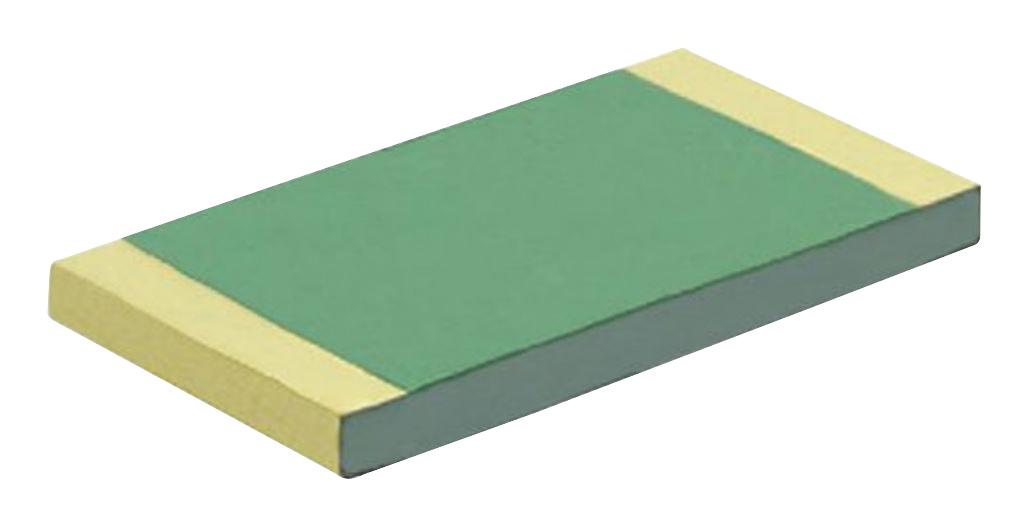

Vishay PEP0805Y5002BNTA High Power Thin Film Resistor
PEP series high-precision wraparound, power-enhanced thin film chip resistors are designed for high-power applications. They feature low noise, superior stability, a low temperature coefficient of resistance, and a low voltage coefficient. The resistive thin film layer can withstand temperatures up to 250°C, with robustness primarily limited by the terminations and solder joints. Suitable for smaller device sizes while maintaining power ratings, these resistors offer load stability of 0.1% over 2000 hours at 70°C. Sulfur resistant per ASTM B809-95, with nickel chromium alloy film and tin-silver over nickel barriers, ideal for demanding electronic environments.
Vishay PEP0805Y5002BNTA High Power Thin Film Resistor Specifications:
- Size: 0805
- Resistance Range: 39 to 240KΩ
- Power Rating: 0.5 W at 70°C, up to 1 W without cooling
- Resistance Tolerance: down to +0.05%
- Temperature Coefficient: +10 ppm/°C (Y), +25 ppm/°C (E), +50 ppm/°C (Z)
- Operating Temperature Range: -55°C to +155°C
- Film Material: Nickel chromium alloy
- Termination: Tin-silver over nickel barrier, gold over nickel barrier options
- Resistance Drift: < 0.05% over 2000 hours at 70°C
- Humidity & Sulfur Resistance: ASTM B809-95 compliant, epoxy and silicone passivation
- Mounting: Surface-mount technology for high reliability
- Dimensions: 1.91mm x 1.27mm for 0805, with precise land pattern recommendations
- Suitable for high stability, low noise, and high-temperature performance in electronic circuits
Buy the Buy Vishay Sfernice PEP Series High Power Thin Film Resistors Part Number PEP0805Y5002BNTA Online
Order the Vishay Sfernice PEP0805Y5002BNTA high power thin film resistor online today. Designed for demanding high-power circuits, it offers low noise, excellent stability, and sulfur resistance. Compact size, precision resistance tolerances down to +0.05%, and a temperature coefficient as low as +10 ppm/°C ensure high performance across temperature ranges. With a load life stability of 0.1%, rated at 0.5 W, and proven durability, this resistor is ideal for demanding aerospace, industrial, and automotive electronics.
Buy Vishay Sfernice PEP0805Y5002BNTA now and experience unmatched reliability and performance for high-power electronic applications.
Frequently Asked Questions
Where can I buy Vishay PEP0805Y5002BNTA?
You can click on the BUY or RFQ button to purchase PEP0805Y5002BNTA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PEP0805Y5002BNTA?
You can download the PEP0805Y5002BNTA datasheet or visit the Vishay website for support.
Who is the manufacturer of PEP0805Y5002BNTA?
Vishay
