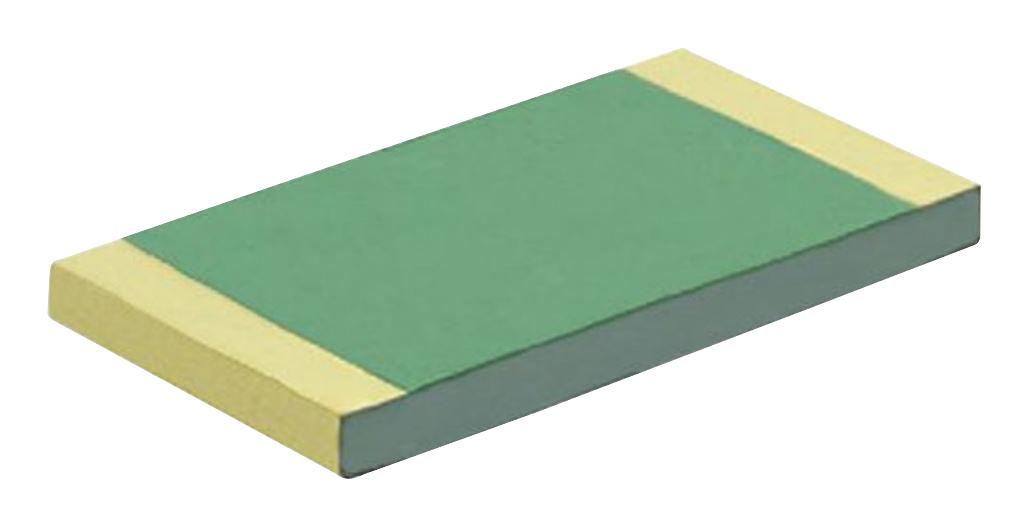

Vishay PEP1206Y1803WNTA High Power Thin Film Resistor
The PEP series high-precision wraparound, power-enhanced thin film chip resistors are designed for high power applications requiring low noise, excellent stability, and low temperature and voltage coefficients. Capable of withstanding temperatures up to 250°C, their durability hinges on termination quality and solder joints. These resistors exhibit load life stability with a typical change of 0.1% over 2000 hours at 70°C and rated power, with very low electrical noise, sulfur resistance per ASTM B809-95 humid vapor test, and tin-silver over gold terminations. Ideal for applications needing reliable, smaller-sized resistors with high power ratings.
Vishay PEP1206Y1803WNTA High Power Thin Film Resistor Specifications:
- Size: 1206
- Resistance Range: 39 to 900KΩ
- Power: 0.660 W at 70°C
- Rated Voltage: 200 V
- Temperature Coefficient: ±5 ppm/°C (Z), ±10 ppm/°C (Y), ±25 ppm/°C (E), ±50 ppm/°C (H)
- Load Life Stability: 0.1% typical over 2000 hours at 70°C
- Operating Temperature Range: -55°C to +155°C
- Film Material: Nickel chromium based alloy
- Termination: Tin-silver over nickel barrier, gold over nickel option
- Humidity Resistance: ASTM B809-95 humid vapor test
- Mounting Method: Surface-mount
- Material: Thin film technology, alumina substrate
- Resistance Tolerance: Down to ±0.05%
- Protection: Epoxy + silicone coating
- Environmental Resistance: Sulfur resistant, no corrosion observed
Buy the Vishay PEP1206 – Reliable High Power Thin Film Resistors for Industrial Applications
Order Vishay PEP1206 high power thin film resistors online today. Featuring low noise, exceptional stability, sulfur resistance, and capability to withstand temperatures up to 250°C, these surface-mount components are ideal for compact, high-power applications. With precise resistance tolerances down to ±0.05%, robust construction, and proven durability over 2000 hours at 70°C, they ensure reliable performance in demanding industrial and electronic systems. Purchase now for quality, efficiency, and long-term reliability.
Get Vishay PEP1206 today—built for high power and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy Vishay PEP1206Y1803WNTA?
You can click on the BUY or RFQ button to purchase PEP1206Y1803WNTA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PEP1206Y1803WNTA?
You can download the PEP1206Y1803WNTA datasheet or visit the Vishay website for support.
Who is the manufacturer of PEP1206Y1803WNTA?
Vishay
