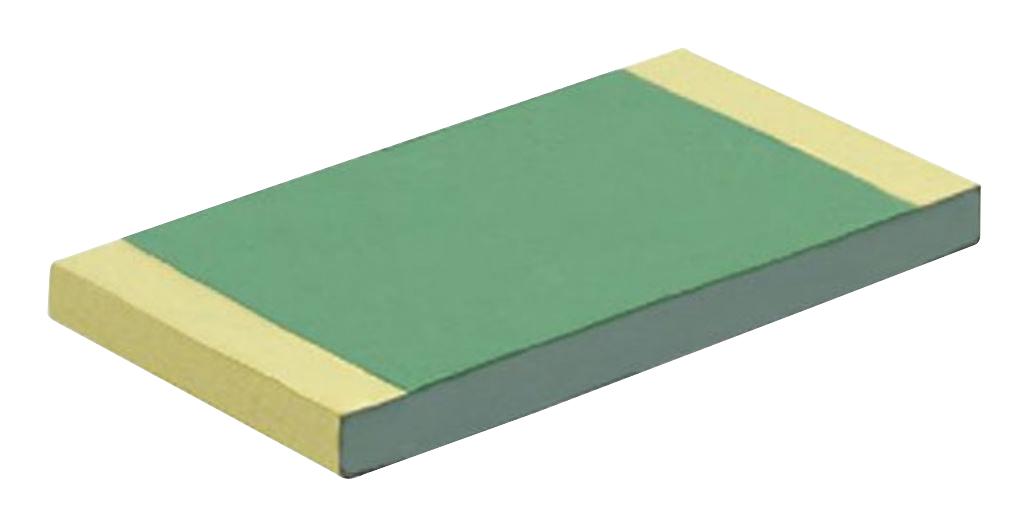

Vishay PEP1206Z1001BGTA Power Resistor
The PEP series high-precision wraparound, power-enhanced thin film chip resistors are designed for high-power applications requiring low noise, superior stability, low temperature coefficient of resistance, and low voltage coefficient. The resistive thin film layer can withstand temperatures up to 250°C, with restrictions mainly due to the robustness of terminations and solder joints. These resistors are suitable for customers needing smaller devices with the same power ratings. They are typically used in power electronics for industrial appliances, high-precision instrumentation, automatic test equipment, high-precision guidance systems for military and aerospace, and operational amplifier circuits for testing and measurement. Features include a load life stability of 0.1% (typical) at 2000 hours and 70°C, very low noise, sulfur resistance (per ASTM B809-95 humid vapor test), and gold over nickel barrier terminations.
Vishay PEP1206Z1001BGTA Power Resistor Specifications:
- Resistance Range: 39 Ω to 900 kΩ depending on size
- Power Rating: Up to 1 W for 1206 size, without cooling under PCB
- Operating Temperature Range: -55 °C to +155 °C
- Film Material: Nickel chromium alloy
- Termination: Tin silver or gold over nickel barrier
- Resistance Tolerance: Down to + 0.05 %
- Resistance Coefficient (TCR): Z = +5 ppm/°C, Y = +10 ppm/°C, E = +25 ppm/°C, H = +50 ppm/°C
- Load Life Stability: 0.1% at 2000 hours
- Sulfur Resistance: Yes, ASTM B809-95 compliant
- Dimensions (in mm): 0402 (1.00 x 0.60), 0603 (1.52 x 0.85), 0805 (1.91 x 1.27), 1206 (3.06 x 1.60)
- Climatic Conditions: Up to 250°C resistive capability, with restrictions due to terminations and solder joints
- Durability: Resistance drift less than 0.05% R + 0.05 Ω after 2000 hours at 70°C
- Packaging: Waffle pack, plastic tape, paper tape, or tape and reel options
- Compliance: RoHS, Halogen free, ASTM B809-95 sulfur resistant
- Mechanical: Substrate alumina, epoxy and silicone protection
