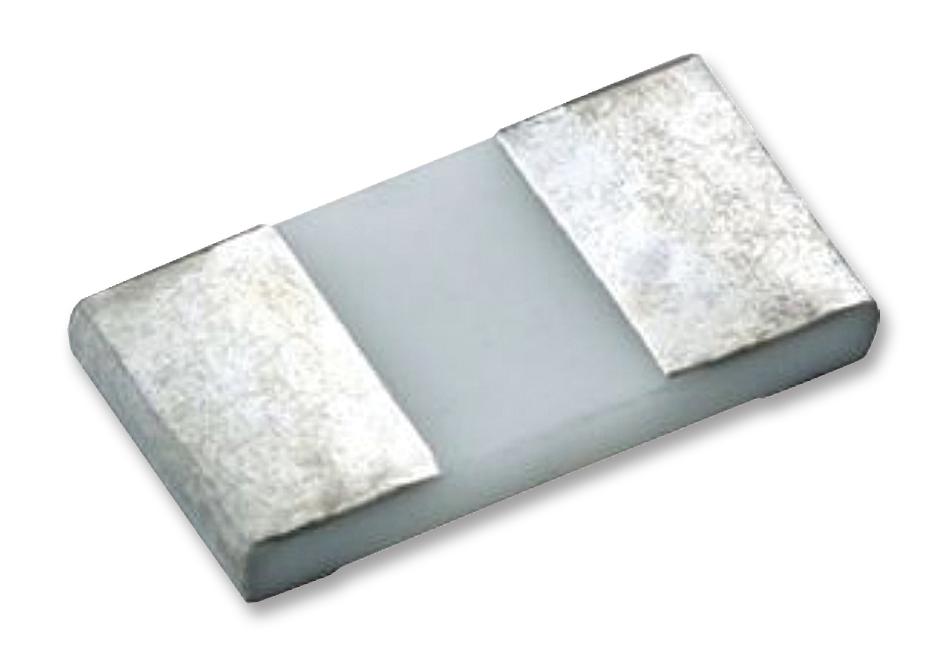

Vishay PHP02512E10R0BST3 High Power Thin Film Resistor
High power thin film wraparound chip resistor designed with enlarged backside terminations for reduced thermal resistance, suitable for power supplies, switching, and motor circuits. Features include a power rating up to 2.5 W, resistance range from 10.2 Ω to 30.1 kΩ, tolerance up to 0.1%, and TCR of +25 ppm/°C. Constructed with alumina substrate, tin/lead or lead-free terminations, and capable of operating within -55°C to +125°C. Ideal for applications requiring high stability, thermal performance, and reliability in industrial equipment and measurement systems.
Vishay PHP02512E10R0BST3 High Power Thin Film Resistor Specifications:
- Power Rating: 2.5 W at +70°C
- Resistance Range: 10.2 Ω to 30.1 kΩ
- Tolerance: Up to 0.1%
- Temperature Coefficient: +25 ppm/°C
- Operating Temperature Range: -55°C to +125°C
- Material: Alumina substrate with Nichrome resistive element
- Terminations: Tin/lead solder or RoHS-compliant tin/silver/copper solder
- Case Sizes: 1206 and 2512
- Maximum Working Voltage: 100 V (1206), 200 V (2512)
- Flame resistant UL 94 V-0
- Thermal stability and moisture resistance compliant with MIL-PRF-55342
- Resistance temperature characteristics: 25 ppm/°C
Buy the Vishay Series PHP High Power Thin Film Resistor: PHP02512E10R0BST3
Secure your project with the Vishay PHP02512E10R0BST3 high power thin film resistor, offering 2.5 W power rating, resistance from 10.2 ohms to 30.1 kilo-ohms, and exceptional thermal stability. Designed with alumina substrate and reliable terminations, it suits power supplies, switching, and motor control circuits. Its precise TCR of +25 ppm/°C and flame-resistant UL 94 V-0 rating ensure performance and safety in demanding environments. Order online today for fast delivery and trusted quality.
Buy Vishay PHP02512E10R0BST3 now and experience unmatched reliability and high power performance for your industrial and measurement applications.
Frequently Asked Questions
Where can I buy Vishay PHP02512E10R0BST3?
You can click on the BUY or RFQ button to purchase PHP02512E10R0BST3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PHP02512E10R0BST3?
You can download the PHP02512E10R0BST3 datasheet or visit the Vishay website for support.
Who is the manufacturer of PHP02512E10R0BST3?
Vishay
