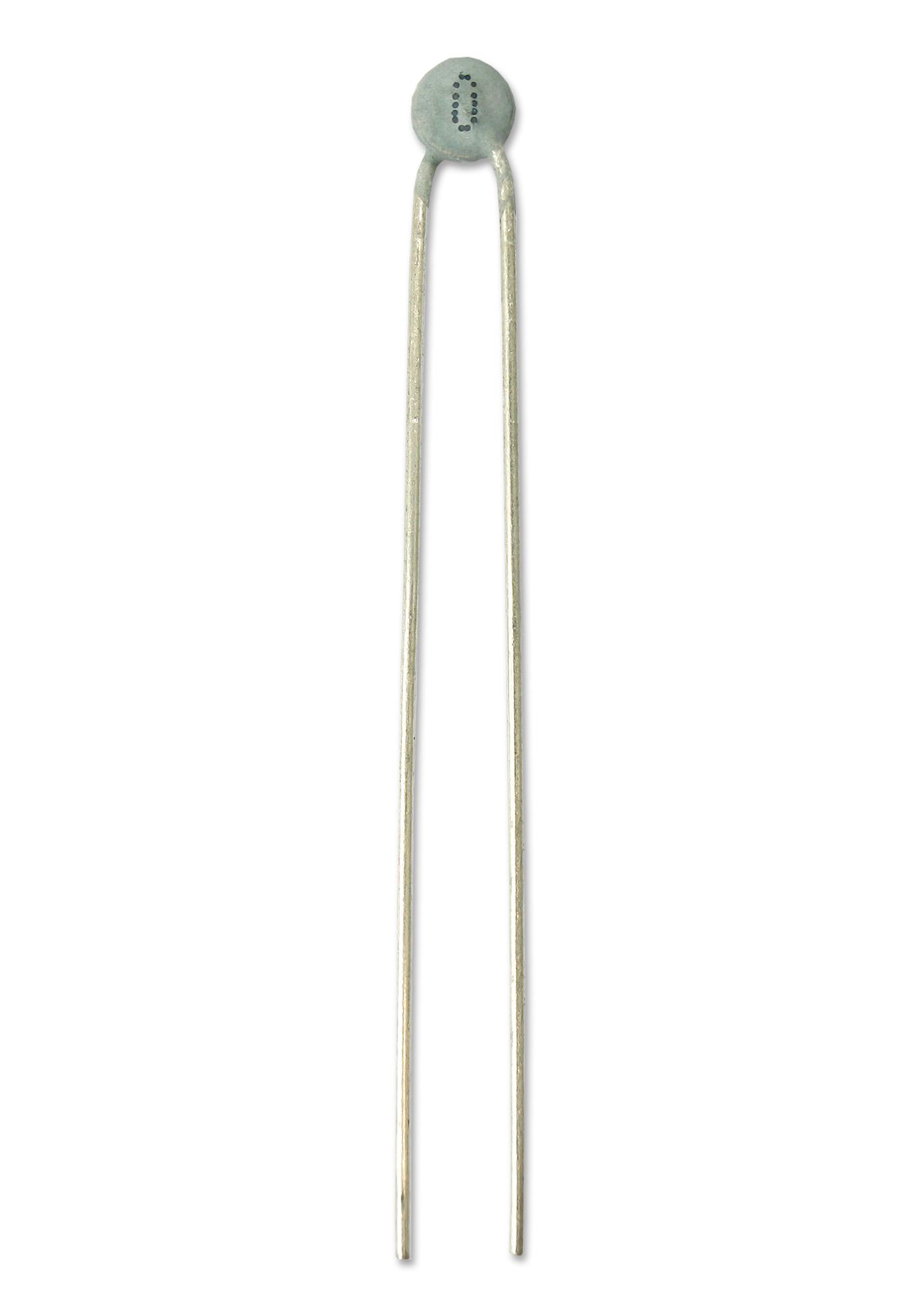

Vishay PTCSL03T101DB1E Over-Temperature Protection Thermistor
These PTC thermistors from Vishay are miniature, radial leaded sensor devices designed for over-temperature protection in industrial electronics, motor drives, and power supplies. They feature well-defined protection temperature levels, fast response time, and accurate resistance for ease of circuit design. Constructed from doped barium titanate ceramic with coated leads, they are small, rugged, and RoHS-compliant. Available in various protection temperature options from 80°C to 150°C, they ensure long-term reliability with minimal resistance drift after extensive operation.
Vishay PTCSL03T101DB1E Over-Temperature Protection Thermistor Specifications:
- Resistance at 25 °C: 20 to 120 Q
- Maximum resistance at -20 °C to (Tn - 20) °C: 250 Q
- Maximum resistance at -40 °C: 300 Q
- Maximum resistance at (Tp - 5) °C: 550 Q
- Nominal working temperature: 80 to 150 °C
- Maximum voltage: 30 V
- Operating temperature range: -40 to +165 °C
- Dissipation factor: 5 mW/K
- Thermal time constant: 6 s
- Weight: 0.12 g
- Component dimensions: Diameter 4.0 mm max, Lead diameter 0.5 mm, Lead center distance 2.5 mm, Total thickness 3.0 mm max
- Taping dimensions: Body diameter 4.0 mm max, Tape width 18 mm, Pitch 12.7 mm
Buy the Vishay PTCSLO3 – Reliable Over-Temperature Protection for Industrial Applications
Secure your industrial electronics with the Vishay PTCSLO3 thermistor, offering precise temperature sensing in compact, rugged design. Available in multiple protection temperature options from 80°C to 150°C, these thermistors deliver fast response time and accurate resistance characteristics that simplify circuit design and enhance reliability. Ideal for motor drives, power supplies, and industrial control systems, they are RoHS-compliant and available in bulk or tape on reel packaging for easy integration. Trust Vishay for dependable over-temperature protection across your projects.
Order your Vishay PTCSLO3 thermistor today and ensure precise over-temperature protection with fast response and robust construction for industrial electronics.
