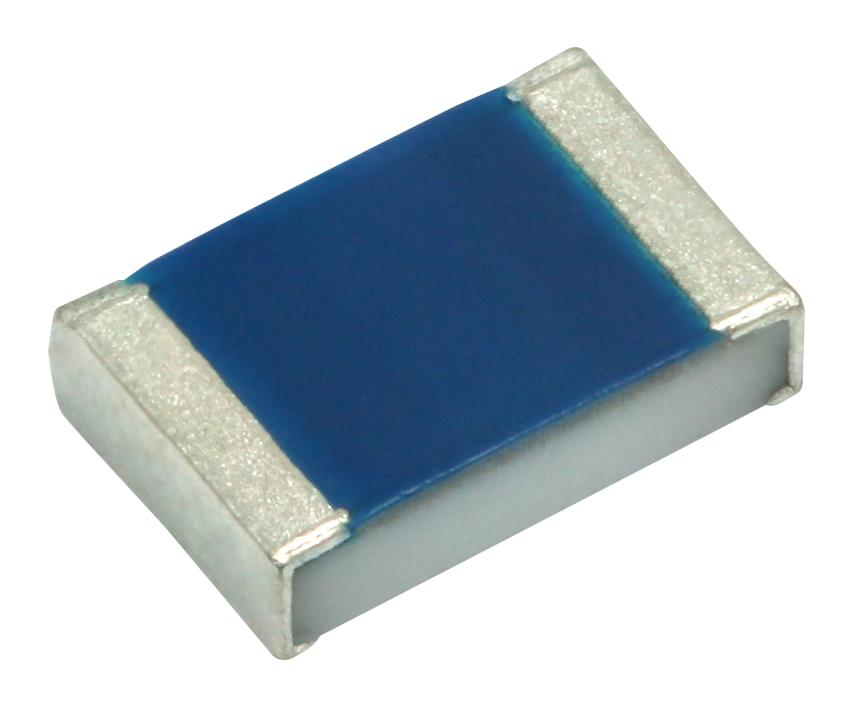

Vishay PTS080501B100RP100 Temperature Sensing Resistor
The PTS series are temperature-dependent platinum thin film chip resistors designed for precise temperature measurement and control in electronics operating under varying environmental conditions. Manufactured with advanced thin film technology, these SMD resistors feature high stability and reliable operation across a wide temperature range of -55°C to +155°C. Suitable for aerospace, industrial, and medical electronics, they meet IEC 60751 standards, supporting lead-free soldering. Compact in size with specific resistance values, these resistors provide accurate temperature sensing in demanding applications.
Vishay PTS080501B100RP100 Temperature Sensing Resistor Specifications:
- Size options: 0603, 0805, 1206
- Resistance values: 100R, 1K, 500R, 2K, 1000R, etc.
- Resistance tolerance: F0.3, F0.6
- Temperature coefficient: 19850 ppm/K at 0°C
- Operating temperature range: -55°C to +155°C
- Insulation Resistance: >10 MΩ
- Self-heating: <0.8 K/mW
- Water Resistance: Flowing air and water testing performed
- Physical dimensions include height, length, width, and mass specific to each size
- Soldering: Suitable for wave, reflow, vapor phase soldering with recommended pad dimensions
- Material: Platinum film on ceramic substrate with protective coating
- RoHS compliant and halogen-free
- Certifications include IEC 60751 for temperature sensing accuracy
Buy the Buy Vishay PTS Series Part Number PTS080501B100RP100 Online
Enhance your electronic projects with the Vishay PTS series temperature sensing resistor. Designed for precision and stability, these platinum thin film chip resistors support IEC 60751 standards, ideal for aerospace, industrial, and medical environments. Compact and robust, they withstand harsh conditions while providing accurate temperature measurement. Available in various sizes and resistance values, purchase online today to ensure dependable temperature control, fast delivery, and genuine Vishay quality for your sensitive electronic systems.
Order your Vishay PTS080501B100RP100 temperature sensing resistor today and ensure reliable temperature control in your critical electronic applications.
Frequently Asked Questions
Where can I buy Vishay PTS080501B100RP100?
You can click on the BUY or RFQ button to purchase PTS080501B100RP100 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PTS080501B100RP100?
You can download the PTS080501B100RP100 datasheet or visit the Vishay website for support.
Who is the manufacturer of PTS080501B100RP100?
Vishay
