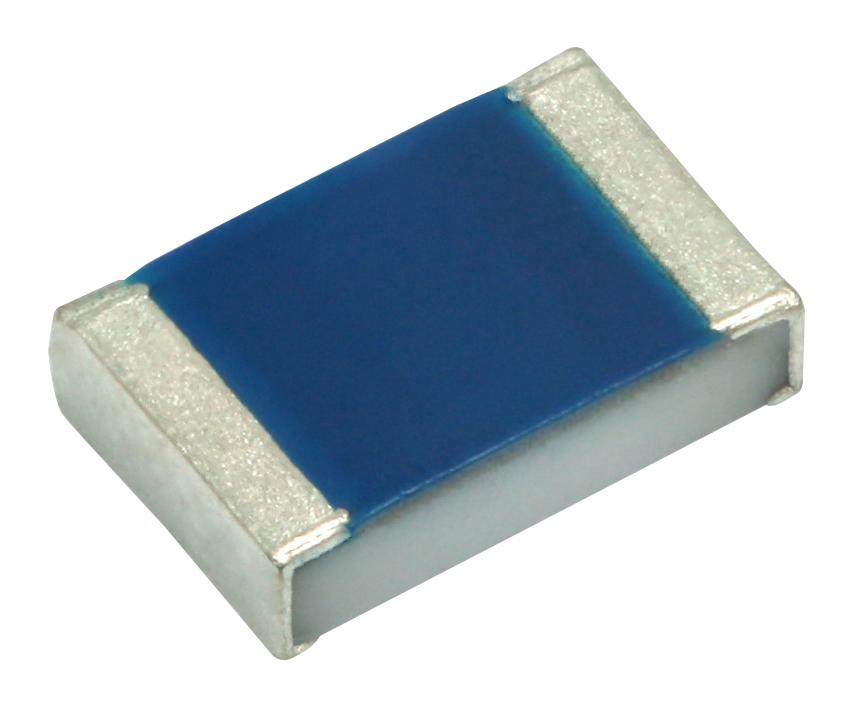

Vishay PTS120601B100RP100 Platinum RTD Sensor
The PTS series by Vishay Beyschlag offers temperature-dependent platinum thin film chip resistors ideal for precise temperature measurement and control in electronics operating under varying environmental conditions. Featuring robust design with advanced thin film technology, these SMD sensors exhibit outstanding stability, quick response times, and high reliability. They are suitable for applications in aviation, industrial, and medical electronics, providing excellent resistance accuracy, temperature coefficient, and thermal stability. The PTS series resistors are compatible with lead-free soldering and meet RoHS compliance standards, ensuring eco-friendly manufacturing and operation.
Vishay PTS120601B100RP100 Platinum RTD Sensor Specifications:
- Resistance values: 100Ω, 500Ω, 1kΩ, 2kΩ, 10kΩ, 100kΩ, 500kΩ, 1MΩ
- Temperature coefficient at 0°C: 19850 ppm/°C to 155 ppm/°C depending on type
- Operating temperature range: -55°C to +155°C
- Tolerance classes: F0.3 and F0.6
- Self-heating: <0.9 K/mW to <0.7 K/mW depending on type
- Insulation resistance: >10 MΩ
- Resistance accuracy: ±0.3% or ±0.6%
- Dimensions: PTS 0603 (0.45mm H, 1.55mm L, 0.85mm W), PTS 0805 (0.45mm H, 2.02mm L, 1.25mm W), PTS 1206 (0.55mm H, 3.1mm L, 1.6mm W)
- Soldering: Suitable for wave, reflow, and vapor phase reflow methods
- RoHS compliant: Yes, halogen-free options available
- Material: Platinum thin film deposited on ceramic substrate
- Compliance: IEC 60751, RoHS, WEEE, ELV
Buy the Buy Vishay Beyschlag PTS120601B100RP100 Part Number PTS120601B100RP100 Online
Experience the high accuracy and exceptional stability of the Vishay Beyschlag platinum RTD sensor from the PTS series. Designed for precise temperature sensing in aviation, industrial, and medical electronics, these SMD chip resistors combine advanced thin film technology with quick response times and outstanding resistance stability. RoHS compliant and suitable for multiple soldering techniques, they ensure eco-friendly and reliable operation. Order the PTS120601B100RP100 online today to enhance your electronic temperature control systems with a durable, high-performance sensor designed for long-term stability and accuracy.
Get Vishay Beyschlag PTS120601B100RP100 today—precision platinum RTD sensor for reliable temperature measurement in harsh environments.
Frequently Asked Questions
Where can I buy Vishay PTS120601B100RP100?
You can click on the BUY or RFQ button to purchase PTS120601B100RP100 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PTS120601B100RP100?
You can download the PTS120601B100RP100 datasheet or visit the Vishay website for support.
Who is the manufacturer of PTS120601B100RP100?
Vishay
