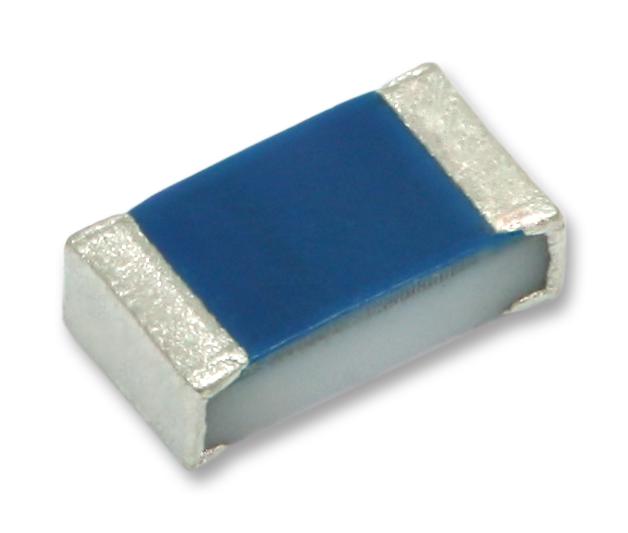

Vishay PTS12060M1B500RP100 Platinum SMD Temperature Sensor
The PTS series platinum SMD flat chip temperature sensors are designed for precise temperature control in electronic applications, including aerospace, industrial, and medical devices. Manufactured using advanced thin film technology, these sensors offer high stability, fast response times, and RoHS compliance. They feature a homogeneous platinum film on high-grade ceramic substrates, covered with protective coatings, and are suitable for automatic SMD assembly. With verified quality and durability, they ensure reliable operation across a wide temperature range of -55°C to +155°C, supporting lead-free soldering and long-term stability in harsh environments.
Vishay PTS12060M1B500RP100 Platinum SMD Temperature Sensor Specifications:
- Resistance values: 100.0 Ω at 0°C, 500 Ω, 1000 Ω
- Temperature coefficient: +3850 ppv/K
- Operating temperature range: -55°C to +155°C
- Long term stability: <0.04% Ro/Fo after 1000 hours at +155°C
- Insulation resistance: >10 MΩ
- Measurement current: 0.1 mA to 1.0 mA depending on model
- Self-heating: <0.7 K/mW (varies by model)
- Thermal response time: as low as <2 seconds in flowing air
- Dimensions: PTS 1206 - 3.1 x 0.5 mm, weight approximately 9.2 mg
- Material: Platinum film on Al2O3 ceramic, covered with protective coating
- Solderability: certified for 2 years, suitable for wave, reflow, vapor phase soldering
- Certifications: IEC 60751, RoHS, WEEE, Halogen-Free
Buy the Vishay Series PTS Platinum SMD Temperature Sensor: PTS12060M1B500RP100
Secure your Vishay Series PTS12060M1B500RP100 platinum SMD temperature sensor online today and enhance the reliability of your electronic systems. These high-precision sensors provide quick response times, outstanding stability, and durability across a wide temperature range from -55°C to +155°C. Perfect for aerospace, industrial, and medical electronics, they support lead-free soldering and meet strict international standards such as RoHS and IEC 60751. Purchase now for dependable, long-term temperature measurement in demanding environments.
Order your Vishay Series PTS12060M1B500RP100 platinum SMD temperature sensor today and ensure reliable, fast-response temperature control for your electronics projects.
Frequently Asked Questions
Where can I buy Vishay PTS12060M1B500RP100?
You can click on the BUY or RFQ button to purchase PTS12060M1B500RP100 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PTS12060M1B500RP100?
You can download the PTS12060M1B500RP100 datasheet or visit the Vishay website for support.
Who is the manufacturer of PTS12060M1B500RP100?
Vishay
