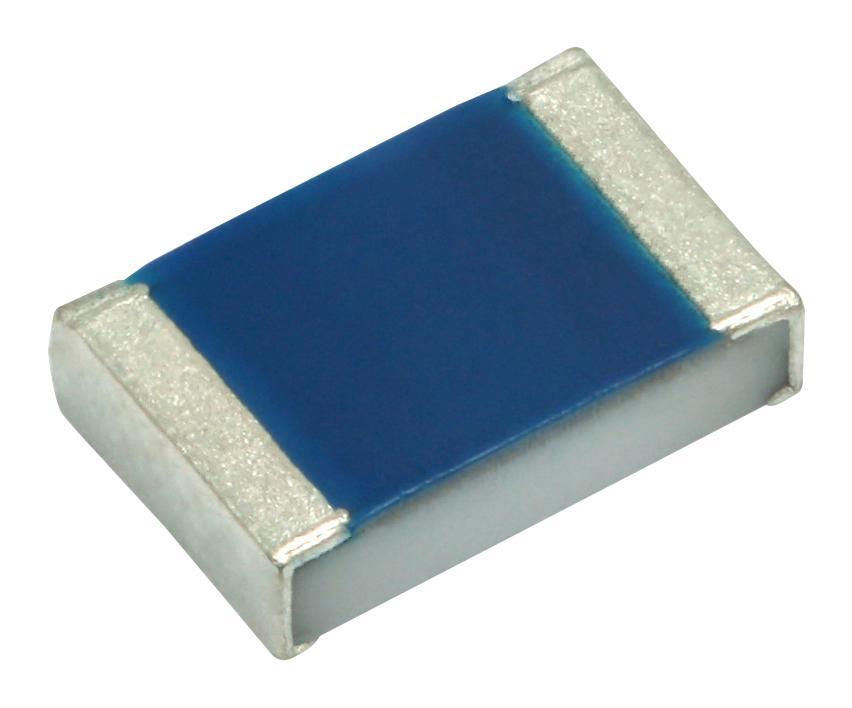

Vishay PTS1206M1B1K00P100 Temperature Sensor
The PTS1206M1B1K00P100 is a platinum SMD flat chip temperature sensor designed for precise temperature measurement and control in harsh environments. Manufactured with a homogeneous platinum film on a high-grade ceramic substrate, it offers outstanding stability, rapid response times, and resistance to temperature cycling. Suitable for automotive, aviation, and industrial electronics, this sensor features various resistance values, tolerance classes, and robust construction. Its encapsulation ensures electrical and mechanical protection, enabling reliable long-term operation in challenging conditions.
Vishay PTS1206M1B1K00P100 Temperature Sensor Specifications:
- Resistance at 0 °C: 1000.2 Ω
- Resistance Tolerance: Class F0.3
- Resistance Value: 1000.2 Ω
- Temperature Range: -55 °C to +175 °C
- Temperature Coefficient: +3850 ppm/K
- Insulation Resistance: >10 MΩ
- Measurement Current: 0.1 mA to 0.4 mA
- Self-heating at 0 °C: <0.7 K/mW
- Response Time in Flowing Air: <1.5 s
- Dimensions (mm): Length 3.1, Width 1.6, Height 0.55
- Mass: 9.2 mg
- Resistance change after 1000 hours at +155 °C: <0.4%
- Soldering: Suitable for wave, reflow, vapor phase
- Product complies with IEC 60751 and AEC-Q200 standards
- Encapsulation resistant to chemicals and cleaning solvents
- RoHS, WEEE, and ELV compliant
Buy the Vishay Series PTS Temperature Sensor: PTS1206M1B1K00P100
Order the Vishay PTS1206M1B1K00P100 temperature sensor online today to ensure precise temperature measurement in automotive, aerospace, and industrial electronics. This robust, high-stability device is designed with a platinum film on a ceramic substrate, providing rapid response times and excellent long-term stability. Its encapsulation offers superior protection against mechanical, electrical, and environmental stressors, making it ideal for harsh conditions. Enjoy quick delivery and trusted quality for your critical temperature control applications.
Buy Vishay PTS1206M1B1K00P100 now and experience unmatched reliability and performance in demanding industrial and automotive applications.
Frequently Asked Questions
Where can I buy Vishay PTS1206M1B1K00P100?
You can click on the BUY or RFQ button to purchase PTS1206M1B1K00P100 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PTS1206M1B1K00P100?
You can download the PTS1206M1B1K00P100 datasheet or visit the Vishay website for support.
Who is the manufacturer of PTS1206M1B1K00P100?
Vishay
