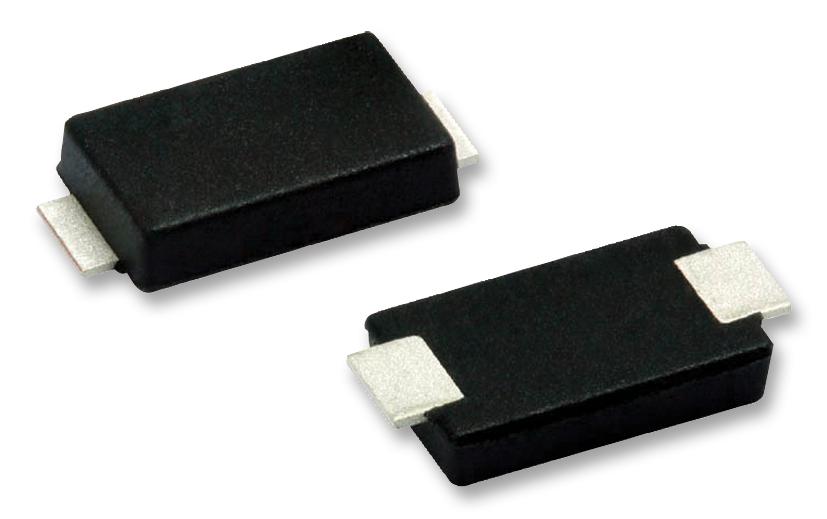

Vishay VS3EYH02M3H Schottky Rectifier
The Vishay Hyperfast Rectifier is a compact, low-profile Schottky diode designed for high-frequency, industrial, and automotive applications. It features low forward voltage drop, low leakage current, and meets RoHS and halogen-free standards. Suitable for use in DC/DC converters, PFC circuits, snubbers, and industrial power modules, it offers excellent switching performance, high junction temperature tolerance, and compatibility with SOD-128 package outlines. Its rugged construction ensures reliable operation in demanding electronic environments, making it an ideal choice for modern power supply systems.
Vishay VS3EYH02M3H Schottky Rectifier Specifications:
- Case: SlimSMAW (DO-221AD)
- Peak repetitive reverse voltage: 100 V (VS-3EYH01-M3) / 200 V (VS-3EYH02-M3)
- Average rectified forward current: 3 A at 137°C
- Forward voltage drop: 0.71 – 0.79 V at 3 A, 150°C
- Reverse leakage current: up to 20 μA at rated Vp
- Junction capacitance: 16 pF at 200 V reverse voltage
- Maximum junction temperature: -55°C to +175°C
- Thermal resistance junction to ambient: 120-150 °C/W
- Operating temperature range: -55°C to +175°C
- Lead material: Matte tin plated, solderable
- Meets UL 94 V-0 flammability rating
- RoHS and halogen-free compliant
- Surface-mount package suitable for automated assembly
Buy the Vishay VS-3EYH01-M3 – Reliable Schottky Rectifier for Industrial Applications
Secure your power systems today by purchasing the Vishay VS-3EYH01-M3 hyperfast Schottky rectifier online. This high-performance diode provides low forward voltage, fast switching, and excellent thermal characteristics, making it perfect for industrial, automotive, and high-frequency applications. Its compact SMD package allows easy integration into modern electronic circuits. Reliable and RoHS-compliant, order now to enhance your power modules with trusted quality and ensure efficient, durable operation in demanding environments.
Order your Vishay VS-3EYH01-M3 hyperfast Schottky diode today and ensure your power circuitry benefits from low losses and high reliability in demanding industrial environments.
Frequently Asked Questions
Where can I buy Vishay VS3EYH02M3H?
You can click on the BUY or RFQ button to purchase VS3EYH02M3H from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VS3EYH02M3H?
You can download the VS3EYH02M3H datasheet or visit the Vishay website for support.
Who is the manufacturer of VS3EYH02M3H?
Vishay
