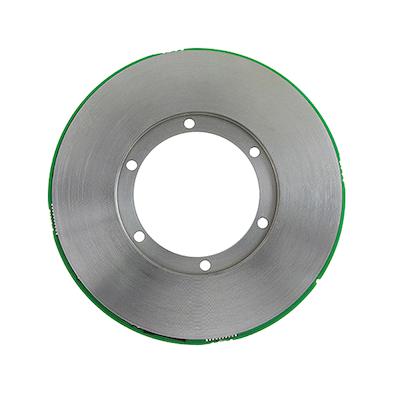

Vishay RAMK060M11319FB661 Magnetic Rotary Encoder
The Vishay RAMKO60 is a high-precision rotational magnetic encoder designed for industrial and robotics applications. Featuring a 60 mm diameter, it operates with a Hall effect sensor that provides high accuracy, resolution, and repeatability. The encoder supports multiple communication protocols such as SSI, Biss-C, and SPI, with optional multi-turn counting and backup battery options. Its robust design ensures reliable performance under harsh conditions, including vibrations, shocks, and magnetic interference, making it suitable for demanding environments and precise position sensing.
Vishay RAMK060M11319FB661 Magnetic Rotary Encoder Specifications:
- Sensor type: Rotational, magnetic technology
- Dimensions: Diameter 60 mm
- Output formats: SSI, Biss-C, SPI
- Electrical supply: 5 V ±0.25 V
- Supply current: < 180 mA at 5 V
- Resolution: 0.001° (18.35 bits), better than 13 bits accuracy at 25°C
- Repeatability: > 16 bits
- Maximum rotation speed: 10,000 rpm
- Operating temperature: -40°C to +85°C
- Environmental protection: Coated PCB, RoHS compliant
- Magnetic and environmental immunity: Not sensitive to external magnetic fields, moisture, or pollution
- Multi-turn counter: 16 bits, with or without external backup battery
- Communication protocols: SSI, Biss-C, SPI with respective data formats
- Mounting tolerances: Shaft diameter 25 mm +0/-0.010 mm, stator diameter ±0.060 mm
- Vibration/shock resistance: 0.05 g/Hz 20 Hz–2000 Hz, 100 g shock
Buy the Buy Vishay RAMK060M11319FB661 Part Number RAMK060 online
Experience precise position feedback with Vishay's RAMK060 Magnetic Rotary Encoder, designed for demanding industrial and robotic applications. Compact and robust with a 60 mm diameter, it features multiple communication interfaces including SSI, Biss-C, and SPI, supporting multi-turn counting with optional battery backup. Its high resolution of 0.001° and excellent repeatability ensure optimal performance in harsh conditions. Easy to install, RoHS compliant, and protected against vibrations, shocks, and magnetic interference, making it an ideal choice for critical automation systems.
Get Vishay RAMK060M11319FB661 today—built for high accuracy, reliability, and harsh environment performance.
Frequently Asked Questions
Where can I buy Vishay RAMK060M11319FB661?
You can click on the BUY or RFQ button to purchase RAMK060M11319FB661 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part RAMK060M11319FB661?
You can download the RAMK060M11319FB661 datasheet or visit the Vishay website for support.
Who is the manufacturer of RAMK060M11319FB661?
Vishay
