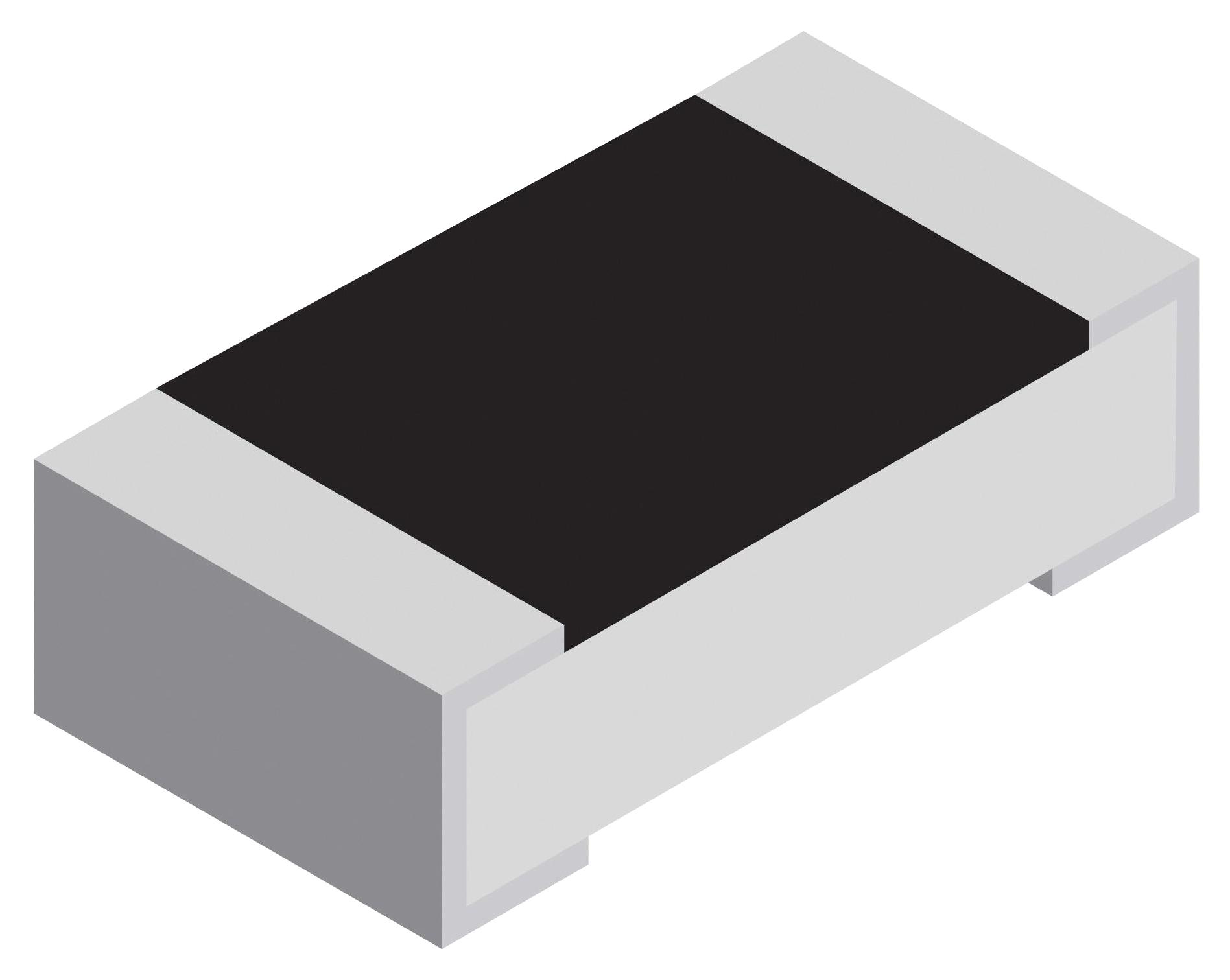

Vishay RCC06034K70FKEA Thick Film Chip Resistor
The RCC e3 series comprises medium power thick film chip resistors designed for automotive, industrial, telecommunications, and medical applications. Manufactured with a high-grade ceramic substrate and a cermet resistive layer, these resistors are laser-trimmed for precise resistance values and covered with protective coating for environmental resilience. Their RoHS-compliant, lead-free plated terminations ensure compatibility with modern soldering techniques, including wave and reflow. Approved under AEC-Q200, these resistors offer reliable performance, stability, and durability in demanding conditions, with resistance ranges from 1 Ω to 10 MΩ and power dissipation up to 0.25 W.
Vishay RCC06034K70FKEA Thick Film Chip Resistor Specifications:
- Size: RCC0402 - 1.0+0.05 mm, RCC0603 - 1.55+0.10/-0.05 mm, RCC0805 - 2.0+0.20/-0.10 mm
- Resistance Range: 1 Ω to 10 MΩ
- Resistance Tolerance: ±5% (most models), ±1% available
- Temperature Coefficient: 100 ppm/K to 200 ppm/K depending on model
- Rated Dissipation: 0.125 W (0402), 0.2 W (0603), 0.25 W (0805)
- Operating Voltage: up to 200 V
- Maximum Film Temperature: 155°C
- Operating Temperature Range: -55°C to +155°C
- Material: Ceramic substrate with cermet film layer
- Termination Finish: Pure tin on nickel plating
- Certifications: RoHS, AEC-Q200 qualified
- Assembly Compatibility: Suitable for wave, reflow, vapor phase soldering
- Durability: Stable resistance over lifespan, resistant to solvents and environmental conditions
Buy the Vishay Series RCC e3 Thick Film Resistor: RCC06034K70FKEA
Shop Vishay RCC0603 e3 resistors online now for high stability and reliability in automotive, industrial, and telecommunication systems. These resistors are RoHS-compliant, AEC-Q200 qualified, and designed for automatic SMD assembly. With a resistance range from 1 Ω to 10 MΩ and power dissipation up to 0.2 W, they provide optimal performance under harsh conditions. The robust ceramic substrate, laser-trimmed resistive layer, and protective coating ensure long-term stability, environmental resistance, and compatibility with lead-free soldering processes, making them ideal for modern electronic applications requiring durability and precision.
Get Vishay RCC0603 e3 today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy Vishay RCC06034K70FKEA?
You can click on the BUY or RFQ button to purchase RCC06034K70FKEA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part RCC06034K70FKEA?
You can download the RCC06034K70FKEA datasheet or visit the Vishay website for support.
Who is the manufacturer of RCC06034K70FKEA?
Vishay
