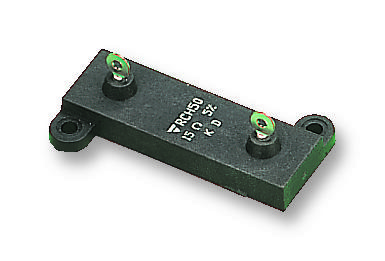

Vishay RCH50S470R0JS06 Power Resistor
Vishay Sfernice RCH series power resistors are designed for mounting onto heatsinks, offering high power ratings from 5W to 50W, high overload capacity up to 2500 V, and excellent thermal performance. Constructed with cermet thick film technology on alumina substrates, they provide low inductance, high insulation resistance of 10 MΩ, and robust environmental resistance from -55°C to +125°C. Available in various sizes with flat or round leads, these resistors are ideal for high-frequency, cut-out, and overload applications with easy mounting and thermal management features.
Vishay RCH50S470R0JS06 Power Resistor Specifications:
- Power Rating: 5W to 50W
- Resistance Range: 0.24 to 1 MΩ
- Resistance Tolerance: ±1%, ±2%, ±5%, ±10%
- Temperature Coefficient: 150 ppm/°C or 250 ppm/°C
- Maximum Overload Voltage: 320V to 2500V depending on model
- Insulation Resistance: 10 MΩ
- Thermal Resistance: 0.8°C/W to 4.8°C/W
- Operating Temperature Range: -55°C to +125°C
- Environmental Conditions: Climatic category 55/125/56, RoHS compliant
- Mechanical Protection: Insulated alumina case, tinned copper connections
- Mounting: Mount onto heatsink with torque from 0.5 Nm to 1 Nm
- Weight: 4g to 12g depending on model
- Dimensions: Model dependent sizes, e.g., RCH50: L 47.8mm, W 15.5mm, H 29.5mm
Buy the Buy Vishay Sfernice Power Resistor Part Number RCH50S470R0JS06 Online
Purchase the Vishay Sfernice power resistor RCH50S470R0JS06 online today to benefit from its high power capacity, excellent thermal management, and robust construction. Designed for mounting on heatsinks, it features a resistance of 470Ω with 5% tolerance and a temperature coefficient of 150 ppm/°C. Ideal for high frequency, overload, and cut-out circuits in industrial and electronic applications. Enjoy fast delivery and expert support to optimize your project performance and reliability.
Order your Vishay Sfernice RCH50S470R0JS06 high-power resistor today and ensure reliable performance for demanding overload and high frequency applications.
