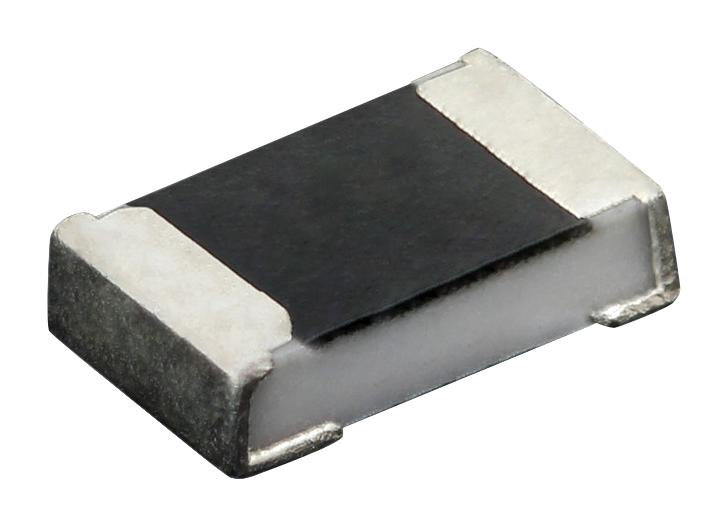

Vishay RCS0402301RFKED High Power Thick Film Resistor
The RCS e3 series consists of high-power, anti-surge thick film chip resistors designed for demanding automotive, industrial, and telecommunications applications. Manufactured with a controlled process, these resistors feature a ceramic substrate, a cermet film layer, and protective coatings that ensure electrical and mechanical stability. They are suitable for automatic SMD assembly, support reflow or vapor phase soldering, and comply with RoHS directives. With excellent pulse and surge capabilities, these resistors offer reliability under high voltage, high temperature, and pulse load conditions, making them ideal for power electronics and medical devices.
Vishay RCS0402301RFKED High Power Thick Film Resistor Specifications:
- Size: RCS0402 e3, 1.0 + 0.05 mm length, 0.5 + 0.05 mm width, 0.35 + 0.05 mm height
- Resistance Range: 1.9 to 10 MΩ (jumper up to 20 MΩ)
- Resistance Tolerance: ±5%, ±1%, or ±0.5%
- Temperature Coefficient: +200 ppm/K or +100 ppm/K
- Rated Dissipation: 0.2W (RCS0402) to 0.5W (RCS1206)
- Operating Voltage: 50V (RCS0402) to 200V (RCS1206)
- Maximum Film Temperature: 155°C
- Operating Temperature Range: -55°C to +155°C
- Pulse Load Capability: Up to 0.41 W depending on size
- Material: Ceramic substrate with cermet film, protective coating, and pure tin over nickel plating
- Compliance: RoHS, AEC-Q200 qualified
- Dimensions: Length 1.0 mm, Width 0.5 mm, Height 0.35 mm for RCS0402; larger sizes accordingly
- Soldering: Compatible with wave, reflow, vapor phase; lead-free with tin plating
- Climatic and electrical tests: Endurance, humidity, vibration, resistance to soldering, and electrostatic discharge tests
- Packaging: Tape and reel, various sizes up to 50,000 units per reel
