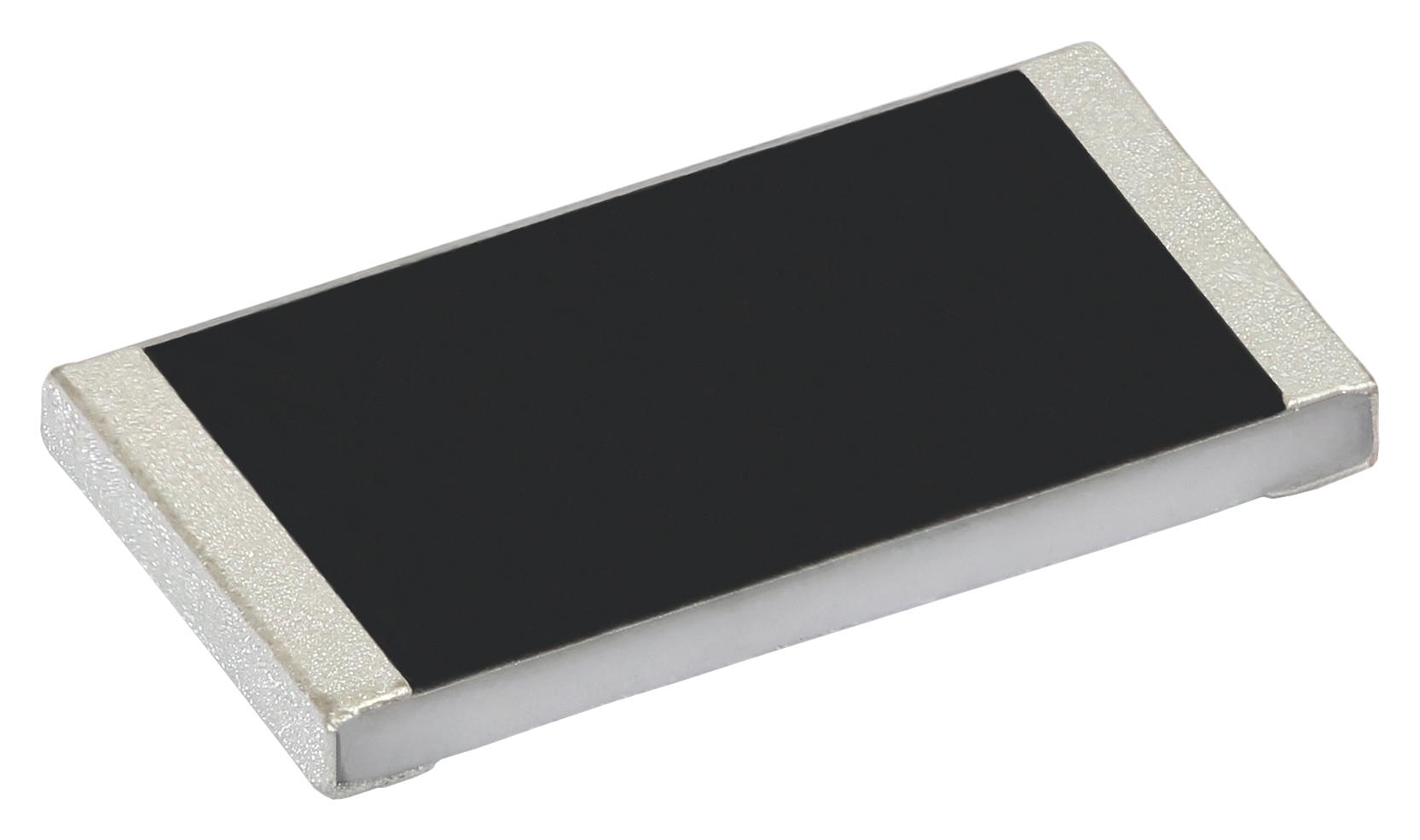

Vishay RCV2512100MJNEGAT High Voltage Resistor
The RCV series high voltage thick film chip resistors are designed for demanding electronic applications, including automotive inverters, onboard chargers, and DC-DC converters. Manufactured with a high-grade ceramic substrate, these resistors feature a cermet film layer and protective coatings for electrical and climatic resilience. They are RoHS-compliant, AEC-Q200 qualified, and suitable for automatic SMD assembly using wave, reflow, or vapor phase soldering. With rated dissipation up to 1.0W and operating voltages up to 3 kV, they deliver reliable high voltage performance in harsh environments for modern electronic systems.
Vishay RCV2512100MJNEGAT High Voltage Resistor Specifications:
- Resistance range: 100 kΩ to 100 MΩ
- Resistance tolerance: 1%, 5%
- Temperature coefficient: + 200 ppm/K, + 100 ppm/K
- Operating voltage: up to 3,000 V
- Rated dissipation: 1.0W
- Film temperature: Max. 155°C
- Ambient temperature range: -55°C to +155°C
- Dimensions: (mm) RCV2512-AT e3: 6.3 x 3.15 x 0.6
- Material: Ceramic with cermet film layer, tin over nickel plating
- Certifications: RoHS, AEC-Q200
- Test standards: IEC 60115-1, IEC 60068 series
Buy the Buy Vishay RCV Series High Voltage Thick Film Chip Resistors Part Number RCV2512100MJNEGAT Online
Purchase the Vishay RCV2512100MJNEGAT high voltage thick film chip resistor online today. Designed for applications requiring up to 3 kV, it provides excellent stability, high power dissipation, and reliable operation in automotive inverters, onboard chargers, and DC-DC converters. Its ceramic cermet composition, RoHS compliance, and AEC-Q200 qualification ensure suitability for harsh environments. With a resistance range from 100 kΩ to 100 MΩ and low tolerance, this resistor guarantees precision, durability, and excellent electrical performance for modern electronic projects.
Order your Vishay RCV2512100MJNEGAT high voltage resistors today and ensure reliable performance in demanding automotive and power conversion systems.
Frequently Asked Questions
Where can I buy Vishay RCV2512100MJNEGAT?
You can click on the BUY or RFQ button to purchase RCV2512100MJNEGAT from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part RCV2512100MJNEGAT?
You can download the RCV2512100MJNEGAT datasheet or visit the Vishay website for support.
Who is the manufacturer of RCV2512100MJNEGAT?
Vishay
