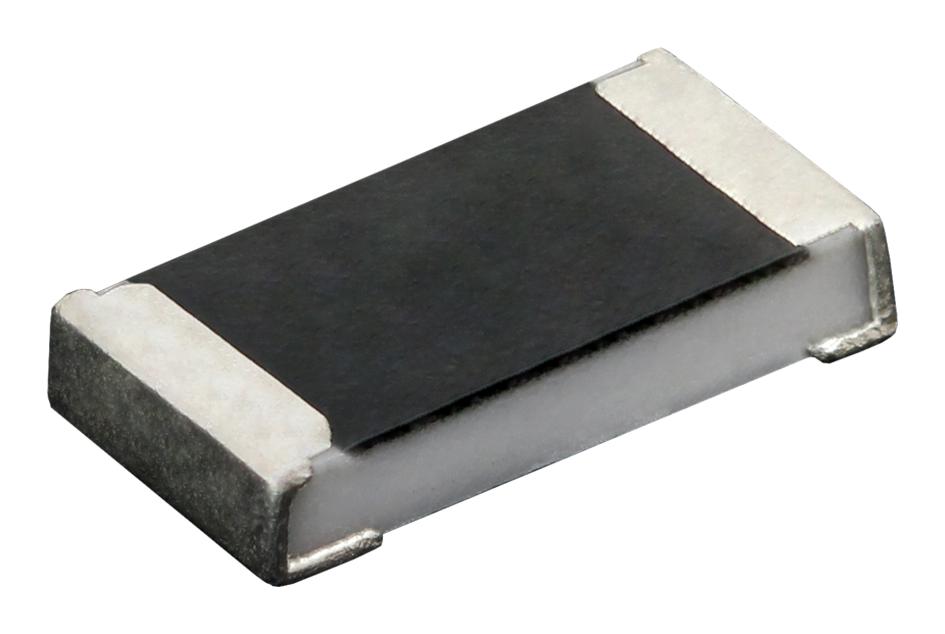

Vishay RCS080520R0FKEA High Power Thick Film Resistor
High power thick film chip resistor series offers excellent surge pulse capability and superior ESD characteristics, suitable for automotive, industrial, and telecommunication applications. Made with a ceramic substrate and a resistor layer fine- trimmed by laser for precise performance, these RoHS-compliant, lead-free resistors are suitable for automated SMD assembly. With robust encapsulation and pure tin plating, they're resistant to cleaning solvents, conformal coating, and long-term stability testing. Qualified according to AEC-Q200, these resistors provide reliable performance even under harsh environmental conditions.
Vishay RCS080520R0FKEA High Power Thick Film Resistor Specifications:
- Size: 0805 (2.0 ± 0.2 mm x 1.25 ± 0.15 mm)
- Resistance range: 10Ω to 10MΩ
- Resistance tolerance: 1%, 2%
- Temperature coefficient: +100 ppm/K, +200 ppm/K
- Rated dissipation: 0.4W
- Maximum operating voltage: 150V
- Film temperature: 155°C
- Operating temperature range: -55°C to +155°C
- Material: Ceramic substrate with resistor film and glass-over layer
- Termination: Pure tin on nickel plating
- Mechanical: Resistant to cleaning solvents and conformal coatings
- Compliance: RoHS, AEC-Q200 qualified
Buy the Vishay Series RCS e3: High Power Thick Film Chip Resistors: RCS0805
Purchase Vishay Series RCS0805 high power thick film resistors online today and benefit from their excellent surge pulse capability, superior ESD resistance, and long-term stability. These RoHS-compliant, lead-free resistors are ideal for demanding automotive, industrial, and telecommunication applications. Manufactured with a ceramic substrate and laser-trimmed resistor layer for precise performance, they are suitable for automated SMD assembly, resistant to cleaning solvents, conformal coatings, and environmental stress. Ensure your electronic designs are robust and reliable by choosing Vishay quality resistors for your projects.
Order your Vishay Series RCS0805 high power resistors today and ensure your projects maintain reliable performance under surge and environmental stress.
