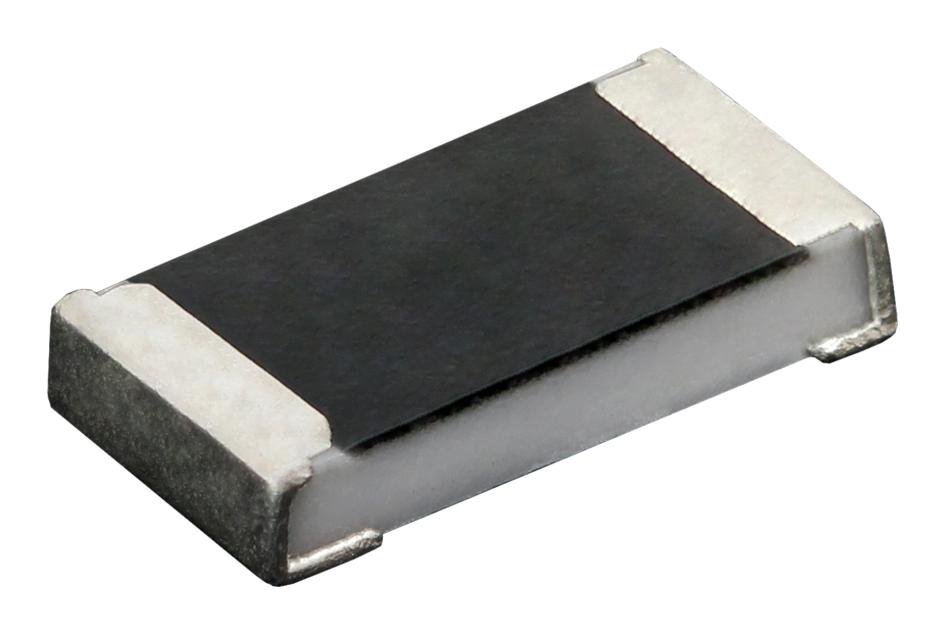

Vishay RCS080522R0JNEA High Power Thick Film Resistor
This high-power thick film chip resistor series offers excellent surge pulse capability and superior ESD characteristics, making it ideal for automotive, industrial, and telecommunication applications. Constructed on a high-grade ceramic substrate with a carefully deposited cermet film, it achieves precise resistance values through laser trimming and is coated for environmental protection. RoHS-compliant with pure tin plating, these resistors are suitable for automatic SMD placement, reflow, wave soldering, and operating under harsh conditions with long-term stability verified through extensive testing.
Vishay RCS080522R0JNEA High Power Thick Film Resistor Specifications:
- Size: RCS0402: 1.0 x 0.5 mm; RCS0603: 1.55 x 0.85 mm; RCS0805: 2.0 x 1.25 mm; RCS1206: 3.2 x 1.6 mm
- Resistance Range: 1.9 to 10 MΩ (jumper 0 Ω)
- Resistance Tolerance: ±5%, ±1%, ±0.5%
- Temperature Coefficient: ±200 ppm/K or ±100 ppm/K depending on type
- Rated Dissipation: 0.2W (0402), 0.25W (0603), 0.4W (0805), 0.5W (1206)
- Maximum Operating Voltage: 50V (0402), 75V (0603), 150V (0805), 200V (1206)
- Maximum Film Temperature: 155°C
- Operating Temperature Range: -55°C to +155°C
- Construction: Cermet film on A l 2 O 3 ceramic substrate with glass-over coating
- Finish: Pure tin on nickel plating, RoHS compliant
- Assembly: Suitable for automatic SMD placement, wave, reflow, vapor phase soldering
- Environmental Testing: Endurance, humidity, vibration, thermal cycling, and electrostatic discharge testing
Buy the Vishay Series e3 Anti-Surge High Power Thick Film Chip Resistors: RCS0805
Purchase Vishay RCS0805 high-power thick film resistors online today to ensure superior surge pulse handling, environmental durability, and long-term stability. These resistors are ideal for automotive, industrial, and telecommunication applications, meeting strict RoHS regulations. They feature precise resistance values, built on high-grade ceramic substrates with laser trimming, and have RoHS-compliant pure tin plating for compatibility with lead-free soldering processes. With extensive testing for reliability and resistance to harsh conditions, these resistors guarantee consistent performance for your electronic designs. Order now for fast delivery and dependable performance.
Buy Vishay RCS0805 high-power thick film resistor now and experience reliable performance in demanding industrial and automotive environments.
Frequently Asked Questions
Where can I buy Vishay RCS080522R0JNEA?
You can click on the BUY or RFQ button to purchase RCS080522R0JNEA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part RCS080522R0JNEA?
You can download the RCS080522R0JNEA datasheet or visit the Vishay website for support.
Who is the manufacturer of RCS080522R0JNEA?
Vishay
