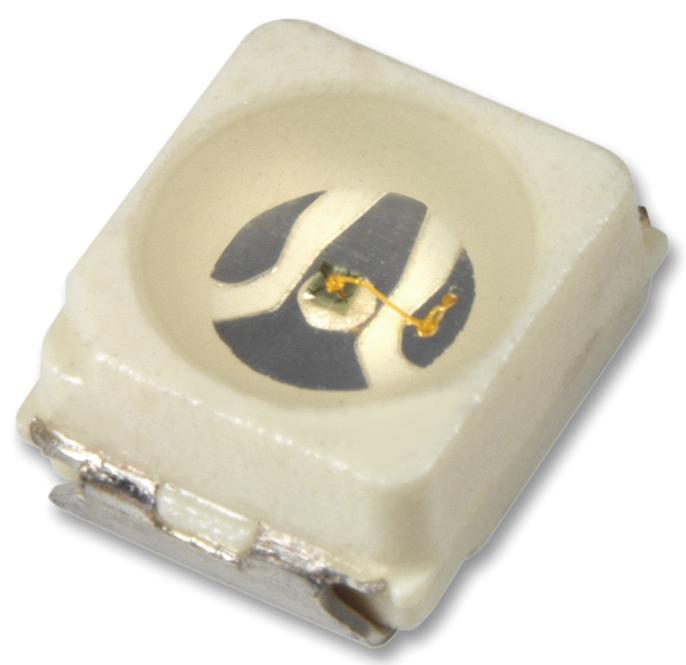

Vishay VLMS30J1L2GS08 Low-Current SMD LED
The VLMS30J1L2-GS08 is a red low-current surface-mount LED featuring a round-shaped lens designed for high brightness use. It utilizes a lead frame embedded in white thermoplastic with a clear epoxy-filled reflector inside. This LED is compatible with automatic placement equipment, making it suitable for applications requiring efficient coupling to light pipes and backlighting. It offers very low power consumption and is ideal for automotive, communications, networking, and consumer electronics applications.
Vishay VLMS30J1L2GS08 Low-Current SMD LED Specifications:
- Package: SMD PLCC-2
- Color: Red
- Luminous Intensity: 2.8 - 4.5 mcd
- Wavelength: 624 - 636 nm
- Forward Voltage: 1.8 - 2.2 V
- Reverse Voltage: 6 V
- Forward Current: 15 mA
- Operating Temperature Range: -40 to +100 °C
- Storage Temperature Range: -40 to +100 °C
- Junction Temperature: 125 °C
- Power Dissipation: 40 mW
- Angle of Half Intensity: + 60°
- ESD withstand voltage: up to 2 kV
- Material: AlInGaP
- Mounting: Compatible with IR reflow, vapor phase, wave solder
- Reel Options: GS08 (1500 pcs), GS18 (8000 pcs)
- Soldering Profile: Preconditioning per JEDEC level 2a, max ramp up 3 °C/s, max ramp down 6 °C/s
Buy the Buy Vishay Low-Current SMD LED Part Number VLMS30J1L2GS08 Online
Order the Vishay VLMS30J1L2-GS08 online today to enjoy quick delivery of high brightness, efficient, and reliable low-current surface-mount LEDs suitable for automotive, backlighting, and telecommunication applications. Perfect for automatic assembly, with RoHS compliance and excellent electrical and optical characteristics. Take advantage of our easy ordering process and secure your supply of top-quality LEDs for your electronic projects. Enhance your product designs with Vishay's trusted LED technology now.
Buy Vishay VLMS30J1L2-GS08 now and experience high brightness efficiency and reliable performance in compact surface-mount design.
