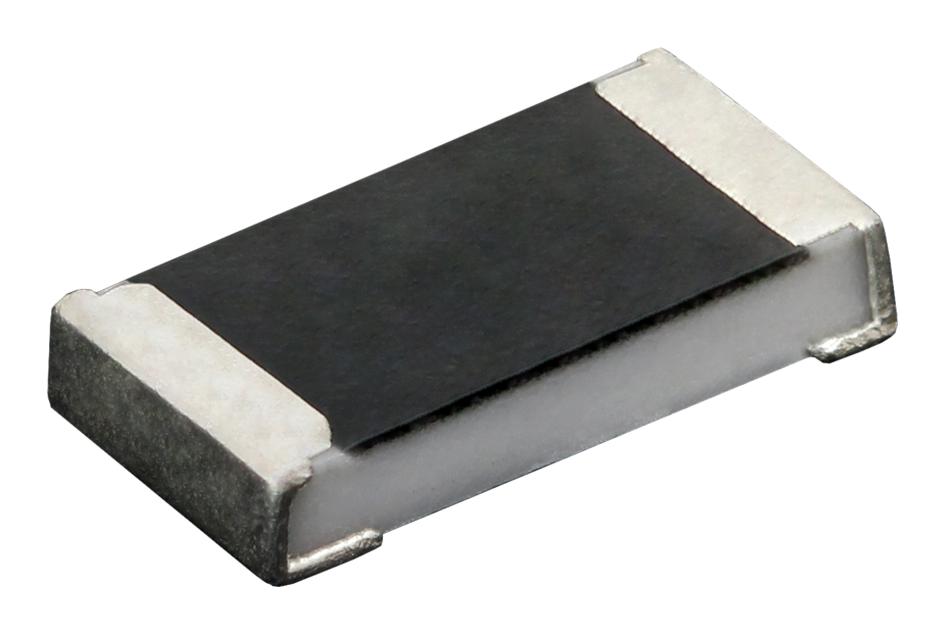

Vishay RCS08052K20FKEA High-Power Thick Film Resistor
The RCS0805 100 ohm resistor is a high-power, anti-surge thick film chip component designed for demanding automotive, industrial, and telecommunications applications. Manufactured with a ceramic substrate and protective coatings, it offers excellent surge pulse capability, stability under various environmental conditions, and RoHS compliance. The resistor features a resistance tolerance of 1% with a temperature coefficient of 200 ppm/K. Suitable for automatic mounting and compatible with lead-free soldering, it delivers reliable performance in high-stress electrical environments, ensuring longevity and safety in complex electronic systems.
Vishay RCS08052K20FKEA High-Power Thick Film Resistor Specifications:
- Size: RCS0805 e3, Dimensions: Length 2.0 mm, Width 1.25 mm, Height 0.45 mm
- Resistance Range: 10 to 10M ohms, Resistance Tolerance: ±1%
- Temperature Coefficient: 200 ppm/K, Rated Dissipation: 0.4W
- Operating Voltage: 150V max, Permissible film temperature: 155°C
- Operating Temperature Range: -55°C to +155°C
- Material: Ceramic substrate with cermet film, Protective coating, Pure tin on nickel plating termination
- Surge Pulse Capability: Excellent, Suitable for high pulse load applications
- Compliance: RoHS, AEC-Q200 qualified, Reliability tested for automotive standards
- Thermal Resistance: Optimized for heat dissipation with stable performance under thermal stress
- Assembly Compatibility: Suitable for wave, reflow, and vapor phase soldering processes
Buy the Vishay Series E3 RCS0805: 100 Ohm Resistor 1% Tolerance
Purchase the Vishay Series E3 RCS0805 100 ohm resistor online today for reliable high-power surge handling in your electronic designs. Designed for automotive, industrial, and telecommunication applications, this resistor offers exceptional surge pulse capability, stability across a wide temperature range, and RoHS compliance. Its compact size and compatibility with automatic assembly processes make it ideal for modern SMD manufacturing. With a resistance tolerance of 1% and a temperature coefficient of 200 ppm/K, it ensures precise and stable operation under demanding electrical conditions. Elevate your circuit reliability—buy now for high-performance, durable resistors that meet industrial standards.
Order your Vishay Series E3 RCS0805 100 ohm resistor today and give your projects the dependable high-power performance they deserve.
Frequently Asked Questions
Where can I buy Vishay RCS08052K20FKEA?
You can click on the BUY or RFQ button to purchase RCS08052K20FKEA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part RCS08052K20FKEA?
You can download the RCS08052K20FKEA datasheet or visit the Vishay website for support.
Who is the manufacturer of RCS08052K20FKEA?
Vishay
