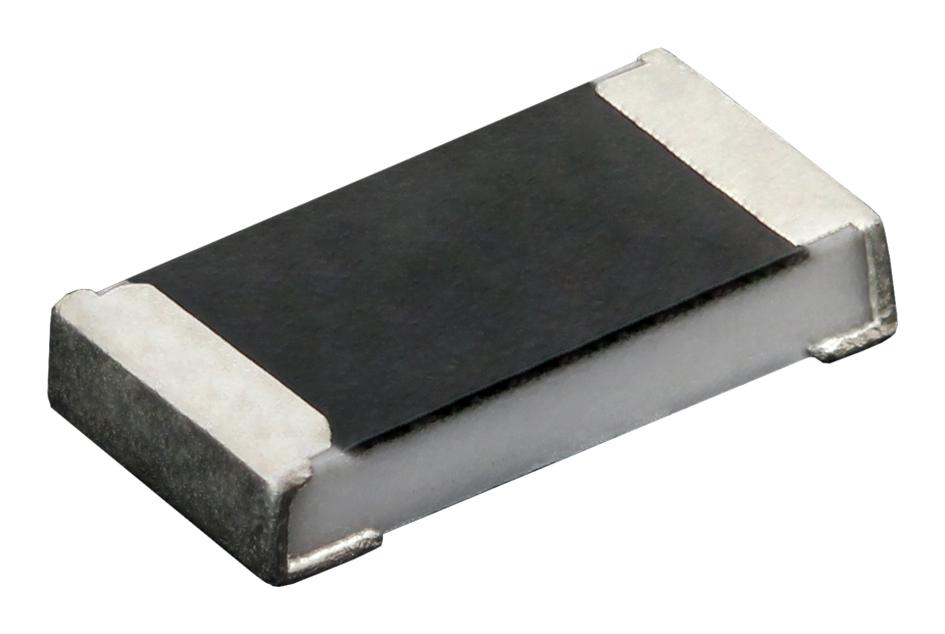

Vishay RCS0805499RFKEA High Power Thick Film Chip Resistor
The RCS e3 series consists of high power, anti-surge thick film chip resistors designed for automotive, industrial, and telecommunication applications. Featuring excellent surge pulse capabilities, superior ESD surge characteristics, and RoHS compliance, these resistors provide reliable performance under high pulse load conditions. Constructed on a ceramic substrate with a cermet film layer and protected by a glass-over coating, they are suitable for automatic SMD assembly, with resistance values ranging from 1.9 to 10 MΩ. The resistors have a maximum operating temperature of +155°C, thermal stability, and are qualified per AEC-Q200 standards.
Vishay RCS0805499RFKEA High Power Thick Film Chip Resistor Specifications:
- Size: RCS0402, RCS0603, RCS0805, RCS1206
- Resistance range: 1.9 to 10 MΩ
- Resistance tolerance: ±0.5%, ±1%, ±20%
- Temperature coefficient: 100 ppm/K or 200 ppm/K
- Rated dissipation: 0.2W to 0.5W depending on size
- Operating voltage: 50V to 200V
- Maximum film temperature: 155°C
- Operating temperature range: -55°C to +155°C
- Dimensions (mm): RCS0402 - 1.0x0.5, RCS0603 - 1.55x0.85, RCS0805 - 2.0x1.25, RCS1206 - 3.2x1.6
- Material: Ceramic with cermet film layer, glass-over coating, pure tin on nickel plating
- Compliance: RoHS, AEC-Q200 qualified
- Packaging options: Tape and reel, various orientations depending on size
- Suitable for wave, reflow, and vapor phase soldering
- Tested for thermal stability, surge pulse capability, and resistance to environmental stress
Buy the Buy Vishay RCS e3 Part Number RCS0805499RFKEA Online
Order the Vishay RCS0805499RFKEA high power thick film chip resistor online today to ensure your electronic designs benefit from superior surge pulse capability, excellent thermal stability, and RoHS compliance. Perfect for automotive and industrial applications, this resistor offers reliable performance under high pulse loads with resistance values from 1.9 to 10 MΩ, temperature stability, and suitability for automatic assembly processes. Get it now to enhance your project's durability and performance.
Buy Vishay RCS0805499RFKEA now and experience reliable high power surge resistance with excellent pulse load capability for demanding applications.
Frequently Asked Questions
Where can I buy Vishay RCS0805499RFKEA?
You can click on the BUY or RFQ button to purchase RCS0805499RFKEA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part RCS0805499RFKEA?
You can download the RCS0805499RFKEA datasheet or visit the Vishay website for support.
Who is the manufacturer of RCS0805499RFKEA?
Vishay
