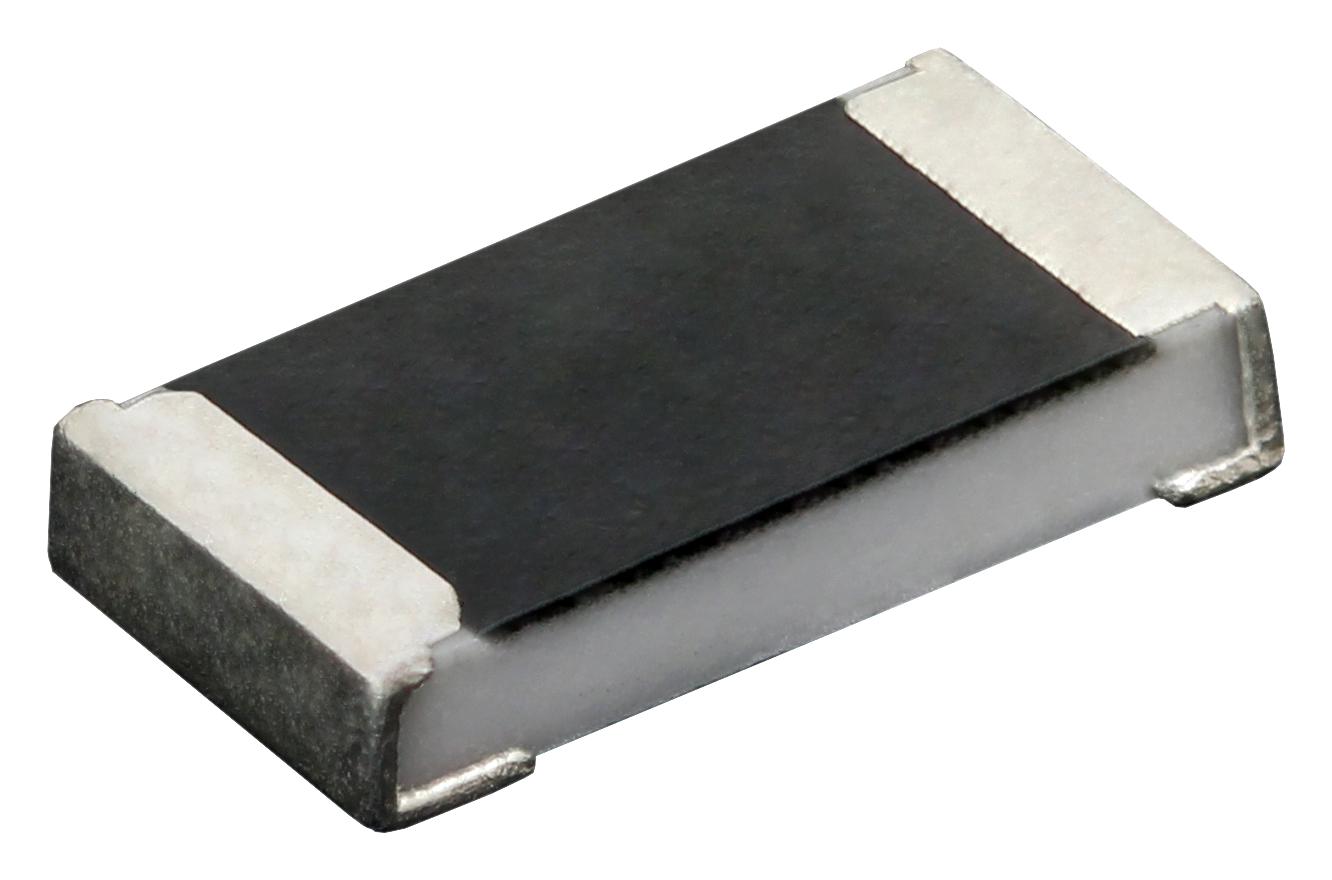

Vishay RCS120647R0JNEA High Power Thick Film Resistor
The RCS1206 e3 series resistor from Vishay is a high power, anti-surge thick film chip resistor designed for automotive, industrial, and telecommunications applications. Featuring excellent surge pulse capability and a high power rating, it provides reliable performance under pulse loads and high-temperature conditions. Constructed on a ceramic substrate with protective coatings, it is RoHS-compliant, suitable for automated processing, and can withstand reflow and wave soldering. Its resistance range spans from 1.9 to 10 MΩ with 1% tolerance, and it offers exceptional pulse handling, making it ideal for power and pulse load applications in demanding environments.
Vishay RCS120647R0JNEA High Power Thick Film Resistor Specifications:
- Size: 1206 (3.2 mm x 1.6 mm x 0.55 mm)
- Resistance Range: 1.9 to 10 MΩ
- Resistance Tolerance: 1%
- Temperature Coefficient: + 200 ppm/K or + 100 ppm/K
- Rated Dissipation: 0.5 W
- Maximum Operating Voltage: 200 V
- Film Temperature: Max 155°C
- Operating Temperature Range: -55°C to +155°C
- Packaging: IEC 60286-3 Type 1a, typical quantities 10,000 or 20,000 pcs
- Material: Ceramic substrate, protective glass coating, tin-plated nickel terminations
- Compliance: RoHS, AEC-Q200 qualified
- Soldering: Suitable for wave, reflow, and vapor phase soldering
- Vibration, Temperature Cycling, Damp Heat: meets IEC standards
Buy the Vishay Series RCS e3 Thick Film Resistor: 1206 10MΩ 1%
Discover the Vishay RCS1206 e3 series high power thick film resistor, offering resistance from 1.9 to 10 MΩ with 1% tolerance. Built on a ceramic substrate with protective coatings, it withstands high surge pulses and operating temperatures up to 155°C. Its robust design makes it perfect for automotive, industrial, and telecommunications applications requiring dependable pulse load handling. Suitable for automatic SMD assembly, reflow, and wave soldering, this RoHS-compliant resistor guarantees long-term stability and excellent electrical performance in harsh environments, ensuring your project’s reliability and durability.
Order your Vishay Series RCS1206 e3 high power resistor today and ensure reliable pulse and surge performance for demanding industrial and automotive projects.
Frequently Asked Questions
Where can I buy Vishay RCS120647R0JNEA?
You can click on the BUY or RFQ button to purchase RCS120647R0JNEA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part RCS120647R0JNEA?
You can download the RCS120647R0JNEA datasheet or visit the Vishay website for support.
Who is the manufacturer of RCS120647R0JNEA?
Vishay
