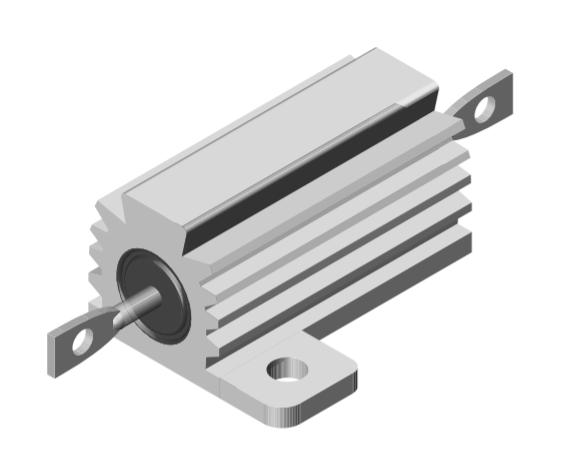

Vishay RH05040R00FE02 High Power Resistor
This high power resistor is designed for applications requiring substantial current handling and heat dissipation. It offers reliable performance in power electronic circuits, enabling stable operation under high power conditions.
Vishay RH05040R00FE02 High Power Resistor Specifications:
- Power Rating: RHO05 and RHO10: 4" x 6" x 2" x 0.040" thick aluminum chassis (129 sq. in. surface area), RH025: 5" x 7" x 2" x 0.040" (167 sq. in.), RHO50: 12" x 12" x 0.059" (291 sq. in.), RH100 and RH250: 12" x 12" x 0.125" (294 sq. in.)
- Resistance Range: 0.5 to 116K Ohms, with tolerance options of ±1%, ±5%, typical resistance values from 0.5 ohms to 116K ohms
- Temperature Coefficient: 20 ppm/°C for 10Ω and above, +50 ppm/°C for 10Ω to 9.9Ω, +100 ppm/°C for 0.12Ω
- Maximum Working Voltage: 1000 V for RHOOS, RHO10, RHO25; 2000 V for RHO50; 4500 V for RH100 and RH250
- Operating Temperature Range: -55°C to +250°C, with deratings above 25°C based on heat sink and ambient conditions
- Insulation Resistance: ≥10 MΩ dry, ≥1000 MΩ after moisture test, Meets ANSI J-STD-002 solderability standard
- Material: Copper-nickel or nickel-chrome alloy, encapsulated in silicone molded construction, housed in aluminum with hard anodic coating, stainless steel end caps
- Dimensions: Vary by model, e.g., RHO05: 0.444" x 0.490" x 0.600", RHO10: 0.562" x 0.625" x 0.750", RHO25: 0.719" x 0.781" x 1.062", RHO50: 1.562" x 0.844" x 1.968", RH100/250: 0.188" thick stainless steel nut and stud, various lengths as specified
Buy the Buy Vishay RH05040R00FE02 High Power Resistor Part Number RH05040R00FE02 Online
Purchase the Vishay RH05040R00FE02 online today and benefit from a durable high power resistor designed to handle substantial current and heat dissipation. Ideal for robust power electronic circuits, it ensures stable operation under demanding conditions. Its reliable construction uses high-quality materials like copper-nickel or nickel-chrome alloy encased in silicone molded housing, ensuring excellent thermal stability and long-term performance. Order now to enhance your power management systems with this dependable, high-performance resistor.
Buy Vishay RH05040R00FE02 high power resistor now and experience unmatched reliability and heat dissipation in power electronic applications.
Frequently Asked Questions
Where can I buy Vishay RH05040R00FE02?
You can click on the BUY or RFQ button to purchase RH05040R00FE02 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part RH05040R00FE02?
You can download the RH05040R00FE02 datasheet or visit the Vishay website for support.
Who is the manufacturer of RH05040R00FE02?
Vishay
