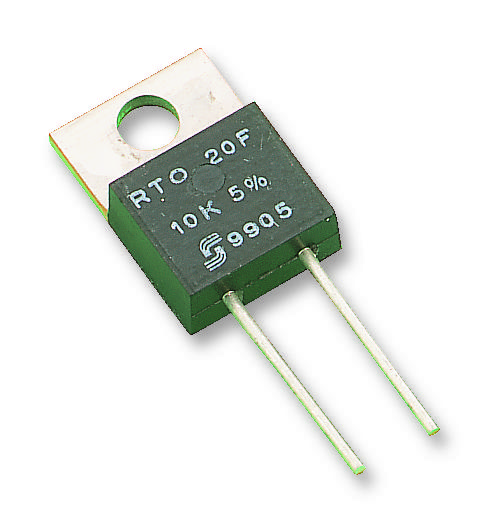

Vishay RTO050F15000JTE1 High Power Resistor
The RTO 50 is a high-power resistor designed with thick film technology housed in a TO-220 package, capable of dissipating 50 W when mounted on a heatsink. Features include adjustable resistance via sand trimming for reliability and stability, high power-to-size ratio, non-inductive design, and RoHS compliance. Available in leaded or surface-mount versions, it is suitable for demanding applications requiring stabilized resistance, thermal stability, and efficient heat dissipation in industrial circuitry. It handles voltages up to 500V with resistance values from 0.010 to 550K ohms and withstands temperatures from -55°C to 155°C.
Vishay RTO050F15000JTE1 High Power Resistor Specifications:
- Power Rating: 50 W at 25°C with heatsink, 2.25 W in free air at +25°C
- Resistance Range: 0.010 to 550K ohms (E24 series)
- Resistance Tolerance: ±1%, ±2%, ±5%, or custom
- Temperature Coefficient: from +900 ppm/°C to +150 ppm/°C depending on resistance
- Maximum Voltage: 500 V
- Operating Temperature Range: -55°C to +155°C
- Mechanical Dimensions: TO-220 package, specific sizes 45 mm length, 13 mm width
- Dielectric Strength: 2000 V for 1 minute
- Insulation Resistance: 10^8 MΩ
- Sealing: Sealed container, solder immersion compatible
- Environmental Grade: MIL STD 202 (301), Climatic Category 55/155/156
Buy the Vishay Series RTO 50 Resistor: 50W High Power Thick Film Technology
Discover the reliable Vishay Series RTO 50 resistor, offering 50W power dissipation with thick film technology in a compact TO-220 package. Its adjustable resistance via sand trimming guarantees stability and high overload capability, perfect for industrial and power electronics. Suitable for thermal management with heatsink mounting, it withstands high voltages up to 500V and operates in a wide temperature range from -55°C to 155°C. Secure your supply of durable, RoHS-compliant resistors today by purchasing online for excellent performance and value.
Order your Vishay Series RTO 50 resistor today and ensure dependable high power performance with stable resistance in industrial applications.
Frequently Asked Questions
Where can I buy Vishay RTO050F15000JTE1?
You can click on the BUY or RFQ button to purchase RTO050F15000JTE1 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part RTO050F15000JTE1?
You can download the RTO050F15000JTE1 datasheet or visit the Vishay website for support.
Who is the manufacturer of RTO050F15000JTE1?
Vishay
