Vishay SIA483ADJT1GE3 Power MOSFET
The Vishay Siliconix SiA483ADJ is a P-Channel 30 V power MOSFET in a thermally enhanced PowerPAK SC-70 package, suitable for switching applications such as battery management, load switching, and power management in compact devices. It features low Rds(on) of 0.020 Ω at Ves = -10 V and 0.033 Ω at Ves = -4.5 V, with a typical gate charge of 8.3 nC. This device is RoHS compliant, halogen-free, and designed for high efficiency, offering excellent thermal performance and high current handling up to -12 A continuous drain current.
Vishay SIA483ADJT1GE3 Power MOSFET Specifications:
- Drain-source voltage Vos: -30 V
- Gate-source voltage Ves: -20/+16 V
- Continuous drain current ID: -12 A at 25°C
- Pulsed drain current Ibm: -60 A
- Maximum power dissipation Pp: 34 W
- Maximum junction temperature Tj: -55 to +150 °C
- Thermal resistance junction-to-ambient RθJA: 37 °C/W
- On-resistance Rds(on): 0.020 Ω at Ves = -10 V, 0.033 Ω at Ves = -4.5 V
- Gate charge Qg: 8.3 nC
- Input capacitance Ciss: 950 pF
- Reverse transfer capacitance Crss: 50 pF
- Body diode voltage Vsd: 0.85 to -1.2 V
- Body diode reverse recovery time trr: 19 ns
- Package: PowerPAK SC-70, lead-free, halogen-free
- Operating temperature range: -55°C to +150°C
- Maximum Soldering Temperature: 260°C

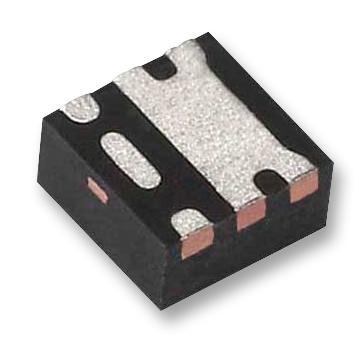

Buy the Buy Vishay Siliconix SiA483ADJ Part Number SIA483ADJ Online
Purchase the Vishay Siliconix SiA483ADJ today online to ensure dependable power switching in your electronic projects. This P-Channel MOSFET in a compact PowerPAK SC-70 package offers low on-resistance, high current capacity, and excellent thermal management, making it ideal for battery management, load switching, and power conversion. Its high efficiency and RoHS compliance allow for environmentally friendly and reliable circuit design. Order now and improve your device performance with proven Vishay quality and fast delivery.
Order your Vishay Siliconix SiA483ADJ Morf MOSFET today and enhance your power management and switching efficiency with reliable performance.
