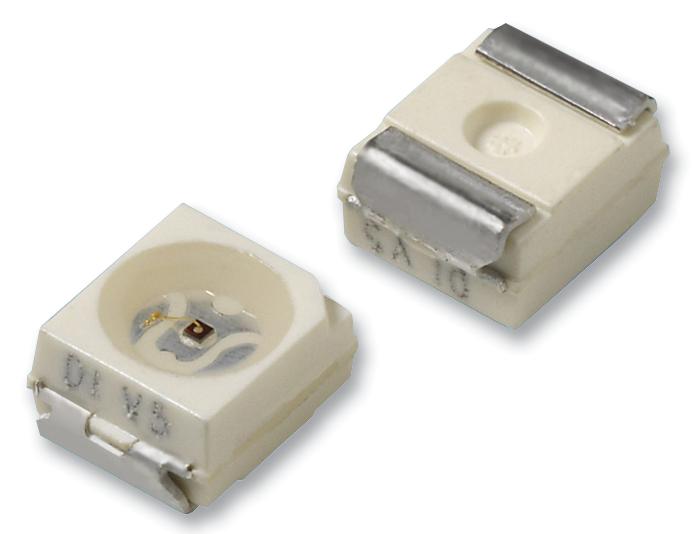

Vishay VLMB41P1Q2GS18 Surface-mount Blue LED
The VLMB41P1Q2-GS18 is a surface-mount blue LED ideal for backlighting in office equipment, message boards, LCD displays, switches, and symbols. It features a lead frame embedded in white thermoplastic with a reflector filled with clear epoxy, ensuring high luminous efficiency. Compatible with IR reflow, vapor phase, and wave soldering processes per CECC 00802 and J-STD-020, it employs high-efficiency InGaN on sapphire technology. This LED offers up to 2kV ESD withstand voltage, consumes 84mW power, and adheres to RoHS, making it suitable for automotive, communication, and general illumination applications.
Vishay VLMB41P1Q2GS18 Surface-mount Blue LED Specifications:
- Package: SMD PLCC-2
- Material: Lead frame embedded in white thermoplastic with internal reflector filled with clear epoxy
- Technology: InGaN on sapphire
- Luminous Intensity: 90 mcd typical at 10 mA
- Wavelength: 462-476 nm; Dominant wavelength: 469 nm
- Forward Voltage: ~3.2V at 10 mA
- Reverse operation: Not designed for reverse operation
- ESD withstand voltage: Up to 2kV
- Power Dissipation: 84 mW
- Operating Temperature Range: -40°C to +100°C
- Storage Temperature Range: -40°C to +100°C
- Mounting: Compatible with IR reflow, vapor phase, wave soldering
- Reel Size: GS18 with 8000 pcs, tape width 12.75 mm
- Moisture Sensitivity: Dry pack, shelf life 12 months at 40°C/90% RH; bake options available
- Certification: Halogen-free, RoHS compliant, JEDEC level 2a preconditioning
- Physical Dimensions: See Vishay datasheet dimensions
- Thermal Resistance Junction/Ambient: 360 K/W
Buy the Buy Vishay VLMB41P1Q2-GS18 Part Number VLMB41P1Q2-GS18 Online
Purchase the Vishay VLMB41P1Q2-GS18 today online to benefit from its high luminous efficiency and robust design. Ideal for backlighting in office equipment, message boards, LCD displays, switches, and symbols, this LED employs advanced InGaN technology on sapphire substrate. It supports IR reflow, vapor phase, and wave soldering processes, ensuring reliable assembly. With up to 2kV ESD protection, 84mW power consumption, and RoHS compliance, it offers excellent performance across automotive, communication, and general illumination applications. Buy now for long-lasting, reliable performance in your electronic projects.
Get Vishay VLMB41P1Q2-GS18 today—high-efficiency blue LED for backlighting, designed for durability and precise illumination.
Frequently Asked Questions
Where can I buy Vishay VLMB41P1Q2GS18?
You can click on the BUY or RFQ button to purchase VLMB41P1Q2GS18 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VLMB41P1Q2GS18?
You can download the VLMB41P1Q2GS18 datasheet or visit the Vishay website for support.
Who is the manufacturer of VLMB41P1Q2GS18?
Vishay
