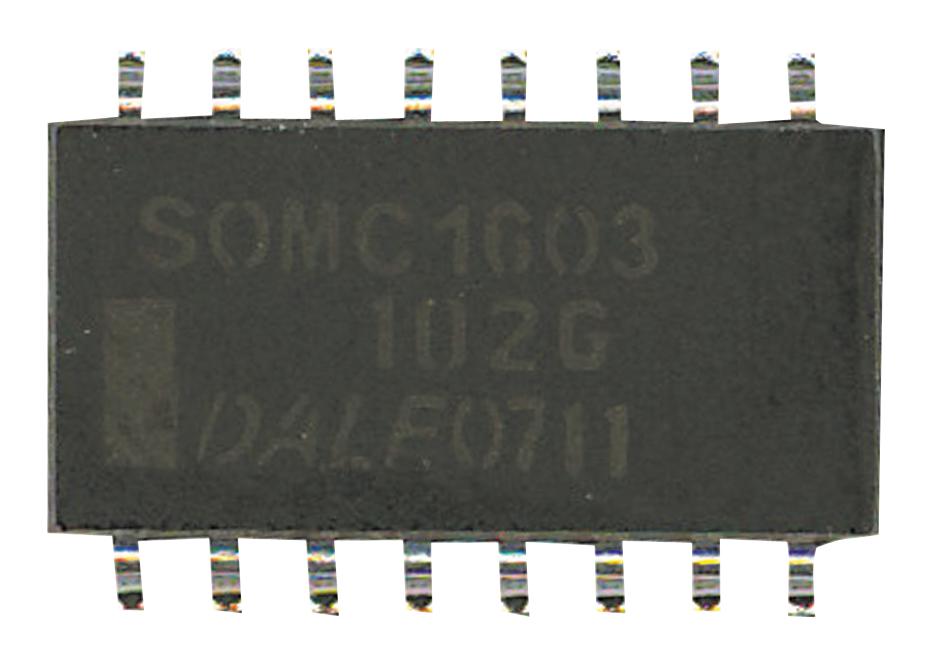

Vishay SOMC1603470RGDC Resistor Network
This Vishay Dale Thick Film Resistor Networks are available in dual-in-line, surface mount, molded DIP packages with 14, 16, or 20 terminals. Featuring isolated, bussed, and dual terminator schematics, they provide reliable performance in various industrial applications. Constructed with thick film resistive elements and RoHS-compliance, these resistor networks are reflow solderable and compatible with automatic surface mounting equipment. They support high power ratings, wide temperature ranges, and offer options for different tolerance levels, making them suitable for high-speed digital, line termination, and circuit protection tasks.
Vishay SOMC1603470RGDC Resistor Network Specifications:
- Package: Dual-In-Line, Molded DIP, Surface Mount
- Terminals: 14, 16, or 20
- Construction: Molded case
- Resistive Elements: Thick film
- Reflow Solderable: Yes
- RoHS Compliant: Yes
- Temperature Range: -55°C to +125°C
- Power Rating: 0.08W, 0.16W, 0.08W depending on circuit, at 70°C
- Maximum Solder Reflow Temperature: +255°C
- Insulation Voltage: 200V (T min)
- Resistance Range: Up to 2.2MΩ
- Tolerances: ±1%, ±2%, ±5% available
- Impedance Codes: Various, from 82Ω to 6.2KΩ
- Mechanical Durability: Resistance to soldering heat, vibration, shocks, and solvents
- Marking: Model, schematic, value, tolerance, date code
- Additional: Connectors are copper alloy, solder dipped; molded epoxy body
Buy the Vishay Dale SOMC1603470RGDC – Reliable Resistor Networks for Industrial Applications
Discover the Vishay Dale resistor network in the SOMC1603470RGDC series, offering high reliability for industrial electronics and circuit protection. Perfect for digital, line termination, and high-speed applications, these surface-mount networks are RoHS-compliant, reflow solderable, and constructed with durable thick film resistive elements. With multiple terminal options and precise impedance, they optimize performance across a wide temperature range. Buy online today to ensure your projects incorporate trusted, high-quality resistor networks tailored for demanding industrial environments.
Order your Vishay Series SOMC1603470RGDC resistor network today and equip your circuits with dependable, high-performance electronic components designed for industrial use.
Frequently Asked Questions
Where can I buy Vishay SOMC1603470RGDC?
You can click on the BUY or RFQ button to purchase SOMC1603470RGDC from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part SOMC1603470RGDC?
You can download the SOMC1603470RGDC datasheet or visit the Vishay website for support.
Who is the manufacturer of SOMC1603470RGDC?
Vishay
