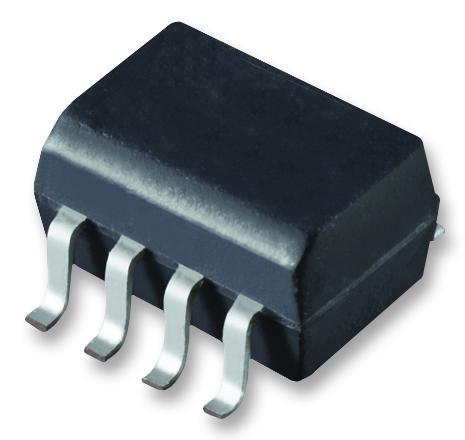

Vishay VOD213T Dual-Channel Phototransistor Optocoupler
The VOD213T is a dual-channel, 8-pin phototransistor optocoupler that uses gallium arsenide infrared LEDs and silicon NPN phototransistors. It is designed to transmit signal information, including DC signals, while providing high electrical isolation between input and output. The device is compatible with various soldering methods such as dual wave, vapor phase, and IR reflow soldering. It features a standard lead spacing of 0.05 inches and can withstand a peak reverse voltage of 6V. This optocoupler is suitable for signal processing applications.
Vishay VOD213T Dual-Channel Phototransistor Optocoupler Specifications:
- Package: SOIC-8 surface mount
- Lead Spacing: 0.05 inches
- Isolation Test Voltage: 4000 Vms
- Peak Reverse Voltage: 6V
- Peak Pulsed Current: 1A
- Continuous Forward Current per Channel: 30mA
- Power Dissipation: 50mW per channel
- Collector Emitter Breakdown Voltage: 70V
- Emitter Collector Breakdown Voltage: 7V
- Output Current: Max 50mA
- Soldering: Compatible with dual wave, vapor phase, IR reflow
- Storage Temperature: -40°C to +150°C
- Operating Temperature: -40°C to +100°C
- Connector Power Dissipation: 125mW per channel
- Input Forward Voltage at 10mA: 1.2V to 1.55V
- Output Capacitance: 10pF
- Isolation Voltage: 560V
- Climatic Classification: 40/100/21
- Pollution Degree: 2
- Insulation Thickness: 0.2mm
Buy the Vishay VOD213T – Reliable Dual-Channel Optocoupler for Industrial Applications
Purchase the Vishay VOD213T online today to ensure high electrical isolation and reliable signal transmission in your industrial automation and control systems. This dual-channel optocoupler features a compact SOIC-8 package, compatible with multiple soldering techniques. Its robust construction provides a peak isolation voltage of 4000Vms and withstands continuous operation up to 100°C. Ideal for signal processing, data isolation, and industrial control applications, this device guarantees durability, compatibility, and superior electrical performance for demanding environments.
Buy Vishay VOD213T now and experience top-level electrical isolation and signal transmission performance for industrial control systems.
Frequently Asked Questions
Where can I buy Vishay VOD213T?
You can click on the BUY or RFQ button to purchase VOD213T from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VOD213T?
You can download the VOD213T datasheet or visit the Vishay website for support.
Who is the manufacturer of VOD213T?
Vishay
