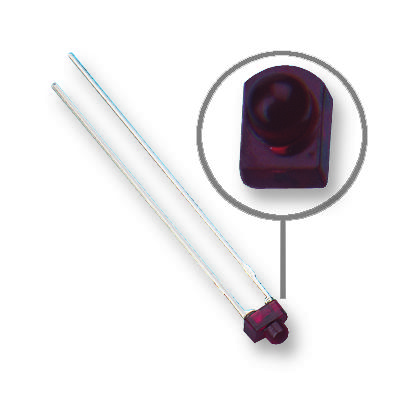

Vishay TLUR2401 Indicator LED
The TLUR2401 is a versatile indicator LED with a 1.8mm diffused package, ideal for general illumination and signaling. It supports DC and pulsed operation, with a maximum reverse voltage of 6V and a power dissipation of 60mW. This LED is made using GaAsP on GaP technology, providing reliable luminous output with a viewing angle of ±20°. Suitable for stacking in compact arrays due to its end-to-end design, it is environmentally friendly and compliant with RoHS standards, making it an excellent choice for diverse lighting and indication applications.
Vishay TLUR2401 Indicator LED Specifications:
- Package: 1.8 mm diffused Miniplast
- Technology: GaAsP on GaP
- Reverse Voltage: 6 V
- DC Forward Current: 20 mA
- Surge Forward Current: 5 A (t<10 us)
- Power Dissipation: 60 mW
- Junction Temperature: 100 °C
- Operating Temperature Range: -40 to +100 °C
- Storage Temperature Range: -55 to +100 °C
- Viewing Angle: ±20°
- Luminous Intensity Classification: R 10-20 med
- Wavelength: 630 nm
- Peak Wavelength: 640 nm
Buy the Buy Vishay Universal LED Part Number TLUR2401 Online
Enhance your electronic projects with the Vishay TLUR2401 indicator LED, offering reliable performance, an efficient 1.8mm diffused package, and RoHS compliance. Perfect for signaling, lighting, and general indication uses, it provides a maximum reverse voltage of 6V and a power dissipation of 60mW. Its GaAsP on GaP technology ensures bright, consistent illumination with a viewing angle of ±20°, suitable for compact device integration. Purchase online easily and secure a dependable lighting component for your applications.
Order your Vishay Series TLUR2401 LED today and enhance your projects with reliable, high-quality indication lighting solutions.
Frequently Asked Questions
Where can I buy Vishay TLUR2401?
You can click on the BUY or RFQ button to purchase TLUR2401 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part TLUR2401?
You can download the TLUR2401 datasheet or visit the Vishay website for support.
Who is the manufacturer of TLUR2401?
Vishay
