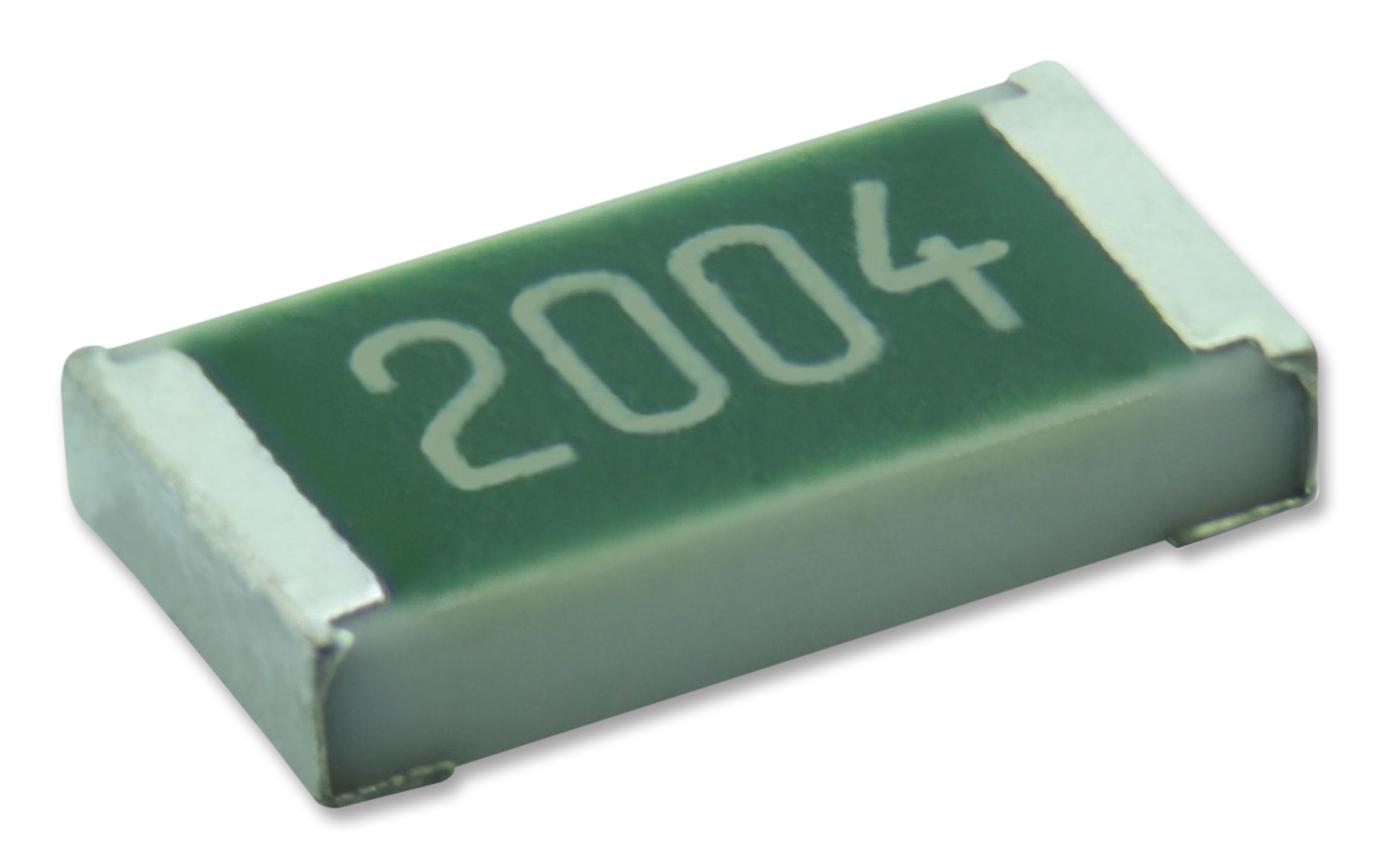

Vishay TNPV12062M00BEEN High Voltage Thin Film Resistor
The TNPV series high-voltage thin film flat chip resistor offers superior precision, stability, and high operating voltage up to 1000V. Designed for modern electronics, it excels in high-voltage environments such as industrial and automotive inverters, battery management systems, and test equipment. Manufactured with a homogeneous metal alloy film on ceramic substrates, it ensures reliable performance over long periods. Its robust construction and extensive testing guarantee minimal resistance drift, while compatibility with automated assembly and RoHS compliance make it ideal for demanding applications needing high reliability and stability.
Vishay TNPV12062M00BEEN High Voltage Thin Film Resistor Specifications:
- Size: 1206 and 1210
- Resistance Range: 160 kΩ to 2 MΩ (1206), 121 kΩ to 3.0 MΩ (1210)
- Tolerance: ±1%, ±0.5%, ±0.1%
- Temperature Coefficient: +50 ppm/K, +25 ppm/K, +15 ppm/K, +10 ppm/K
- Rated Dissipation: 0.25 W (1206), 0.33 W (1210)
- Maximum Operating Voltage: 700 V (1206), 4000 V (1210)
- Permissible Film Temperature: 155°C
- Operating Temperature Range: -55°C to 125°C
- Resistance Drift (1000 hours): <0.05%
- Material: Homogeneous metal alloy on ceramic substrate
- Compliance: RoHS, Halogen-free
- Dimensions: For 1206 - H: 0.55±0.1 mm, L: 3.2+0.1/-0.2 mm, W: 1.6+0.16 mm; For 1210 - H: 0.60+0.15 mm, L: 3.24+0.1/-0.2 mm, W: 2.45+0.15 mm
- Solder Pad Dimensions: 09x17 mm (1206), 09x25 mm (1210)
- Application: High-voltage measurement, industrial inverters, battery management, test equipment
Buy the Vishay Series TNPV High Voltage Thin Film Resistors: TNPV1206
Order the Vishay TNPV1206 high-voltage thin film resistor online today and ensure your circuits operate with superior stability and precision at voltages up to 1000V. Designed for automotive, industrial, and measurement applications, this resistor guarantees long-term reliability, minimal resistance drift, and excellent environmental resistance. With RoHS compliance and RoHS-friendly lead-free termination, it is suitable for automated SMD assembly. Purchase now and enhance your electronic designs with high-performance, stable, and robust high-voltage protection.
Buy Vishay TNPV1206 high-voltage thin film resistor now and experience unmatched reliability, stability, and efficiency in demanding high-voltage applications.
