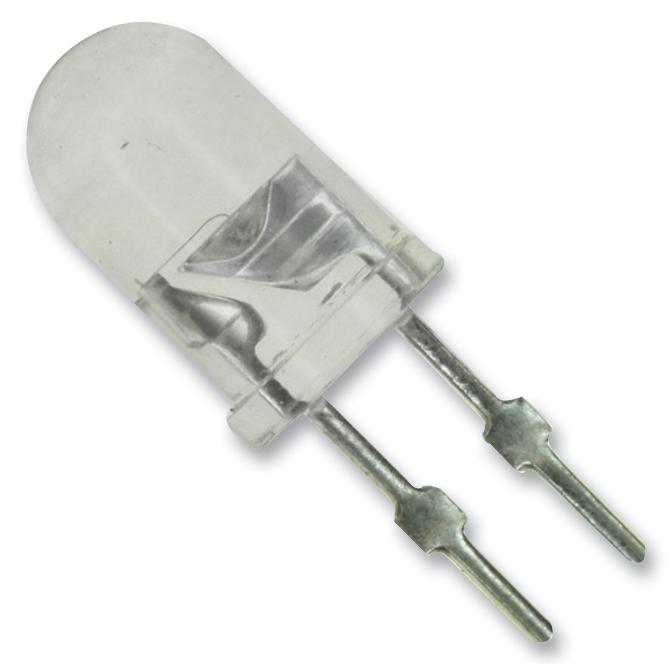

Vishay TSHG8200 Infrared Light Emitter
TSHG8200 is a high-speed infrared emitting diode with a wavelength of 830 nm, designed using GaAlAs double hetero technology. Encased in a clear plastic package, it offers high radiant power and intensity, making it suitable for CMOS camera illumination, infrared data transmission, and fire detection. It operates reliably within temperature ranges of -40°C to +85°C and features low forward voltage and high modulation bandwidth. Ideal for applications requiring high pulse current operation and good spectral matching with CMOS sensors, the diode ensures consistent performance and compliance with RoHS standards.
Vishay TSHG8200 Infrared Light Emitter Specifications:
- Peak wavelength: 830 nm
- Radiant power: 180 mW/sr at +10°
- Forward voltage: typical 1.5 V at 100 mA, 2.3 V at 1 A
- Peak forward current: 200 mA
- Power dissipation: 180 mW
- Operating temperature range: -40°C to +85°C
- Storage temperature range: -40°C to +100°C
- Soldering temperature: 260°C for 5 seconds
- Spectral bandwidth: 40 nm
- Angle of half intensity: ±10°
- Peak wavelength stability: ±0.25 nm/K
- Rise time: 20 ns
- Fall time: 13 ns
- Reverse voltage: 5 V
- Junction capacitance: 125 pF
- Thermal resistance junction/ambient: approx. 230 K/W
Buy the Vishay Series TSHG8200 Infrared Diode: 830 nm High Power IR Emitter
Order the Vishay TSHG8200 infrared diode today and enhance your infrared communication, fire detection, and CMOS camera illumination projects with reliable, high-speed performance. This high radiant power IR emitter offers excellent spectral matching, low forward voltage, and robust operating parameters suitable for high pulse current applications. With RoHS compliance and a compact package, it ensures efficient integration into your design. Purchase online now to benefit from fast delivery and competitive prices on this advanced infrared emission component.
Buy Vishay TSHG8200 infrared diode now and experience high radiant power, fast modulation, and excellent performance for infrared communication and detection systems.
Frequently Asked Questions
Where can I buy Vishay TSHG8200?
You can click on the BUY or RFQ button to purchase TSHG8200 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part TSHG8200?
You can download the TSHG8200 datasheet or visit the Vishay website for support.
Who is the manufacturer of TSHG8200?
Vishay
