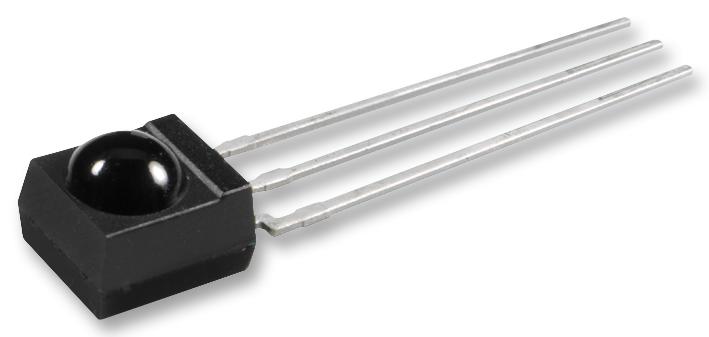

Vishay TSOP14438 IR Receiver Module
The TSOP14438 is a compact IR receiver module designed for remote control systems, with high sensitivity and immunity against optical disturbances like fluorescent and Wi-Fi interference. It contains a PIN diode and preamplifier, with an integrated IR filter, suitable for 38 kHz carrier frequency signals. The device operates on 2.5V to 5.5V supply, has low current consumption, and universal applications in remote control technology, ensuring reliable, noise-resistant signal reception for consumer electronics and automation systems.
Vishay TSOP14438 IR Receiver Module Specifications:
- Supply voltage: 2.5 V to 5.5 V
- Supply current: 0.55 to 0.90 mA
- Output voltage: -0.3 to (Vs + 0.3) V
- Output current: up to 5 mA
- Detection range: approximately 30 meters with IR LED
- Package dimensions: 6.0 mm W x 6.95 mm H x 5.6 mm D
- Operating temperature: -25°C to +85°C
- Storage temperature: -25°C to +85°C
- Power consumption: < 10 mW at 85°C
- Maximum junction temperature: 100°C
- IR carrier frequency: 38 kHz
- Designed with internal filter for PCM frequency
- Pin configuration: OUT, GND, Vcc
Buy the Vishay Series IR Receiver Module: TSOP14438
Order the Vishay TSOP14438 IR receiver module online today for dependable remote control performance. Its high sensitivity, noise immunity, compact design, and low power consumption make it ideal for consumer electronics and automation systems. Ensure your device stays responsive and accurate in various lighting conditions, thanks to its advanced optical filtering and optimized carrier frequency detection. Purchase online now to experience efficient, long-lasting remote control functionality with professional-grade reliability.
Get Vishay TSOP14438 today—built for reliable remote control signal reception with enhanced immunity against optical and Wi-Fi noise.
Frequently Asked Questions
Where can I buy Vishay TSOP14438?
You can click on the BUY or RFQ button to purchase TSOP14438 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part TSOP14438?
You can download the TSOP14438 datasheet or visit the Vishay website for support.
Who is the manufacturer of TSOP14438?
Vishay
