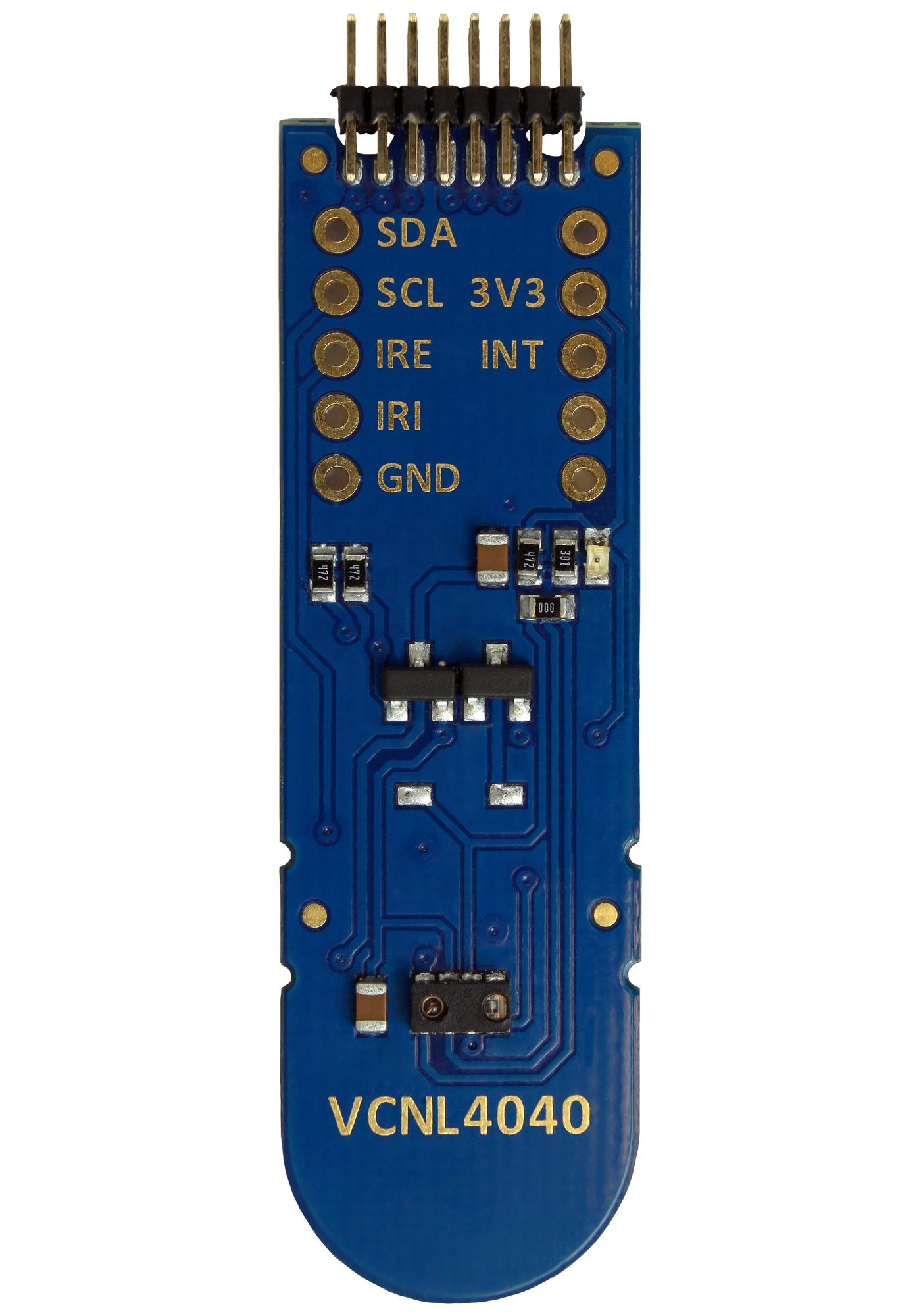

Vishay VCNL4040SB Proximity Ambient Light Sensor
The VCNL4040SB is a fully integrated proximity and ambient light sensor module featuring an infrared emitter, ambient light sensor, proximity sensor, and signal conditioning IC. It operates both ALS and proximity detection in a parallel structure and utilizes Filtron™ technology for robust background light cancellation. The sensor offers immunity to red glow (940nm IRED), with programmable IRED sink current, and includes intelligent cancellation to reduce crosstalk. Its smart persistence scheme minimizes proximity sensor response time, and it is immune to fluorescent light flicker. The spectrum closely matches human eye response. Features include a programmable interrupt function for ALS and proximity sensors with adjustable thresholds and persistence to prevent false triggers. Suitable for use in handheld devices, notebooks, tablets, consumer electronics, and industrial applications.
Vishay VCNL4040SB Proximity Ambient Light Sensor Specifications:
- Package type: surface-mount
- Dimensions: 4.0 x 2.0 x 1.1 mm
- Supply voltage: 2.5 V to 3.6 V
- Operating temperature: -40°C to +85°C
- Ambient light sensing range: up to 6553.5 lux with 0.0125 lux/step resolution
- Proximity detection range: 0 to 200 mm
- ALS resolution: 16-bit, 65,535 counts
- Proximity resolution: 12-bit / 16-bit, 4096 / 65,535 counts
- I2C interface: SMBus compatible, operating frequency up to 400 kHz
- LED drive current: programmable up to 200 mA
- Spectral response: ALS ~550 nm, proximity ~940 nm
- Integration time: 80 ms to 640 ms
- Temperature compensation: Yes
- Reflow soldering profile: peak temperature 260°C for 10s
- Operating current: approx. 200 μA in active mode
- Standby current: minimal, low power consumption
- Hysteresis and threshold adjustment: programmable for ALS and PS
- Noise immunity: fluorescent light flicker immunity, background light cancellation
- Material compliance: RoHS
Buy the Vishay VCNL4040 U+2013 Reliable Proximity and Ambient Light Sensor for Industrial Applications
Order the Vishay VCNL4040 sensor module online today and experience precise proximity and ambient light sensing in a compact, reliable package. Ideal for handheld devices, industrial equipment, and consumer electronics, this integrated sensor combines high sensitivity with programmable thresholds and smart cancellation technology. Its low power consumption and easy I2C interface make it perfect for portable applications requiring accurate environmental detection. Enhance your product’s performance by purchasing the VCNL4040 for durable, efficient sensing solutions.
Get Vishay VCNL4040 today—built for precision and long-lasting durability in sensing applications.
Frequently Asked Questions
Where can I buy Vishay VCNL4040SB?
You can click on the BUY or RFQ button to purchase VCNL4040SB from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VCNL4040SB?
You can download the VCNL4040SB datasheet or visit the Vishay website for support.
Who is the manufacturer of VCNL4040SB?
Vishay
