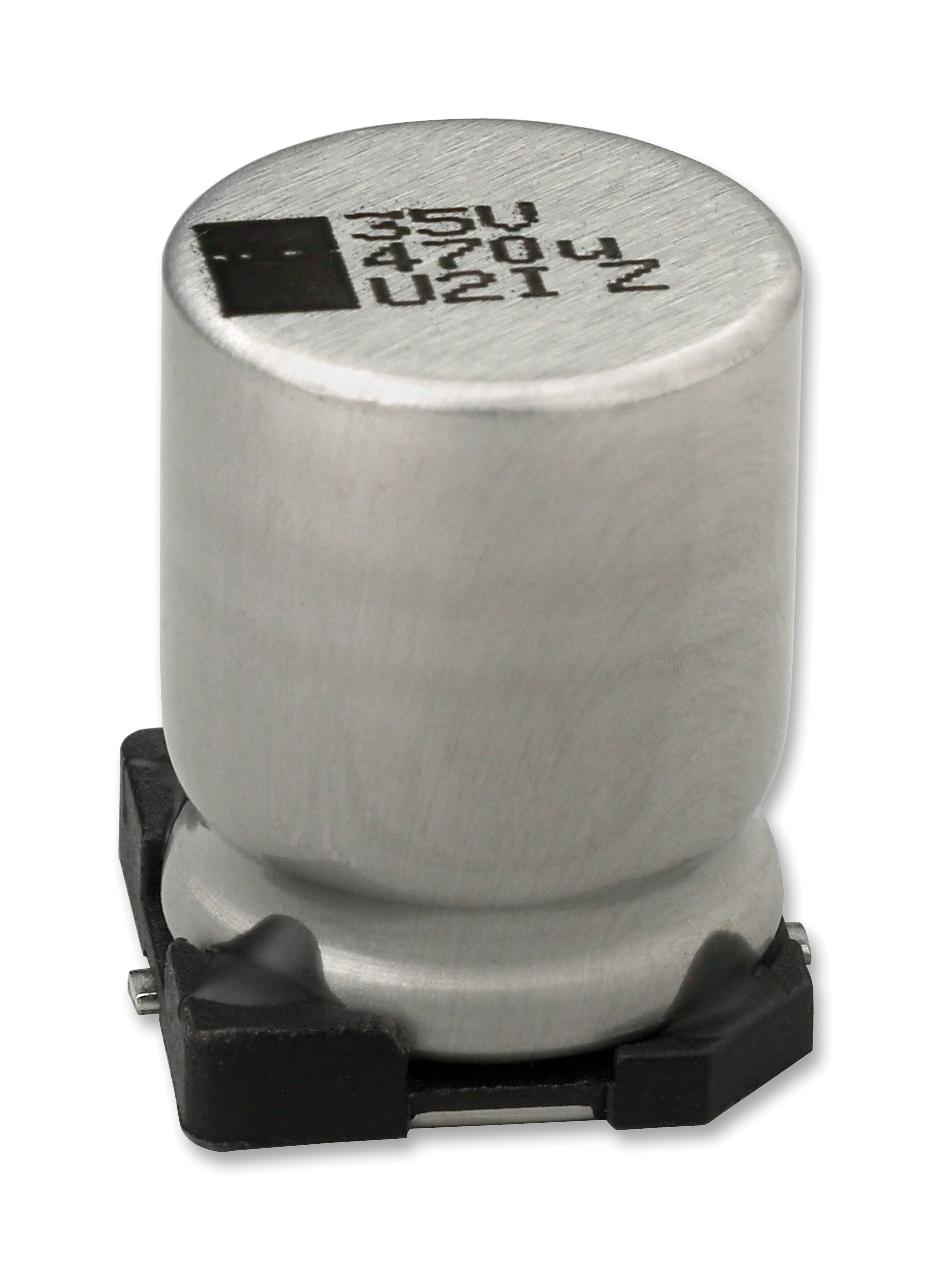

Vishay MAL215099117E3 Aluminum Electrolytic Capacitors
The Vishay 150 CRZ aluminum electrolytic capacitor series features SMD design with very low impedance and high ripple current capabilities. Engineered for high temperature reflow soldering, these polarized capacitors offer extended life up to 10,000 hours at 105°C, with versions qualified for automotive and industrial applications. They include non-solid electrolyte, RoHS compliance, and are suitable for smoothing, filtering, and buffering in high-performance electronic circuits. Available in various sizes, they meet stringent reliability and durability standards, including AEC-Q200 qualification, making them ideal for demanding environments.
Vishay MAL215099117E3 Aluminum Electrolytic Capacitors Specifications:
- Nominal case sizes: 8x8x10 mm to 18x18x21 mm
- Rated capacitance range: 4.7 UF to 10,000 pF
- Tolerance on capacitance: +20%
- Rated voltage range: 6.3 V to 100 V
- Category temperature range: -55°C to +105°C (6.3 V to 63 V); -40°C to +105°C (80 V to 100 V)
- Endurance at 105°C: 2000 to 8000 hours
- Useful life at 105°C: 2500 to 10,000 hours
- Useful life at 40°C: 125,000 to 500,000 hours (at 1.8 times ripple current)
- Reflow solderable, RoHS compliant, AEC-Q200 qualified
- Low ESR, high reliability, vibration proof
Buy the Vishay Series CRZ Aluminum Electrolytic Capacitors: MAL215099117E3
Upgrade your electronic design with the Vishay Series CRZ aluminum electrolytic capacitors. Designed for high temperature reflow soldering, these capacitors deliver low impedance, high ripple current, and extended life up to 10,000 hours at 105°C. Perfect for industrial, automotive, and telecommunication applications, they are RoHS compliant and qualified under AEC-Q200 standards. Available in various sizes, they ensure dependable performance, durability, and efficiency in demanding environments. Purchase online today and secure top-quality components for your projects.
Order your Vishay Series CRZ aluminum electrolytic capacitor today and enhance your circuits with high temperature resilience and reliable performance.
Frequently Asked Questions
Where can I buy Vishay MAL215099117E3?
You can click on the BUY or RFQ button to purchase MAL215099117E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL215099117E3?
You can download the MAL215099117E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL215099117E3?
Vishay
