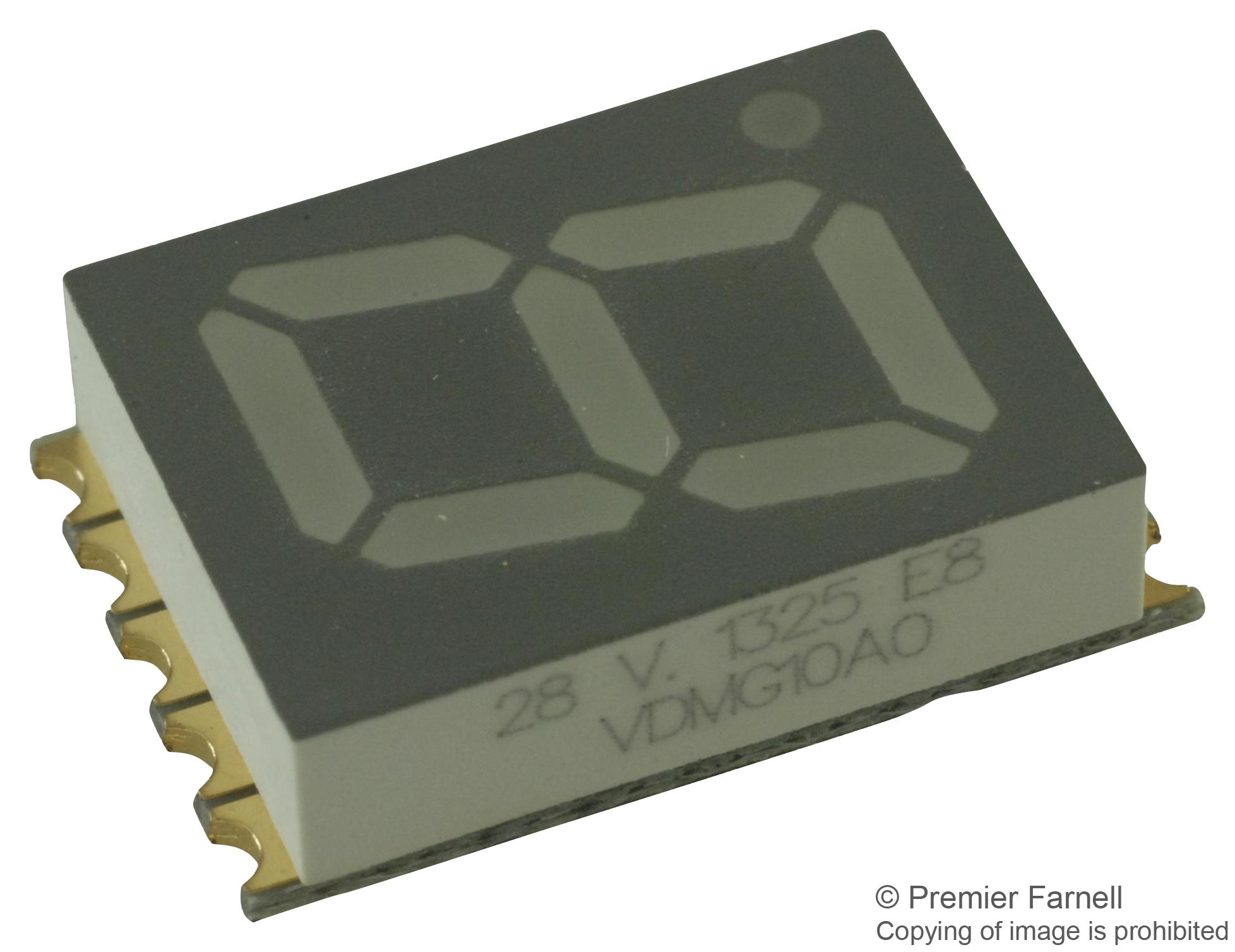

Vishay VDMG10A0 Green LED Display
The VDMG10A0 series are 10 mm Green LED seven-segment displays utilizing AllnGaP on GaAs technology. Designed for panel meters, test equipment, and control units, these displays feature evenly lighted segments, a wide viewing angle, and are RoHS compliant. Suitable for DC and high peak current applications, they offer reliable performance with a maximum forward current of 25 mA, operating temperature from -35°C to +105°C, and robust specifications for brightness and spectral wavelength. Ideal for compact indicator solutions in industrial and measurement equipment.
Vishay VDMG10A0 Green LED Display Specifications:
- Package: 10 mm
- Material: AllnGaP on GaAs
- Operating Temperature Range: -35°C to +105°C
- Forward Current: 25 mA
- Power Dissipation: 70 mW per segment
- Maximum Reverse Voltage: 100 V
- Luminous Intensity: 4400 cd (typical at 10 mA for green LEDs)
- Peak Emission Wavelength: 572 nm
- Dominant Wavelength: 572 nm
- Spectral Line Half-Width: 15 nm
- Viewing Angle: Wide at 50° half intensity
- Material Categorization: RoHS Compliant
- Soldering Conditions: Reflow at 260°C for 3 seconds, IR compatible at 300°C for 3 seconds
- Dimensions: 10 mm package, standard tape and reel packaging for automated placement
Buy the Vishay Series 7-Segment Green LED Display: VDMG10A0
Experience high-performance indication with the Green LED Display from Vishay's series of 10 mm SMD seven-segment displays. Ideal for panel meters, test and measurement equipment, and control units, this compact unit features evenly lighted segments, a broad viewing angle, and RoHS compliance. Designed for DC and high peak current applications, it provides reliable brightness and spectral quality with a peak emission at 572 nm. Easy to incorporate in compact industrial and electronic devices, order online today for dependable operation and optimal visibility.
Get Vishay VDMG10A0 today—built for long-lasting durability and precise indicator performance.
Frequently Asked Questions
Where can I buy Vishay VDMG10A0?
You can click on the BUY or RFQ button to purchase VDMG10A0 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VDMG10A0?
You can download the VDMG10A0 datasheet or visit the Vishay website for support.
Who is the manufacturer of VDMG10A0?
Vishay
