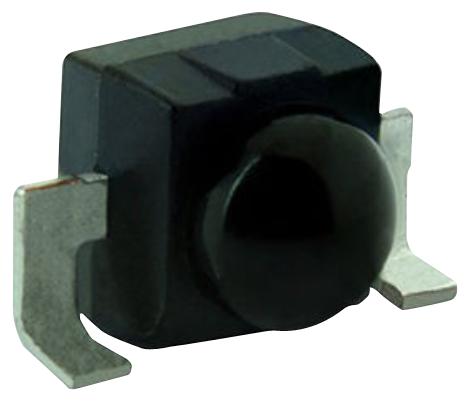

Vishay VEMD2023SLX01 Infrared Photodiode
VEMD2023SLX01 is a high-speed, highly sensitive PIN photodiode with a miniature side-looking surface mount package, dome lens, and daylight blocking filter. It operates at wavelengths from 830 nm to 950 nm, making it suitable for infrared remote control, data transmission, and photo interrupters. The device features a 0.23 mm² photo-sensitive area, high radiant sensitivity, and RoHS compliance. It is chosen for its fast response, broad spectral range, and reliable performance in various industrial and optical sensing applications.
Vishay VEMD2023SLX01 Infrared Photodiode Specifications:
- Package type: surface mount
- Dimensions: 2.3 x 2.55 x 2.3 mm
- Photo-sensitive area: 0.23 mm²
- Wavelength of peak sensitivity: 940 nm
- Spectral bandwidth: 750 to 1050 nm
- Rise time: 100 ns
- Fall time: 100 ns
- Reverse voltage: 60 V
- Power dissipation: 215 mW at 25°C
- Junction temperature: 100°C
- Operating temperature: -40°C to +100°C
- Storage temperature: -40°C to +100°C
- Soldering temperature: 260°C
- Thermal resistance junction-ambient: 250 K/W
- Floor life: 4 weeks, conditions: <30°C, RH <60%
- Moisture sensitivity level: 2a, J-STD-020
- RoHS compliant
- Package: tape and reel, MOQ: 3000 pcs
Buy the Vishay VEMD2023SLX01 – Reliable Infrared Photodiode for Industrial Applications
Purchase the Vishay VEMD2023SLX01 infrared photodiode online today to benefit from its high sensitivity, fast response time, and compact design. Perfect for infrared remote controls, data communications, and photo interrupters, this device offers reliable performance across a broad spectral range of 750 to 1050 nm. It features a surface mount package, RoHS compliance, and a 4-week floor life with moisture-resistant packaging. Order now for quick delivery and ensure your projects succeed with industry-leading optical detection technology.
Order your Vishay VEMD2023SLX01 infrared photodiode today and enhance your optical sensing projects with high speed and sensitive detection capabilities.
Frequently Asked Questions
Where can I buy Vishay VEMD2023SLX01?
You can click on the BUY or RFQ button to purchase VEMD2023SLX01 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VEMD2023SLX01?
You can download the VEMD2023SLX01 datasheet or visit the Vishay website for support.
Who is the manufacturer of VEMD2023SLX01?
Vishay
