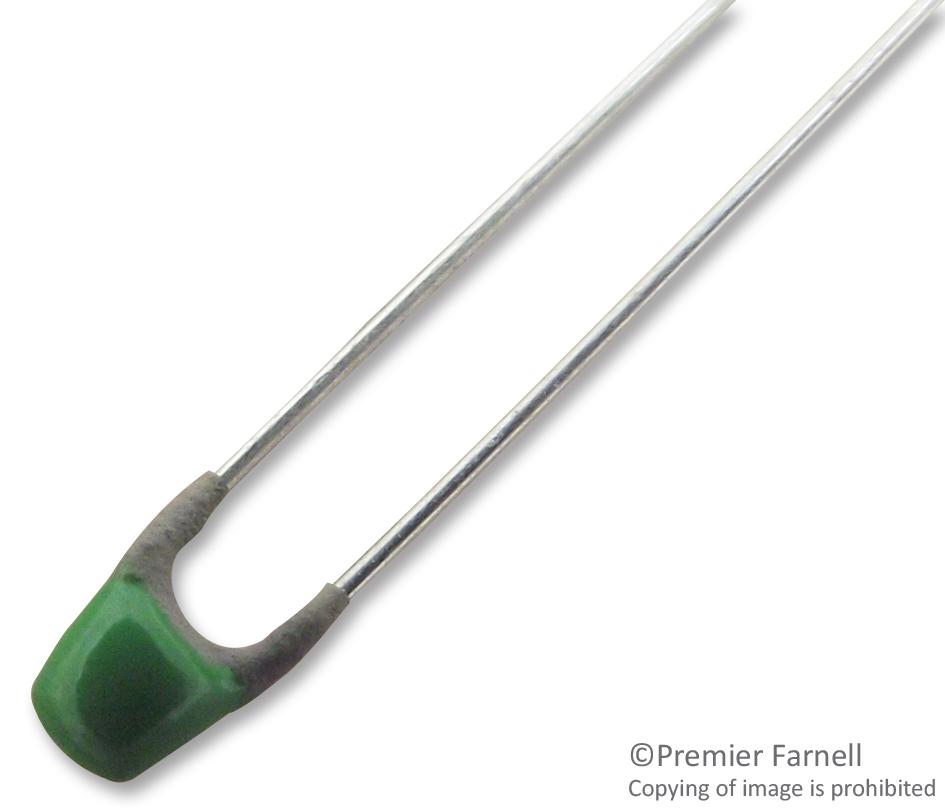

Vishay NTCLE203E3472FB0A NTC Thermistor
These are precision NTC thermistors with radial leads, designed for accurate temperature sensing in industrial, consumer, and telecom applications. Made of ceramic material with consistent B-value and resistance at 25°C, they feature excellent long-term stability and reliability. Their compact, coated design allows easy mounting by soldering in various positions, suitable for on-board or remote sensing. Recognized under cULus standards, they offer low heat conductivity with RoHS compliance, making them ideal for temperature control, measurement, and sensing in diverse electronic systems.
Vishay NTCLE203E3472FB0A NTC Thermistor Specifications:
- Resistance value at 25°C: 4700 Ω
- Tolerance: 0.75 %
- B-value: 3977 K
- Operating temperature range: -40°C to +125°C
- Maximum power dissipation: 700 mW at 55°C
- Response time: 17 seconds in silicone oil
- Thermal time constant: 13 seconds
- Material: Ceramic NTC with nickel leads
- Mounting: Soldering, radial configuration
- RoHS compliant, cULus recognized, File E148885
- Dimensions: Diameter approx. 3.6 mm, length approx. 6.0 mm
- Color band marking for identification
- Packaged in boxes of 500 units, tape and reel available
- Designed for accurate temperature sensing and control applications
Buy the Buy Vishay NTC Thermistor Part Number NTCLE203E3472FB0A Online
Purchase the Vishay NTCLE203E3472FB0A thermistor online now to benefit from precise temperature measurement and control in your electronic designs. This high-quality NTC thermistor offers excellent long-term stability, low heat conductivity, and RoHS compliance, making it perfect for industrial, consumer, and telecom applications. Its radial lead configuration allows easy mounting, ensuring consistent performance and durability. Get competitive prices and fast delivery by ordering today, and ensure your projects meet the highest standards of reliability and accuracy for temperature sensing needs.
Order your Vishay Series NTCLE203E3472FB0A thermistor today and enhance your temperature sensing projects with reliable, high-accuracy performance.
Frequently Asked Questions
Where can I buy Vishay NTCLE203E3472FB0A?
You can click on the BUY or RFQ button to purchase NTCLE203E3472FB0A from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part NTCLE203E3472FB0A?
You can download the NTCLE203E3472FB0A datasheet or visit the Vishay website for support.
Who is the manufacturer of NTCLE203E3472FB0A?
Vishay
